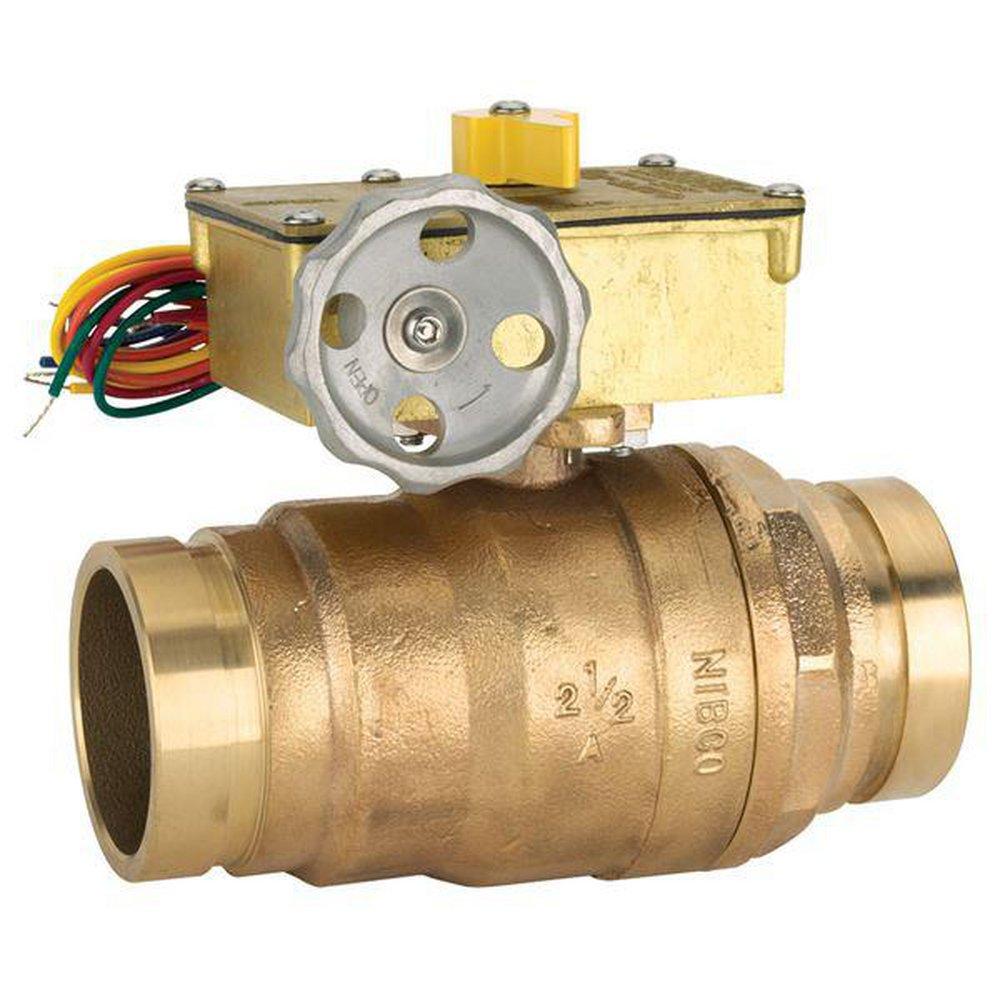

2 in. Bronze Full Port Grooved 300# Ball Valve
NIBCO
KG-505-W-8 2 in. Bronze Full Port Grooved 300# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 4 Pallet: 80
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
NIBCO
KG-505-W-8
2 in. Bronze Full Port Grooved 300# Ball Valve
NG93X7D
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Standard port 2-1/2"
- Conforms to MSS SP-110
- Grooved end connections
- 300 psi/20.7 bar non-shock water working pressure (WWP)
- Full port 2"
- Blowout-proof stem
- Multi-turn actuator
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
-
Not Compliant, Approved for Non-Potable Water Applications
Specifications
- ASTM:
- ASTM B-124 C37700, ASTM B-371 C69430, ASTM B-584 C84400
- Clean Bagged:
- No
- Collection:
- KG-505-W-8
- End Connection 1:
- Grooved
- End Connection 2:
- Grooved
- End Connections:
- Grooved x Grooved
- FM Approved:
- Yes
- Handle Material:
- Steel
- Height:
- 4-67/100 in
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- Length:
- 6-33/100 in
- MSS:
- MSS SP-110
- Material:
- Bronze
- Maximum Temperature:
- 100
- NSF Certified:
- No
- Pressure - High:
- 300
- Pressure Class:
- 300#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Recommended Valve Application:
- Water
- UL Listed:
- Yes
- UPC:
- 039923642530
- Valve Body Style:
- 2 piece
- Valve Disc Material:
- Chrome Plated Brass
- Valve Operator:
- Hand Wheel
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Carbon Filled PTFE
- Valve Size:
- 2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 10.7 lb
