6 in. Grooved Check Valve with Buna-N and Nitrile Valve Seat

NIBCO

KG-900-W-LF 6 in. Grooved Check Valve with Buna-N and Nitrile Valve Seat

  • Fast #
  • Part #NKG900WLFU
  • Item #4472918
  • Manufacturer Part #NLM25XK
5 out of 5 Customer Rating
Brand image

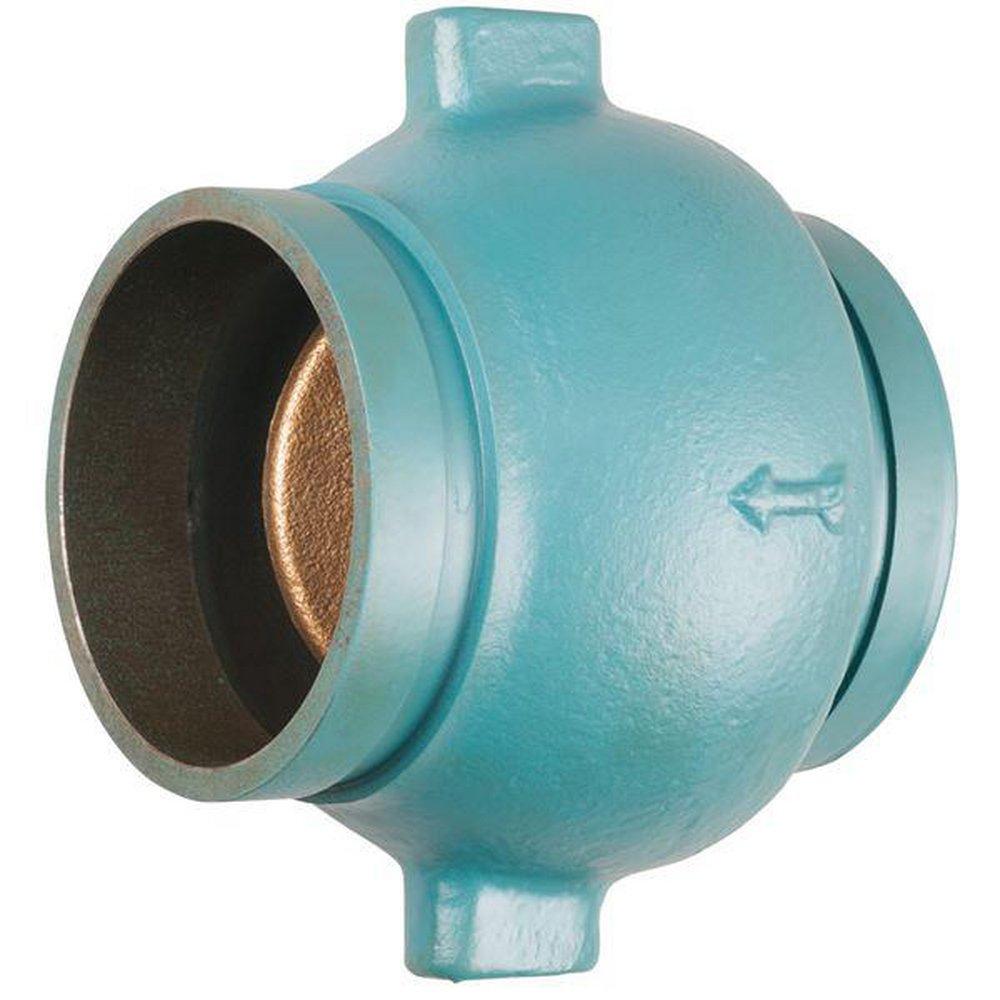

NIBCO Grooved Check Valve with Buna-N and Nitrile Valve Seat
NIBCO Grooved Check Valve with Buna-N and Nitrile Valve Seat
NIBCO

KG-900-W-LF 6 in. Grooved Check Valve with Buna-N and Nitrile Valve Seat

  • Fast #
  • Part #NKG900WLFU
  • Item #4472918
  • Manufacturer Part #NLM25XK
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 48
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Bronze spring cage
  • Diaphragm isolated spring chamber
  • Extremely high capacity
  • Directive 97/23/EC (PED) compliant option
  • Made in the USA
  • Sizes: 3/4" - 2" (20 - 50mm)
  • ASME Section IV Certified Capacity
  • Corrosion resistant construction
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372, ANSI C606
ASTM:
ASTM A-240, ASTM A-276, ASTM A-313, ASTM A-536 Grade 65-45-12, ASTM B-584 C87600
AWWA:
AWWA C-606
Collection:
KG-900-W-LF
End Connection 1:
Grooved
End Connection 2:
Grooved
End Connections:
Grooved
FM Approved:
Yes
Height:
8-13/100 in
IAPMO Listed:
No
Installation Type:
Horizontal Mount, Vertical Mount
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
6 in
Material:
Ductile Iron, Bronze, Rubber
Material Type:
Buna-N, Nitrile
Maximum Temperature:
180
NSF:
NSF 372
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
250
Pressure Class:
250#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Cold Working Pressure, Commercial, Fire Protection, Industrial, Mechanical
UL Listed:
Yes
UPC:
039923327772
Valve Body Material:
Ductile Iron
Valve Body Style:
Grooved
Valve Disc Material:
Bronze
Valve Operator:
Spring Actuated
Valve Seat Material:
Buna-N, Nitrile
Valve Size:
6 in
Valve Type:
Silent Check Valve
Weight:
18 lb
