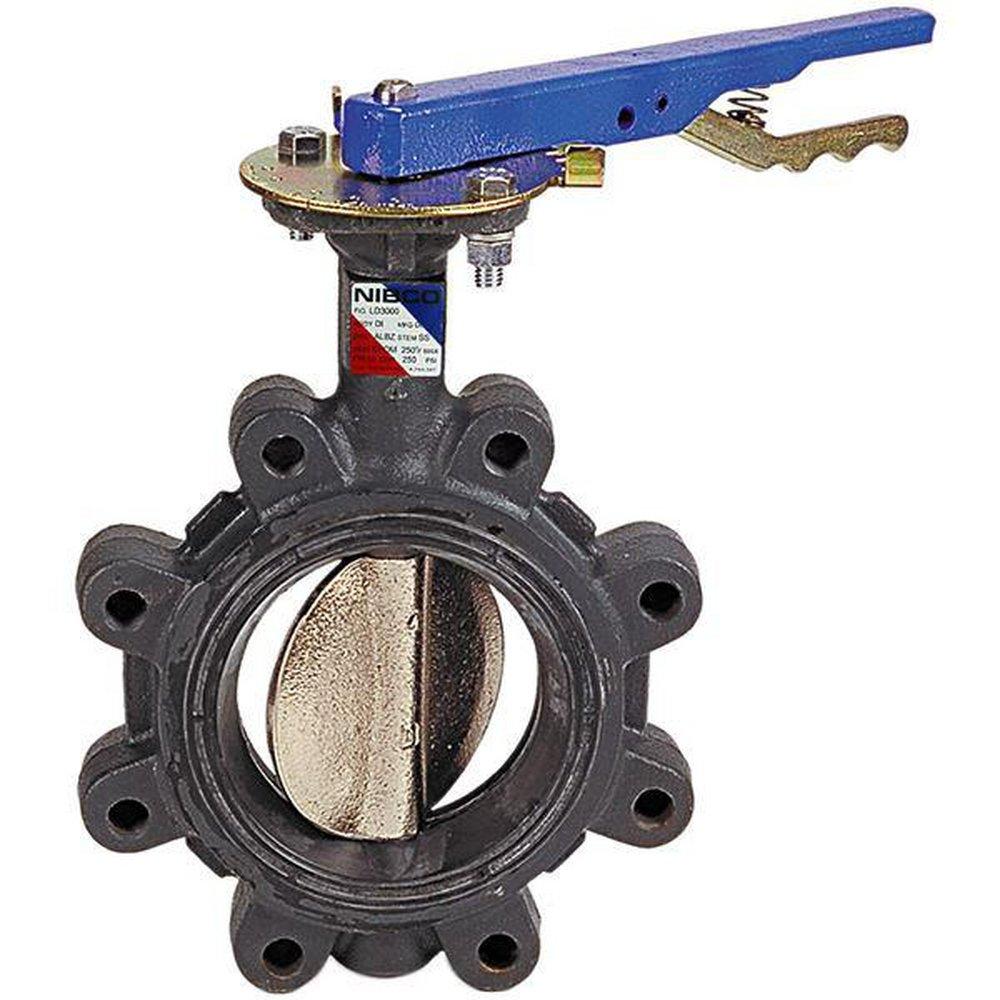

4 in. Ductile Iron Buna-N Locking Lever Handle Butterfly Valve
NIBCO
LD-2100 Series 4 in. Ductile Iron Buna-N Locking Lever Handle Butterfly Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 80Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
LD-2100 Series
4 in. Ductile Iron Buna-N Locking Lever Handle Butterfly Valve
NLG150H
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Geometric drive
- End of line service at 200 psi with no downstream flange
- Buna-N molded-in seat liner
- Valve pressure rating 200 psi
- Lug style
- Stainless steel stem with copper bushings
- Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
- Not recommended for steam service
Dimensions & Measurements
End Connection 1
Lug
End Connection 2
Lug
End Connections
Lug
Length
2-9/50 in
Pressure Class
200#
Valve Size
4 in
Characteristics & Features
Collection
LD-2100 Series
Material
Ductile Iron, Aluminum Bronze, Rubber
Material Type
Buna-N
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Ductile Iron
Valve Body Style
Lug
Valve Disc Material
Aluminum Bronze
Valve Operator
Locking Lever Handle
Valve Seat Material
Buna-N
Valve Type
Butterfly Valve
Warranty & Product Information
ANSI
ANSI 372
ASME
ASME Class 125, ASME Class 150
ASTM
ASTM A536, ASTM A582 Type 416, ASTM B16, ASTM B148
AWWA
AWWA C-115
FM Approved
No
MSS
MSS SP-25, MSS SP-67
NSF
NSF 372
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Air, Water, Oil
UL Listed
No
UPC
039923720382
