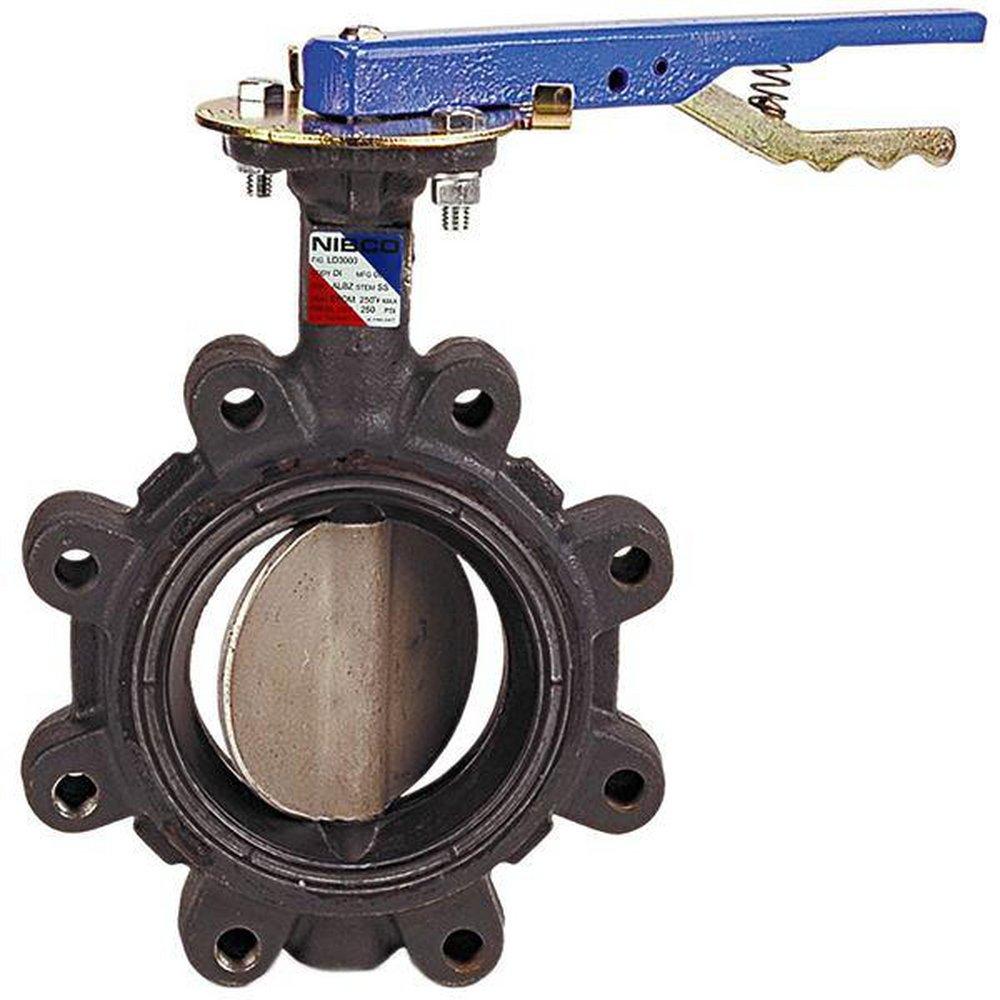

6 in. Ductile Iron EPDM Gear Operator Handle Butterfly Valve
NIBCO
LD-3022 Series 6 in. Ductile Iron EPDM Gear Operator Handle Butterfly Valve
Purchase history
NIBCO
LD-3022 Series
6 in. Ductile Iron EPDM Gear Operator Handle Butterfly Valve
NLG244K
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Lug style
- Stainless steel stem with stainless steel bushings
- Extended neck
- Not recommended for steam service
- EPDM molded-in seat liner
- Lug style with optional liner and CF8M disc
- Valve pressure rating 250 psi
- 225°F continuous and 250°F intermittent service
- Geometric drive
- Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
Dimensions & Measurements
End Connection 1
Lug
End Connection 2
Lug
End Connections
Lug
Height
13-29/100 in
Length
2-31/100 in
Pressure Class
250#
Valve Size
6 in
Width
6-13/100 in
Characteristics & Features
Clean Bagged
No
Collection
LD-3022 Series
Material
Ductile Iron, Rubber, Stainless Steel
Material Type
EPDM
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Ductile Iron
Valve Body Style
Lug
Valve Disc Material
Stainless Steel
Valve Operator
Gear Operator
Valve Seat Material
EPDM
Valve Type
Butterfly Valve
Warranty & Product Information
ANSI
ANSI 61, ANSI 372
ASME
ASME Class 125, ASME Class 150
ASTM
ASTM A276 Type 316, ASTM A536, ASTM A564, ASTM A743
FM Approved
No
IAPMO Listed
No
MSS
MSS SP-25, MSS SP-67
NSF
NSF 372, NSF 61
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Chemical
UL Listed
No
UPC
039923725707
