12 in. 250 psi Ductile Iron Lug Butterfly Valve Gear Operator Switch

NIBCO

LD-3510 Series 12 in. 250 psi Ductile Iron Lug Butterfly Valve Gear Operator Switch

  • Fast #
  • Part #NLD3510812
  • Item #1282371
  • Manufacturer Part #NLG801N
3.1 out of 5 Customer Rating
Brand image

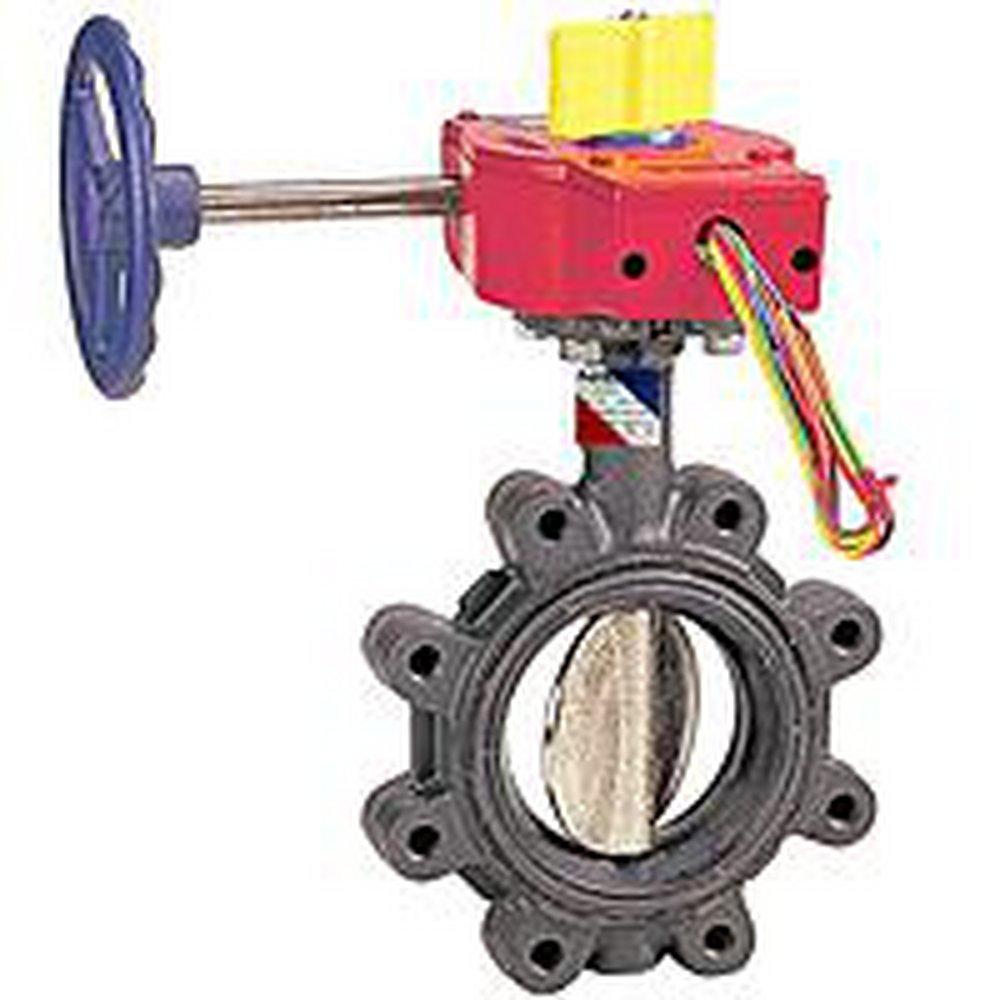

NIBCO Ductile Iron Flanged EPDM Seat Gear Operator Butterfly Valve
NIBCO Ductile Iron Flanged EPDM Seat Gear Operator Butterfly Valve
NIBCO

LD-3510 Series 12 in. 250 psi Ductile Iron Lug Butterfly Valve Gear Operator Switch

  • Fast #
  • Part #NLD3510812
  • Item #1282371
  • Manufacturer Part #NLG801N
3.1 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 6
Log in or Create an Account to see product availability.

Product Details

Product Details

  • The NIBCO® lug type butterfly valve is classified as a fire protection control valve that is Underwriters Laboratories listed and FM Approved for bubble-tight shutoff at 250 psi water working pressure
  • The NIBCO® ductile iron butterfly valve is designed specifically to meet the rigorous requirements of automatic sprinkler systems
  • The unique EPDM molded-in seat liner with ductile iron disc provides bubble-tight shutoff at rated pressure. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway
  • An extended neck allows for insulation up to 2 in
  • Stainless steel stem with copper bushings
  • Gear operator with switches
  • Requires Certification

Specifications

ANSI:
ANSI 372
ASTM:
ASTM A395, ASTM A536, ASTM A582 Type 416, ASTM B124
Collection:
LD-3510 Series
End Connection 1:
Lug
End Connection 2:
Lug
End Connections:
Lug
FM Approved:
Yes
Height:
26-1/4 in
ISO:
ISO 9001
Length:
2-4/25 in
MSS:
MSS SP-25, MSS SP-67
Material:
Ductile Iron, Rubber
Material Type:
EPDM
NSF:
NSF 372
NSF Certified:
Yes
Origin:
Domestic
Pressure Class:
250#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Cold Water
UL Listed:
Yes
UPC:
039923732736
Valve Body Material:
Ductile Iron
Valve Body Style:
Lug
Valve Disc Material:
Ductile Iron
Valve Operator:
Gear Operator
Valve Seat Material:
EPDM
Valve Size:
12 in
Valve Stem:
Non-rising
Valve Type:
Butterfly Valve
