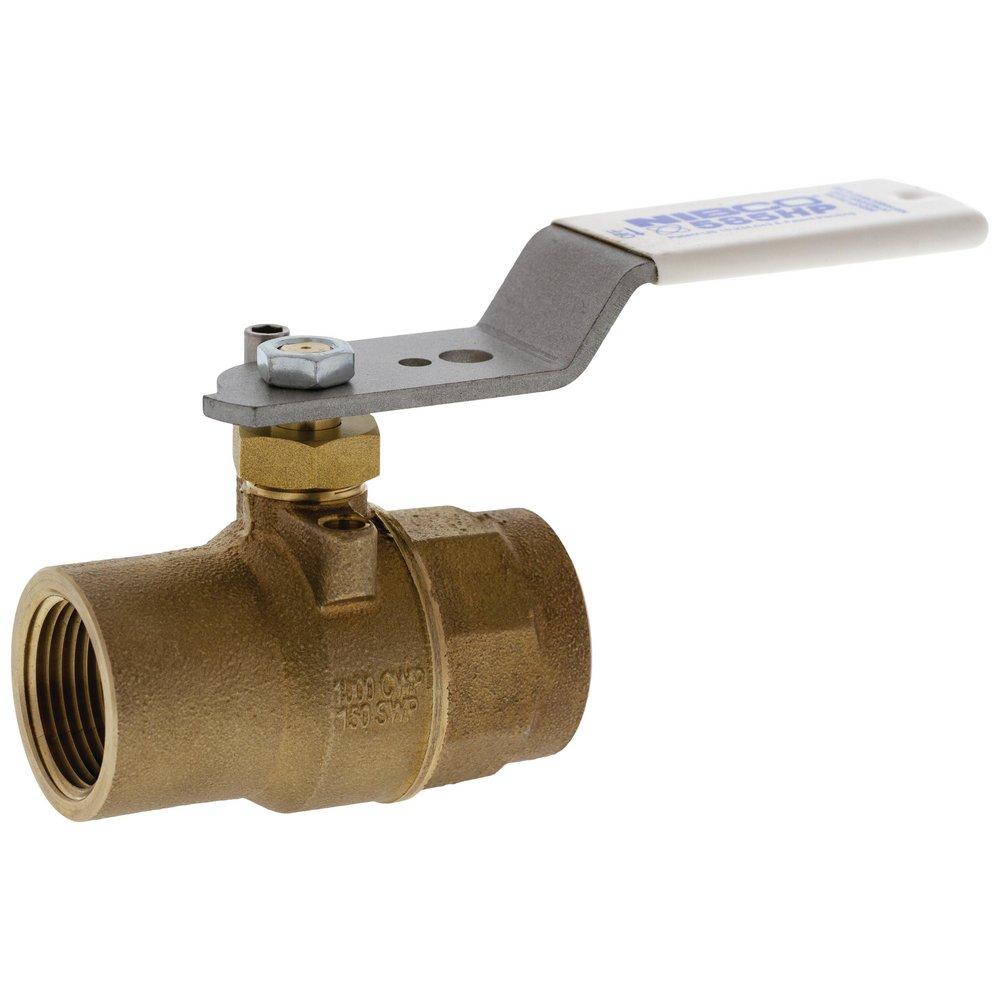

4 in Bronze Full Port Threaded Ball Valve

NIBCO

Lead-Free Ball Valves 4 in Bronze Full Port Threaded Ball Valve

  • Fast #
  • Part #NT585HP66LFP
  • Item #11784151
  • Manufacturer Part #HP95HXH
4.3 out of 5 Customer Rating
Brand image
T-585HP-66-LF 4 THREADED 3F 2PC FULL PORT BV
T-585HP-66-LF 4 THREADED 3F 2PC FULL PORT BV
NIBCO

Lead-Free Ball Valves 4 in Bronze Full Port Threaded Ball Valve

  • Fast #
  • Part #NT585HP66LFP
  • Item #11784151
  • Manufacturer Part #HP95HXH
4.3 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Pallet: 18
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Wilson, NC
    0 nearby
    Pick Up  Not Available
    Not available in NC
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in NC

Product Details

Product Details

  • Valve pressure rating 1,000 psi 69 bar non-shock cold working pressure
  • 150 psi/10 Bar Steam Working Pressure
  • Maximum temperature rating 300°F
  • Full port
  • Laser Welded
  • Reversible Handle
  • Easily Adjustable Pack Nut
  • Triple Sealed Stem
  • Silicon Performance Bronze® Body
  • Stainless steel ball and stem
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 61, ANSI 372, ANSI Z1157
ASME:
ASME A112.4.14
ASTM:
ASTM A-276 S31600, ASTM C-69300, ASTM B-16 C36000, ASTM B-584 C87500
CSA Certified:
CSA B125.14
Clean Bagged:
No
Collection:
Lead-Free Ball Valves
End Connection 1:
Threaded
End Connection 2:
Threaded
End Connections:
Threaded
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Carbon Steel
Height:
5-13/25
IAPMO Listed:
No
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
16-1/100
MSS:
MSS SP-110, MSS SP-145
Material:
Silicon Bronze
Material Type:
C87500
Maximum Temperature:
180
Minimum Temperature:
-20
NSF:
NSF-61, NSF-372
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
600
Pressure - Maximum:
600 psi
Pressure Class:
600#
Proposition 65:
WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV.
Recommended Valve Application:
Potable Water
Temperature Range:
-20 to 180 Deg F
Type:
NT585HP66LFP
UL Listed:
No
UPC:
039923430236
Valve Body Material:
Bronze
Valve Body Style:
Ball
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Reinforced PTFE
Valve Size:
4 in
Width:
6-73/100
cUPC Certified:
Yes
