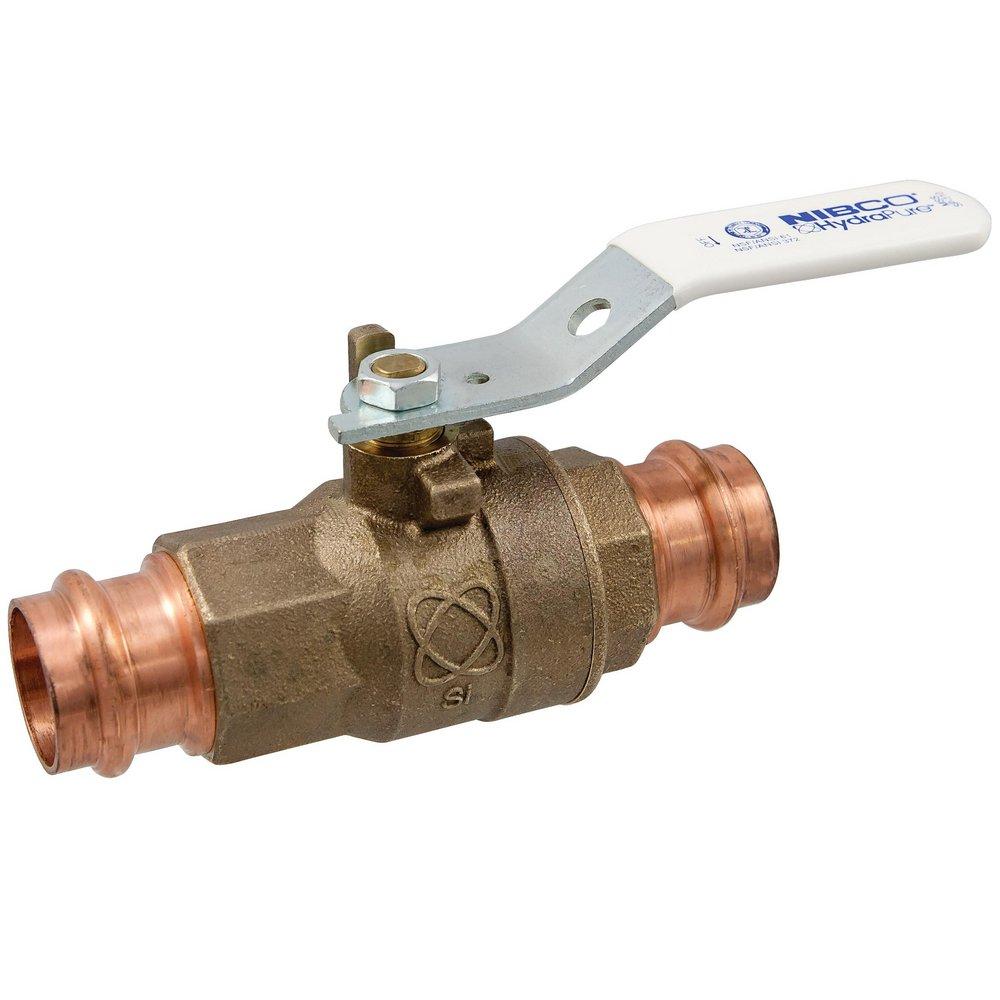

1-1/2 in Silicon Bronze Full Port Press Ball Valve

You last purchased this on

NIBCO

PC-585-66-LF 1-1/2 in Silicon Bronze Full Port Press Ball Valve

  • Fast #
  • Part #NPC58566LFJ
  • Item #10354344
  • Manufacturer Part #NFB84HXC
3.9 out of 5 Customer Rating
Brand image
LF 1-1/2 PRESS BV PXP SS TRIM
You last purchased this on

NIBCO

PC-585-66-LF 1-1/2 in Silicon Bronze Full Port Press Ball Valve

  • Fast #
  • Part #NPC58566LFJ
  • Item #10354344
  • Manufacturer Part #NFB84HXC
3.9 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 3 Case: 6
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • Dezincification resistant
  • Leak detection feature
  • Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
  • Maximum service temperature 250°F
  • Copper-to-copper connections
  • Full port
  • Blowout-proof stem
  • Press x press female end connections
  • Press leak-detection feature
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372-8, ANSI 61, ANSI Z1157
ASME:
ASME A112.4.14
ASTM:
ASTM A276, ASTM B16, ASTM B584, ASTM B75
CSA Certified:
CSA B125.14
Clean Bagged:
No
Collection:
PC-585-66-LF
Color Finish Name:
Bronze
Depth:
10-53/100 in
End Connection 1:
Press
End Connection 2:
Press
End Connections:
Press
Handle Material:
Zinc Plated Steel
Handle Type:
Lever
Height:
2-21/25 in
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
10-53/100 in
MSS:
MSS SP-110
Material:
Silicon Bronze
Maximum Temperature:
250
Minimum Temperature:
-20
NSF:
NSF 372-8, NSF 61
NSF Certified:
Yes
Number of Pieces:
2 Piece
Origin:
Domestic
Pressure - High:
250
Pressure Class:
250#
Recommended Valve Application:
Residential, Commercial
Temperature Range:
-20 to 250 Deg F
Temperature Rating:
250
Valve Body Material:
Silicon Bronze
Valve Body Style:
2 piece
Valve Disc Material:
Stainless Steel
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Reinforced PTFE
Valve Size:
1-1/2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
5.279 lb
Width:
4-18/25 in
