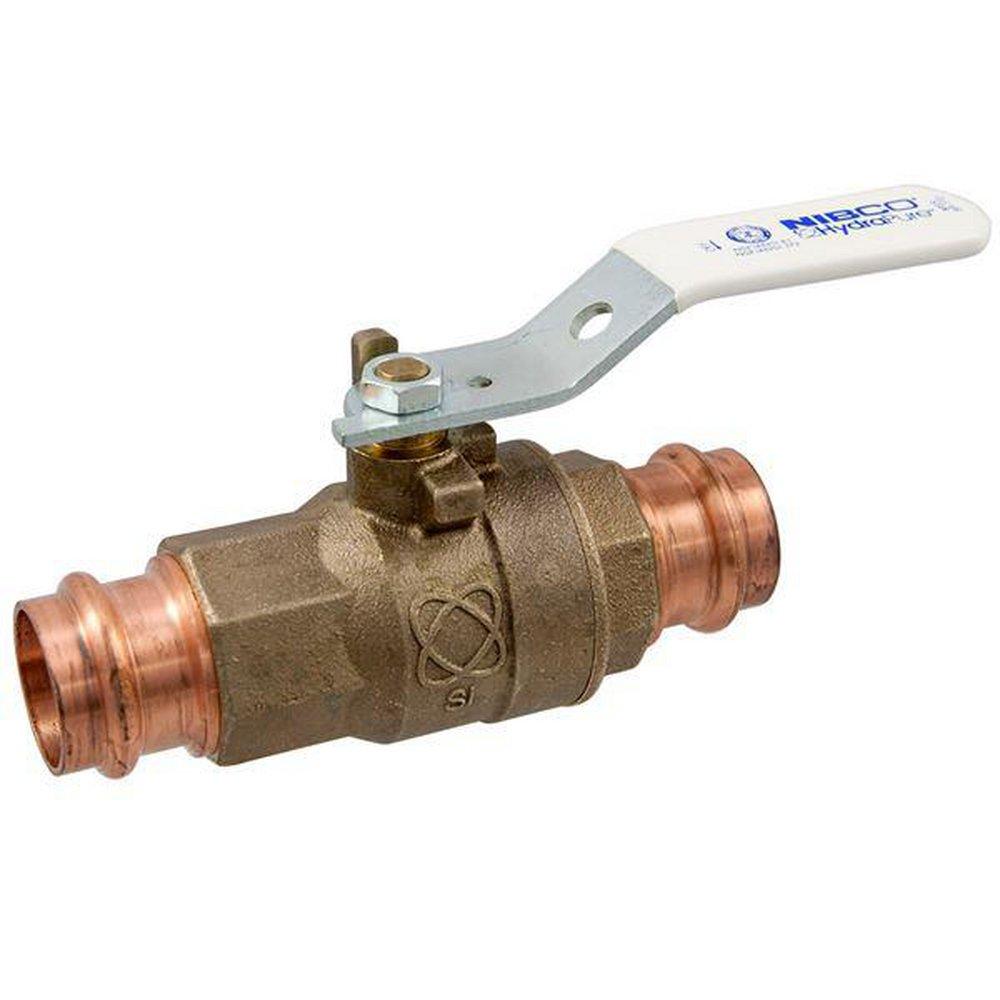

1-1/2 in. Silicon Bronze Full Port Press 250# Ball Valve
NIBCO
PC-585-66-LF 1-1/2 in. Silicon Bronze Full Port Press 250# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 3 Case: 6 Pallet: 108Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
PC-585-66-LF
1-1/2 in. Silicon Bronze Full Port Press 250# Ball Valve
NFB84HNC
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Press x press female end connections
- Blowout-proof stem
- Stainless steel trim
- Press leak-detection feature
- Dezincification resistant
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- Maximum service temperature 250°F
- Copper-to-copper connections
- Full port
- Reinforced PTFE seat rings
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Pressure Class
250#
Pressure - Maximum
250 psi
Valve Size
1-1/2 in
Weight
5.53 lb
Characteristics & Features
Collection
PC-585-66-LF
Handle Material
Zinc Plated Steel
Material
Silicon Bronze
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Style
2 piece
Valve Operator
NIB-SEAL Handle
Valve Port Opening
Full Port
Valve Seat Material
Reinforced PTFE
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
250
Warranty & Product Information
ANSI
ANSI 61, ANSI 372-8, ANSI Z1157
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110, MSS SP-145
NSF
NSF 372, NSF 61-8
NSF Certified
Yes
Recommended Valve Application
Potable Water
UL Listed
No
UPC
039923447838
