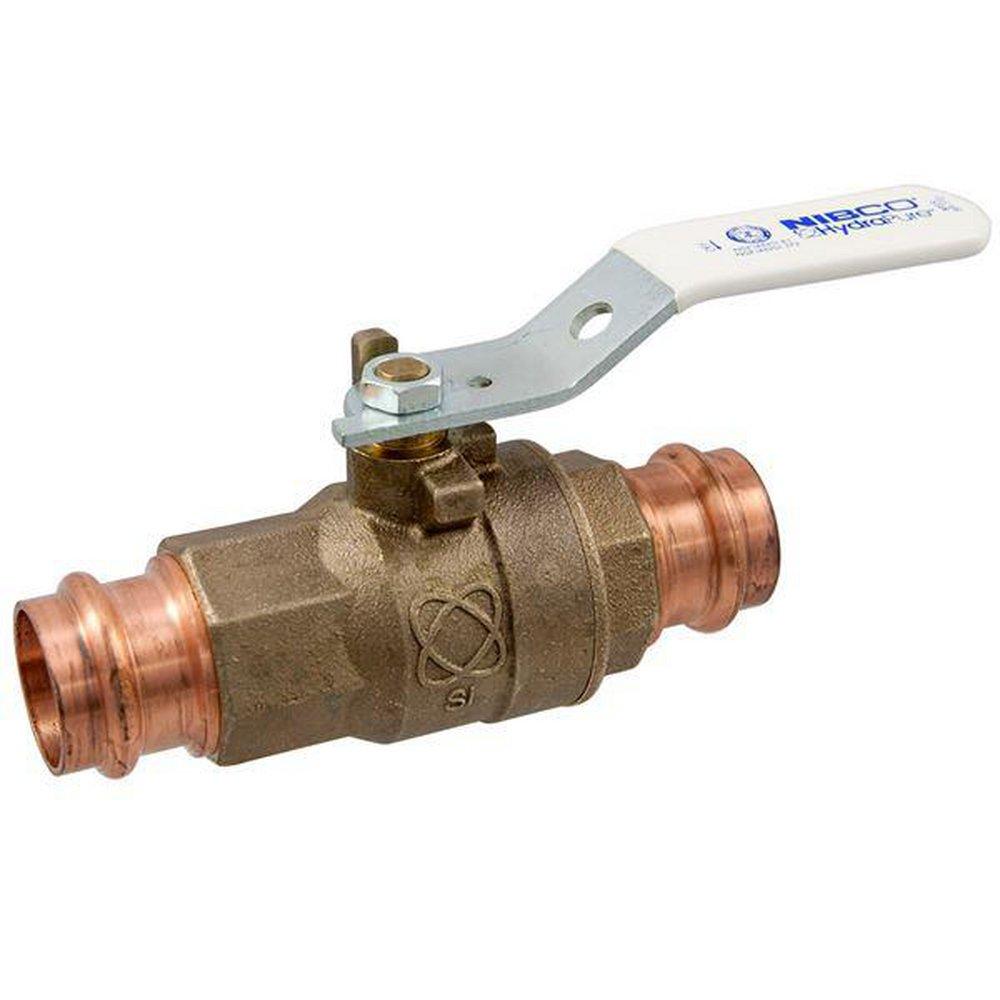

1/2 in. Silicon Bronze Full Port Press 225# Ball Valve
You last purchased this on
NIBCO
PC-585-80-LF 1/2 in. Silicon Bronze Full Port Press 225# Ball Valve
Purchase history
NIBCO
PC-585-80-LF
1/2 in. Silicon Bronze Full Port Press 225# Ball Valve
NFB842X6
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
- Blowout-proof stem
- Press leak-detection feature
- Multiple handle options, including NIB-Seal
- Full port
- Maximum service temperature 250°F
- Copper-to-copper connections
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- Dezincification resistant
- Press x press female end connections
- Reinforced PTFE seat rings
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 61, ANSI 372-8, ANSI Z11157
- Collection:
- PC-585-80-LF
- Color Finish Category:
- Greys
- Color Finish Name:
- Grey
- End Connection 1:
- Press
- End Connection 2:
- Press
- End Connections:
- Press
- FM Approved:
- No
- Handle Material:
- Zinc Plated Steel
- Height:
- 1-24/25 in
- IAPMO Listed -:
- Yes
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- MSS:
- MSS SP-110
- Material:
- Silicon Bronze
- Material Type:
- DZR
- Maximum Temperature:
- 250
- NSF:
- NSF 61, NSF 372
- NSF Certified:
- Yes
- Pressure - Maximum:
- 225 psi
- Pressure Class:
- 225#
- UL Listed:
- No
- Valve Body Style:
- 2 piece
- Valve Operator:
- NIB-SEAL® Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Reinforced PTFE
- Valve Size:
- 1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 1.050 lb
