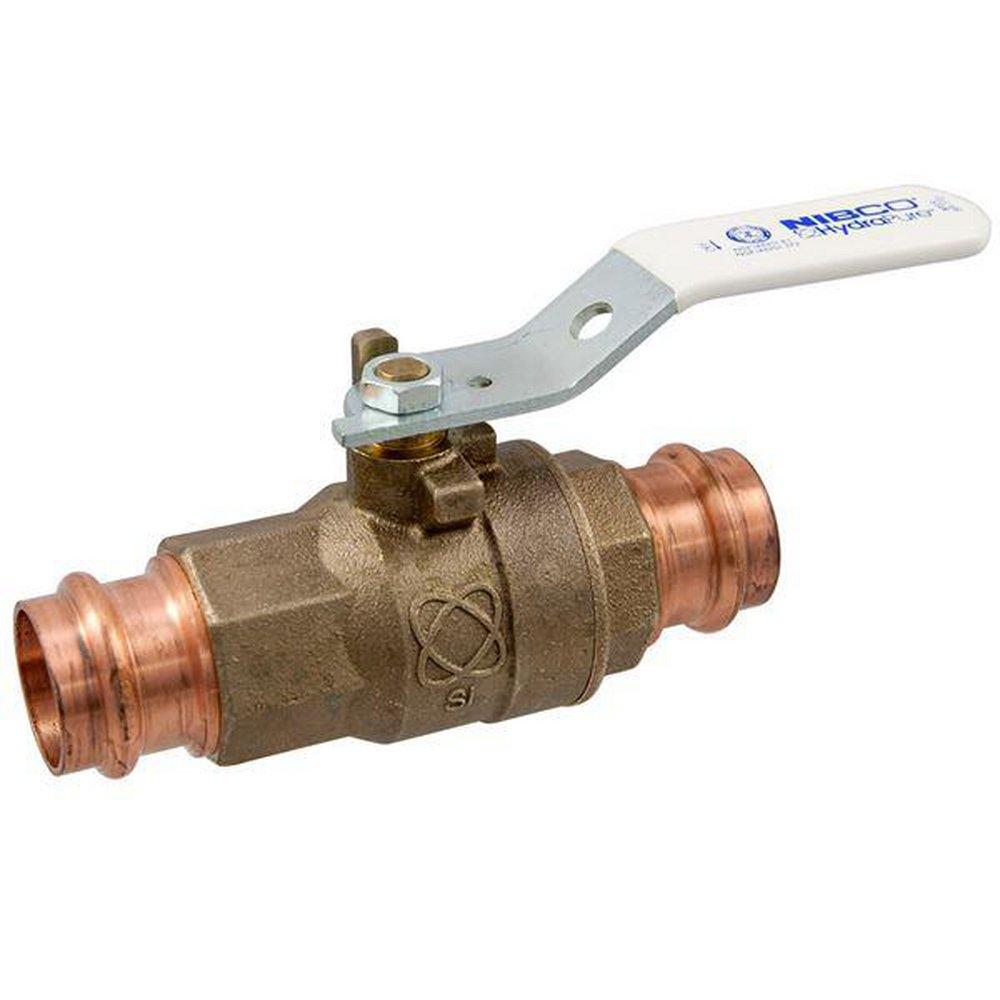

1-1/2 in. Silicon Bronze Full Port Press 225# Ball Valve
NIBCO
PC-585-80-LF 1-1/2 in. Silicon Bronze Full Port Press 225# Ball Valve
Purchase history
NIBCO
PC-585-80-LF
1-1/2 in. Silicon Bronze Full Port Press 225# Ball Valve
NFB840XC
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- Multiple handle options, including NIB-Seal
- Blowout Proof Stem
- Full port
- Dezincification resistant
- Maximum service temperature 250°F
- Copper-to-copper connections
- Reinforced PTFE seat rings
- Press x press female end connections
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 61, ANSI 372-8, ANSI Z1157
- Collection:
- PC-585-80-LF
- End Connection 1:
- Press
- End Connection 2:
- Press
- End Connections:
- Press
- Handle Material:
- Zinc Plated Steel
- Height:
- 3-8/25 in
- IAPMO Listed:
- Yes
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- MSS:
- MSS SP-110
- Material:
- Silicon Bronze
- Material Type:
- DZR
- Maximum Temperature:
- 250
- NSF:
- NSF 61, NSF 372-8
- NSF Certified:
- Yes
- Pressure - High:
- 225
- Pressure Class:
- 225#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Valve Body Style:
- 2 piece
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Reinforced PTFE
- Valve Size:
- 1-1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 5.53 lb
