3/4 in. DZR Silicon Bronze Full Port Press x Hose 250# Ball Valve

You last purchased this on

NIBCO

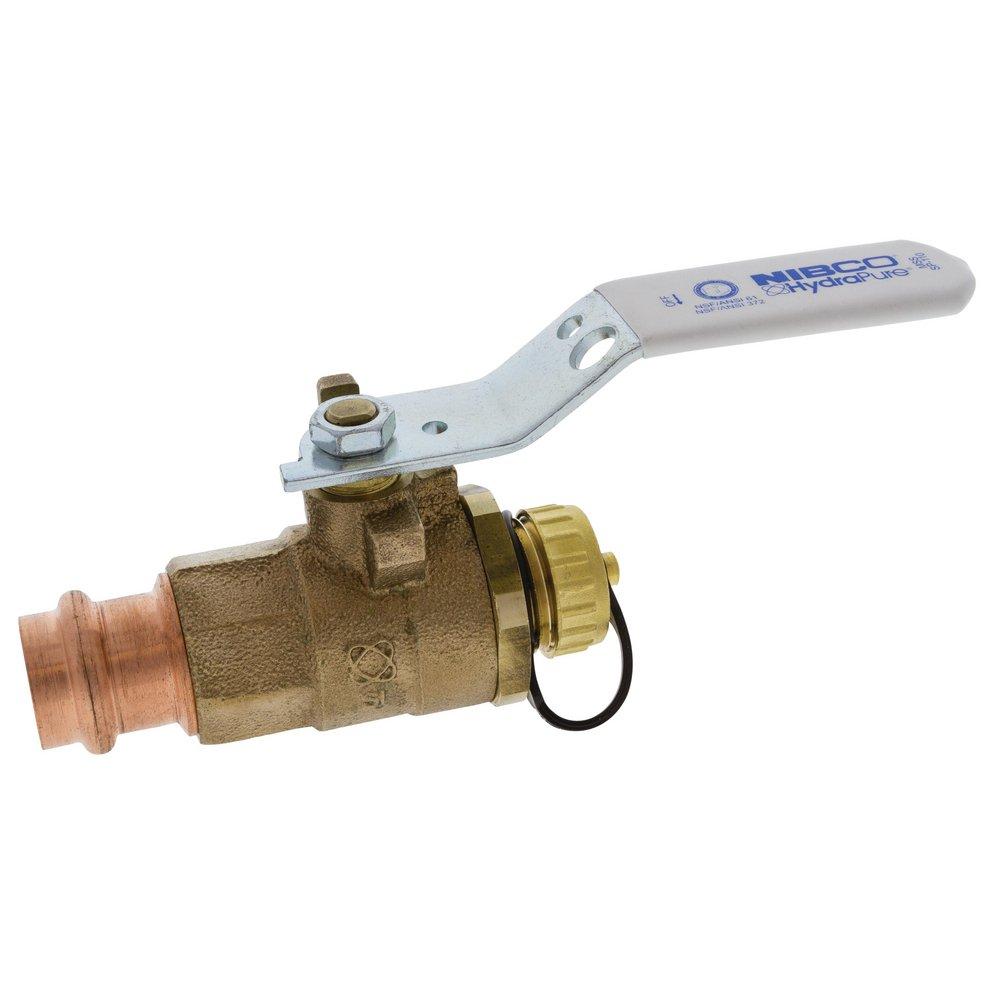

PC-585-80-LF-HC 3/4 in. DZR Silicon Bronze Full Port Press x Hose 250# Ball Valve

  • Fast #
  • Part #NPC58580LFHCF
  • Item #4839756
  • Manufacturer Part #NFB843X8
3.9 out of 5 Customer Rating
Brand image
You last purchased this on

NIBCO

PC-585-80-LF-HC 3/4 in. DZR Silicon Bronze Full Port Press x Hose 250# Ball Valve

  • Fast #
  • Part #NPC58580LFHCF
  • Item #4839756
  • Manufacturer Part #NFB843X8
3.9 out of 5 Customer Rating

X Points

Package Quantity Info:

Each: 1 Inner Pack: 10 Case: 10 Pallet: 600
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
  • Maximum service temperature 250°F
  • Copper-to-copper connections
  • Full port
  • Blowout-proof stem
  • Reinforced PTFE seat rings
  • Press x press female end connections
  • Press leak-detection feature
  • Multiple handle options, including NIB-Seal®
  • Dezincification resistant
  • Requires Certification
  • Lead Law Compliant


Specifications

ANSI:
ANSI 372, ANSI 61, ANSI Z1157
ASTM:
ASTM B-16, ASTM B-283, ASTM B-371, ASTM B-584, ASTM B75
Clean Bagged:
No
Collection:
PC-585-80-LF-HC
Color Finish Name:
Bronze
Depth:
7-7/25 in
End Connection 1:
Press
End Connection 2:
GHT
End Connections:
Press x GHT
FM Approved:
No
Handle Material:
Zinc Plated Steel
Handle Type:
Lever
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
4-8/25 in
MSS:
MSS SP-110, MSS SP-145
Material:
Bronze, Plastic, Steel
Material Type:
RPTFE
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
250
Pressure Class:
250#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Potable Water
UL Listed:
No
Valve Body Material:
Bronze
Valve Body Style:
2 piece
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Reinforced PTFE
Valve Size:
3/4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
1.7 lb
Width:
1-3/4 in
cUPC Certified:
Yes
