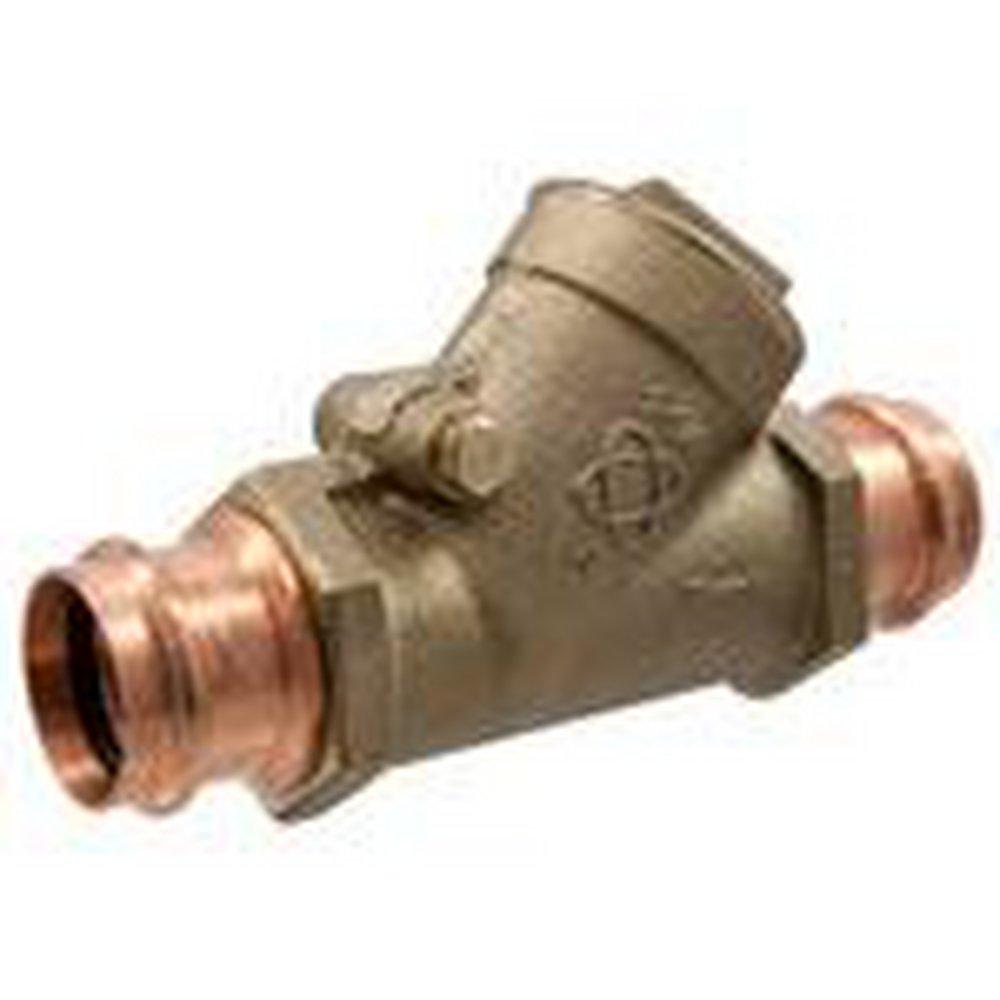

1 in. Bronze Press Swing Check Valve
NIBCO
PF-413-Y-LF 1 in. Bronze Press Swing Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 25 Pallet: 750Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
PF-413-Y-LF
1 in. Bronze Press Swing Check Valve
NF7400XA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Valve pressure rating 200 psi/13.8 bar non-shock cold working pressure
- Y-pattern
- Renewable seat and disc
- Regrinding type
- Nibco® double-oval lead-free body marking
- Lead-free
- Dimensions and workmanship conform to MSS SP-80
- NSF/ANSI/CAN-61 and 372
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Length
3-97/100 in
Pressure Class
200#
Valve Size
1 in
Weight
1.8 lb
Characteristics & Features
Collection
PF-413-Y-LF
Installation Type
Horizontal Mount, Vertical Mount
Material
Bronze
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Bronze
Valve Body Style
Y Pattern
Valve Disc Material
PTFE
Valve Type
Swing Check Valve
Electrical & Operational Information
Maximum Temperature
250
Pressure - High
200
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI 61-8, ANSI 61-8 Annex F, ANSI 61-8 Annex G
ASTM
ASTM A-276, ASTM B-371, ASTM B-584, ASTM B-75, ASTM F-594
FM Approved
No
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-139, MSS SP-80
NSF
NSF 372, NSF 61, NSF 61-8, NSF 61-8 Annex F, NSF 61-8 Annex G
NSF Certified
Yes
Recommended Valve Application
Commercial, Residential
UL Listed
No
UPC
039923360687
