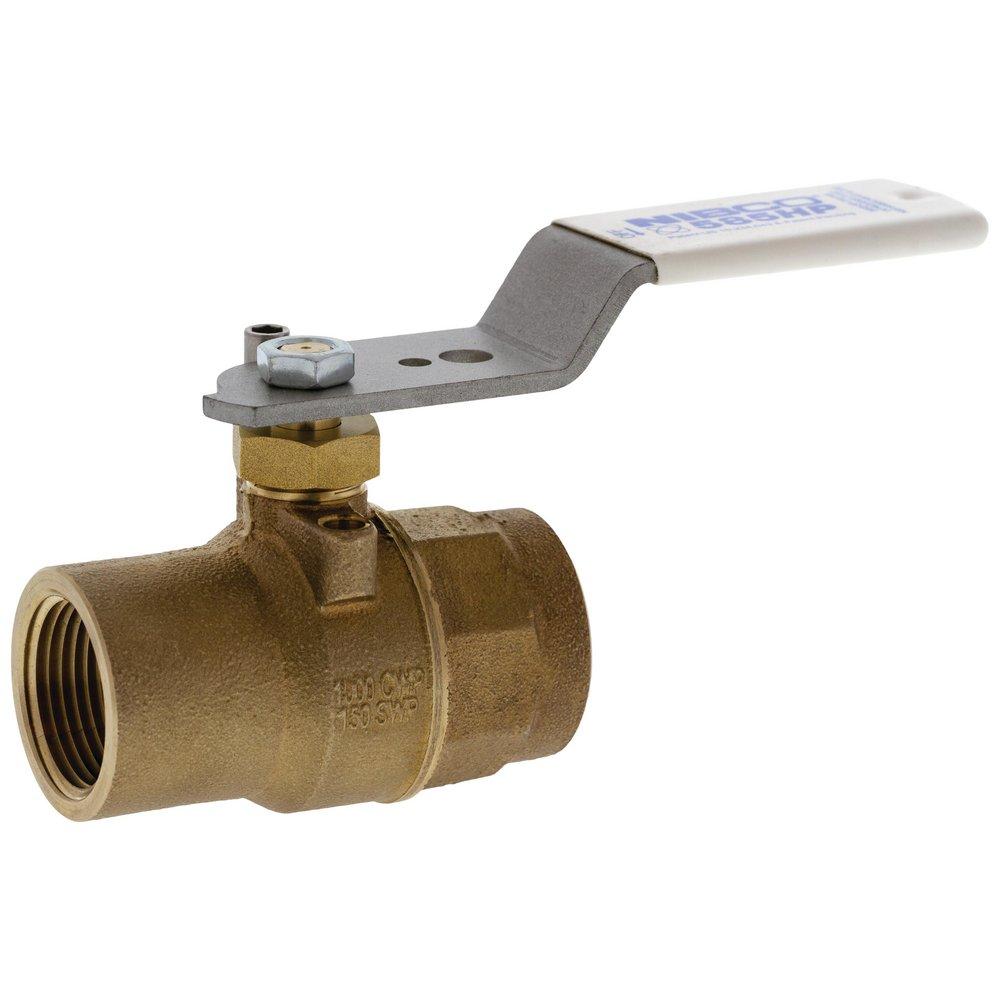

1-1/4 in. Bronze Full Port Threaded Ball Valve

NIBCO

PressACR® 1-1/4 in. Bronze Full Port Threaded Ball Valve

  • Fast #
  • Part #NT585HP66LFH
  • Item #9316322
  • Manufacturer Part #HP95HXB
5 out of 5 Customer Rating
Brand image
NIBCO Bronze Bronze Full Port Threaded Ball Valve
NIBCO

PressACR® 1-1/4 in. Bronze Full Port Threaded Ball Valve

  • Fast #
  • Part #NT585HP66LFH
  • Item #9316322
  • Manufacturer Part #HP95HXB
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 5 Case: 20 Pallet: 360
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • Valve pressure rating 1,000 psi 69 bar non-shock cold working pressure
  • 150 psi/10 Bar Steam Working Pressure
  • Maximum temperature rating 300°F
  • Full port
  • Laser Welded
  • Reversible Handle
  • Easily Adjustable Pack Nut
  • Triple Sealed Stem
  • Silicon Performance Bronze® Body
  • Stainless steel ball and stem
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI Z1157, ANSI 61/372-8
ASME:
ASME A112.4.14
ASTM:
ASTM A276 S31600, ASTM B16 C36000, ASTM B584 C87500
CSA Certified:
CSA B125.14
Clean Bagged:
No
Collection:
PressACR®
Color Finish Name:
Bronze
Depth:
6-3/4 in
End Connection 1:
Threaded
End Connection 2:
Threaded
End Connections:
Threaded
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Carbon Steel
Handle Type:
Lever
Height:
2-19/50 in
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
6-3/4 in
MSS:
MSS SP-110, MSS SP-145
Material:
Bronze Alloy
Material Type:
316 SS, CF8M
Maximum Temperature:
300
Minimum Temperature:
-20
NSF:
NSF 372, NSF 61-8
NSF Certified:
Yes
Number of Pieces:
2 Piece
Origin:
Domestic
Pressure - High:
1000
Pressure - Maximum:
1000 psi
Recommended Valve Application:
Residential, Commercial, Potable Water
Temperature Range:
-20 to 300 Deg F
Temperature Rating:
300
UL Listed:
No
Valve Body Material:
Silicon Bronze
Valve Body Style:
2 piece
Valve Disc Material:
Stainless Steel
Valve Operator:
Reversible Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Reinforced PTFE
Valve Size:
1-1/4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
2.25 lb
Width:
4-3/25 in
cUPC Certified:
Yes
