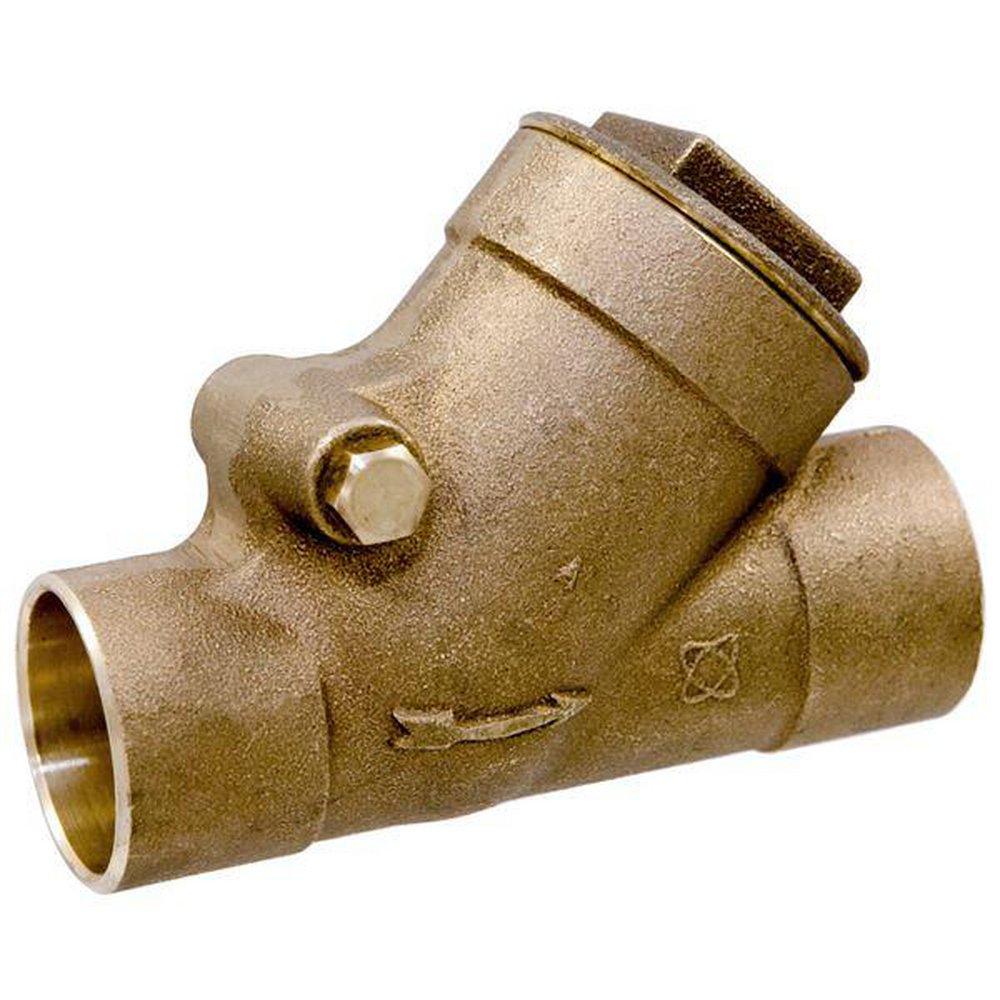

2 in. Silicon Bronze Solder Check Valve
NIBCO
S-413-Y-LF 2 in. Silicon Bronze Solder Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 2 Case: 10 Pallet: 210Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
S-413-Y-LF
2 in. Silicon Bronze Solder Check Valve
NJ740XD
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Conforms to MIL-V-18436F
- Renewable seat and disc
- Spring actuated (1/2 psi cracking pressure)
- Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure
- Maximum temperature 180° F / 82° C
- Class 250 flanged end connections
- Lead-free
- Conforms to MSS SP-125
- NSF/ANSI/CAN-61 and 372
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Sweat
End Connection 2
Sweat
End Connections
Sweat
Height
4-43/50 in
Length
6-11/25 in
Pressure Class
125#, 200#
Valve Size
2 in
Weight
4.870 lb
Width
3-7/100 in
Characteristics & Features
Coating
Silicon
Collection
S-413-Y-LF
Installation Type
Horizontal Mount, Vertical Mount
Material
Bronze, Plastic
Material Type
PTFE
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Silicon Bronze
Valve Body Style
Horizontal Swing
Valve Bonnet Type
Screw-in
Valve Disc Material
PTFE
Valve Seat Material
PTFE
Valve Type
Swing Check Valve
Electrical & Operational Information
Maximum Temperature
300
Pressure - High
200
Warranty & Product Information
ANSI
ANSI 372, ANSI 61-8
ASTM
ASTM B-283 C69300, ASTM B-584 C87850
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-139
NSF
NSF 372, NSF 61-8
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Water
UPC
039923310101
