2 in. Bronze Sweat Check Valve
NIBCO

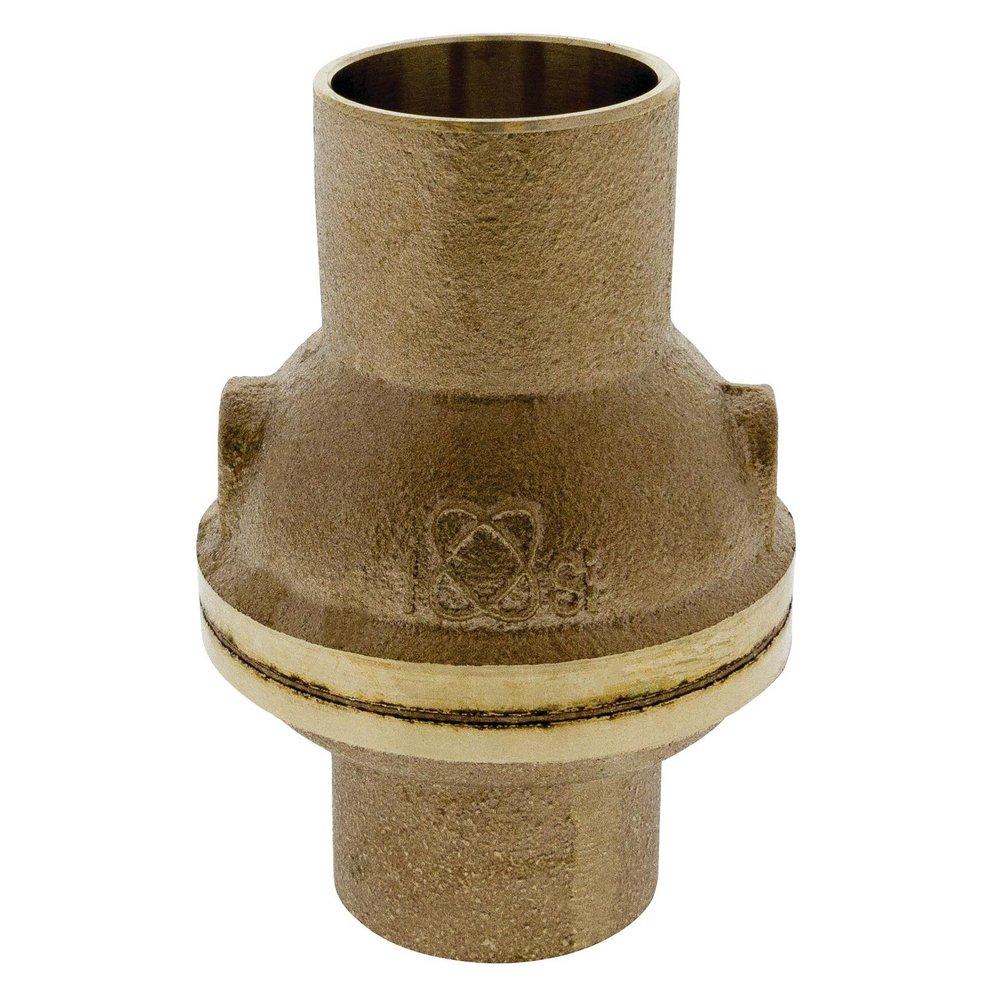

S-480-Y-LF 2 in. Bronze Sweat Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 10 Pallet: 420
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
S-480-Y-LF
2 in. Bronze Sweat Check Valve
NJ7Q2XD
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- In-line lift-type
- Spring actuated
- PTFE resilient seat disc
- NIBCO® double-oval lead-free body marking
- Class 125 solder end connections
- Lead-free*
- NSF/ANSI/CAN-61 and 372
- Dimensions and workmanship conform to MSS SP-80
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 61, ANSI 372
- ASTM:
- ASTM A-582 S30300, ASTM B-584 C87600
- Coating:
- Silicon
- Collection:
- S-480-Y-LF
- End Connection 1:
- Sweat
- End Connection 2:
- Sweat
- End Connections:
- Sweat
- FM Approved:
- No
- Height:
- 3-3/5 in
- IAPMO Listed:
- No
- Installation Type:
- Horizontal Mount, Vertical Mount
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 4-9/10 in
- MSS:
- Conforms to MSS SP-139
- Material:
- Lead Free Bronze
- Material Type:
- C87600
- Maximum Temperature:
- 300
- NSF:
- NSF 61, NSF 372-8
- NSF Certified:
- Yes
- Origin:
- Domestic
- Pressure - High:
- 250
- Pressure - Maximum:
- 250 psi
- Pressure Class:
- 125#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Recommended Valve Application:
- Potable Water
- UL Listed:
- No
- UPC:
- 039923407566
- Valve Body Material:
- Silicon Bronze
- Valve Body Style:
- Check
- Valve Bonnet Type:
- Screw-in
- Valve Disc Material:
- PTFE
- Valve Operator:
- Spring Actuated
- Valve Seat Material:
- PTFE
- Valve Size:
- 2 in
- Valve Type:
- Check Valve
- Weight:
- 1.990 lb
- Width:
- 3-3/5 in
