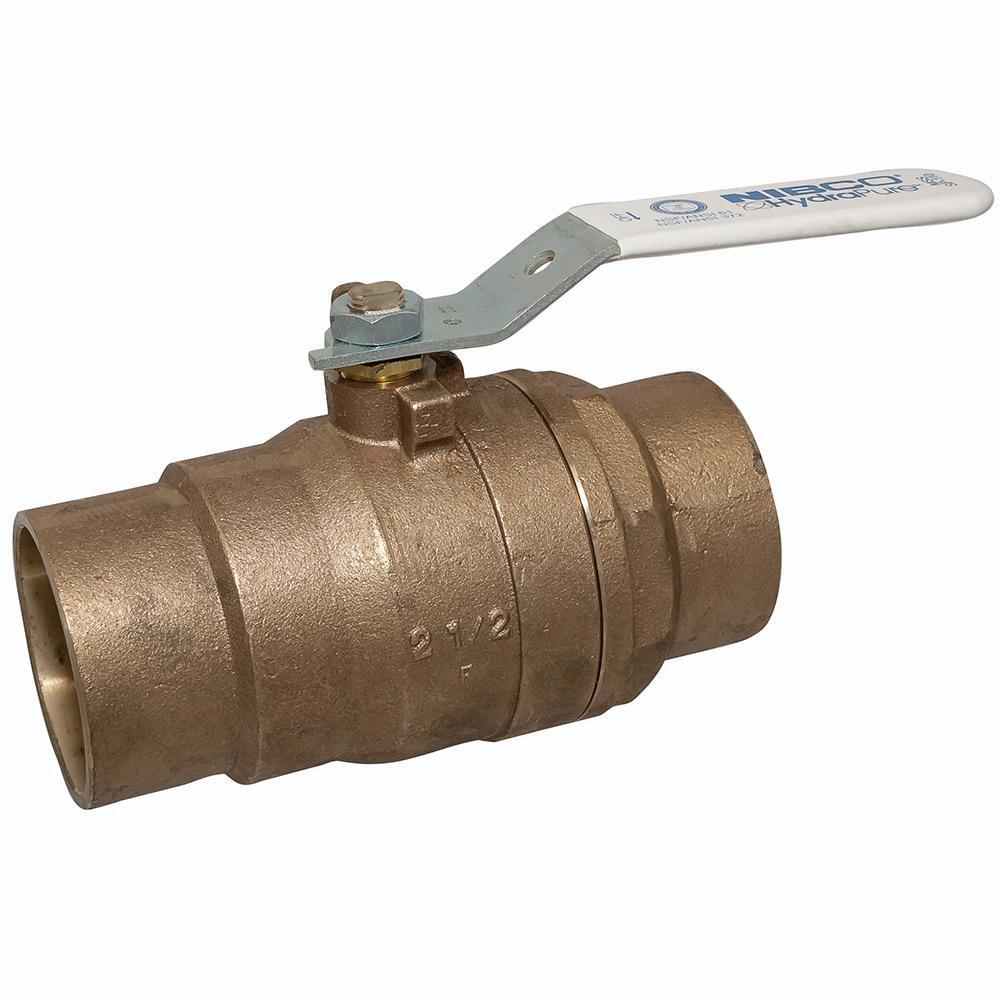

2-1/2 in. DZR Bronze Conventional Port Solder 600# Ball Valve

NIBCO

S-580-66-LF 2-1/2 in. DZR Bronze Conventional Port Solder 600# Ball Valve

  • Fast #
  • Part #NS58066LFL
  • Item #4697991
  • Manufacturer Part #NJ83HXE
3.2 out of 5 Customer Rating
Brand image
NIBCO Polished Chrome Bronze Conventional Port Solder 600# Ball Valve
NIBCO Polished Chrome Bronze Conventional Port Solder 600# Ball Valve
NIBCO

S-580-66-LF 2-1/2 in. DZR Bronze Conventional Port Solder 600# Ball Valve

  • Fast #
  • Part #NS58066LFL
  • Item #4697991
  • Manufacturer Part #NJ83HXE
3.2 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 2 Case: 6 Pallet: 120
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Lead-free
  • The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90°) open to close
  • The two-piece valve features solder ends for easy installation
  • Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, residential, mechanical and industrial applications
  • NIBCO® ball valves are backed by the NIBCO® INC
  • 5-year 125% limited warranty
  • Max temperature rating 300° F
  • Conventional port
  • Blowout-proof stem
  • Solder end connections
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372, ANSI 372-8, ANSI 61, ANSI 61-8, ANSI Z1157
ASTM:
ASTM A-276, ASTM B-16, ASTM B-584
Collection:
S-580-66-LF
End Connection 1:
Female Sweat
End Connection 2:
Female Sweat
End Connections:
Female Sweat
FM Approved:
No
Handle Material:
Plated Steel
Height:
5-11/25 in
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
6-17/50 in
MSS:
MSS SP-110, MSS SP-145
Material:
Bronze, Plastic, Steel
Material Type:
RPTFE
NSF:
NSF 372, NSF 372-8, NSF 61, NSF 61-8
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
600
Pressure Class:
600#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Potable Water
UL Listed:
No
UPC:
039923338938
Valve Body Material:
Bronze
Valve Body Style:
2 piece
Valve Disc Material:
Stainless Steel
Valve Operator:
Lever Handle
Valve Port Opening:
Standard Port
Valve Seat Material:
Reinforced PTFE
Valve Size:
2-1/2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
8.18 lb
Width:
6-17/50 in
cUPC Certified:
Yes
