This product requires certification to purchase.

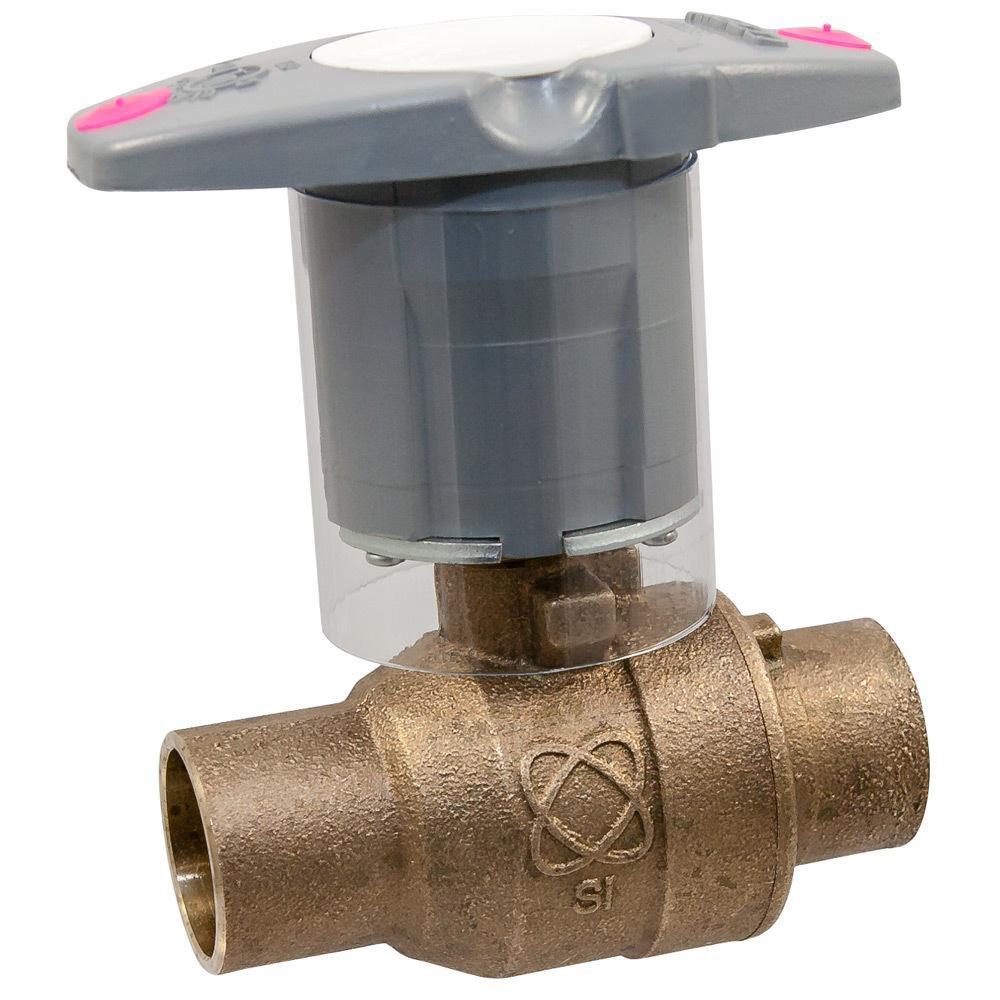

1 in. DZR Silicon Bronze Full Port Solder 600# Ball Valve

NIBCO

S-585-66-LF 1 in. DZR Silicon Bronze Full Port Solder 600# Ball Valve

  • Fast #
  • Part #NS58566LFNSG
  • Item #4473030
  • Manufacturer Part #NJB83HNA
3.8 out of 5 Customer Rating
Brand image
NIBCO Bronze Full Port Female Solder 600# Ball Valve
NIBCO Bronze Full Port Female Solder 600# Ball Valve
NIBCO

S-585-66-LF 1 in. DZR Silicon Bronze Full Port Solder 600# Ball Valve

  • Fast #
  • Part #NS58566LFNSG
  • Item #4473030
  • Manufacturer Part #NJB83HNA
3.8 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 20 Pallet: 600
Looking for compatible parts?
Out of Stock
How to get it:
  • Pick Up   Not Available
    0  in  Leesburg, VA
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Description
  • Standard lever handle, optional NIB-SEAL®, locking lever, memory stop, extended lever, round and wing
  • Dezincification resistant
  • Blowout-proof stem
  • Vented ball
  • Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
  • Max temperature rating 300° F
  • Full port
  • Silicon Performance Bronze® body
  • Solder end connections
  • Conforms to MSS SP-110
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
Female Sweat
End Connection 2
Female Sweat
End Connections
Female Sweat
Height
2-1/4 in
Length
3-99/100 in
Pressure Class
600#
Valve Size
1 in
Weight
1.5 lb
Width
4-1/4 in
Characteristics & Features
Collection
S-585-66-LF
Handle Material
Zinc Plated Steel
Material
Bronze, Plastic, Steel, Stainless Steel
Material Type
RPTFE
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Bronze
Valve Body Style
2 piece
Valve Disc Material
Stainless Steel
Valve Operator
Insulated NIB-SEAL Handle
Valve Port Opening
Full Port
Valve Seat Material
Reinforced PTFE
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
600
Warranty & Product Information
ANSI
ANSI 372, ANSI 372-8, ANSI 61, ANSI 61-8, ANSI Z1157
ASTM
ASTM A-276, ASTM B-16, ASTM B-584
cUPC Certified
Yes
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110, MSS SP-145
NSF
NSF 372, NSF 372-8, NSF 61, NSF 61-8
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water
UL Listed
No
UPC
039923445636
