3/4 in. DZR Silicon Bronze Full Port Solder 600# Ball Valve
NIBCO

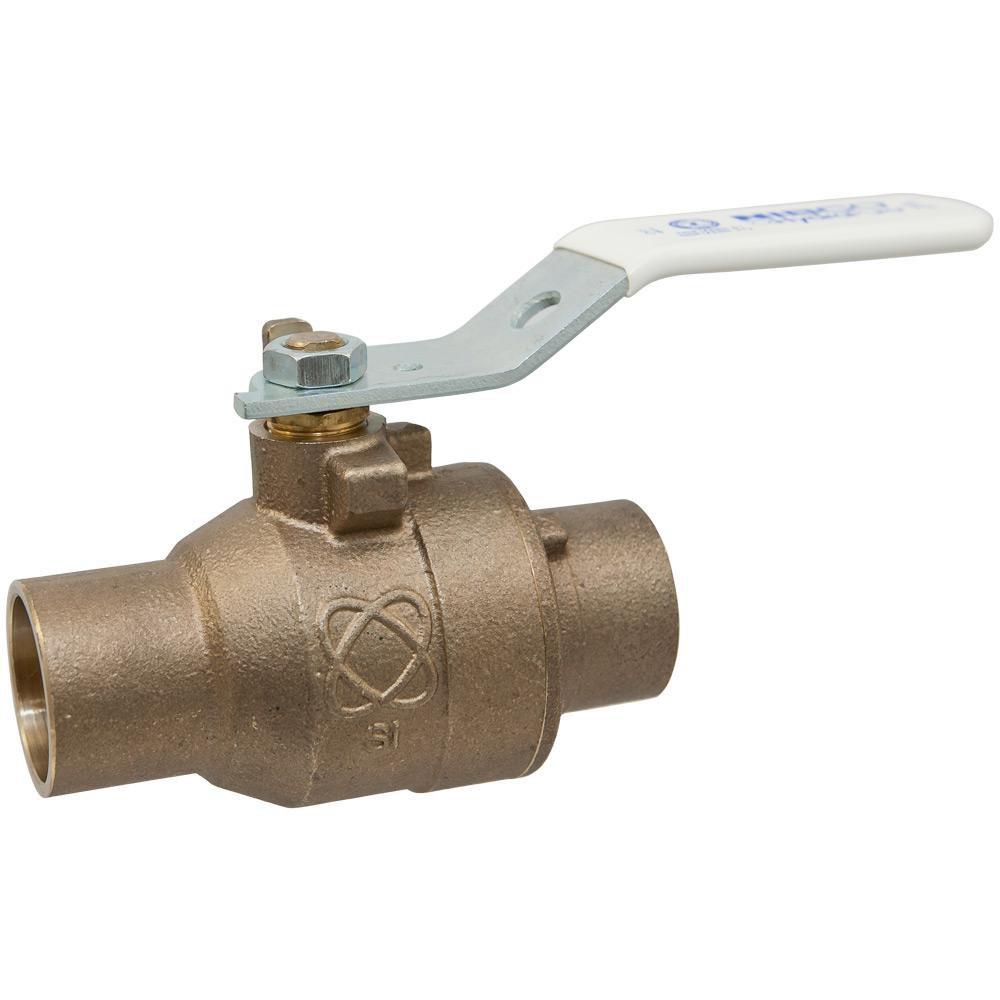

S-585-66-LF 3/4 in. DZR Silicon Bronze Full Port Solder 600# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 40 Pallet: 720Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
S-585-66-LF
3/4 in. DZR Silicon Bronze Full Port Solder 600# Ball Valve
NJB83HX8
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- The 2-piece valve features solder ends for easy installation
- The 2-piece valve provides bubble-tight shutoff at 600 psi and is dezincification resistant
- The ball valve includes reinforced PTFE seat rings with silicon bronze stem and ball, and is ideal for use in applications that deliver water for human consumption including residential and commercial construction
- Stainless trim
- Vented ball
- Lead-free
- Max temperature rating 300° F
- Stainless steel ball and stem
- Solder end connections
- Conforms to MSS SP-110
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Female Sweat
End Connection 2
Female Sweat
End Connections
Female Sweat
Height
1-14/25 in
Length
3-4/25 in
Pressure Class
600#
Valve Size
3/4 in
Weight
1.02 lb
Width
3-7/100 in
Characteristics & Features
Collection
S-585-66-LF
Handle Material
Zinc Plated Steel
Material
Bronze, Plastic, Steel, Stainless Steel
Material Type
RPTFE
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Bronze
Valve Body Style
2 piece
Valve Disc Material
Stainless Steel
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RPTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
600
Warranty & Product Information
ANSI
ANSI 372, ANSI 372-8, ANSI 61, ANSI 61-8, ANSI Z1157
ASTM
ASTM A-276, ASTM B-16, ASTM B-584
cUPC Certified
Yes
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110, MSS SP-145
NSF
NSF 372, NSF 372-8, NSF 61, NSF 61-8
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water
UL Listed
Yes
UPC
039923445674
