1 in. Bronze Full Port Female Solder 600# Ball Valve

NIBCO

S-585-70 1 in. Bronze Full Port Female Solder 600# Ball Valve

  • Fast #
  • Part #NS58570G
  • Item #40042
  • Manufacturer Part #NJ8300A
4.1 out of 5 Customer Rating
Brand image

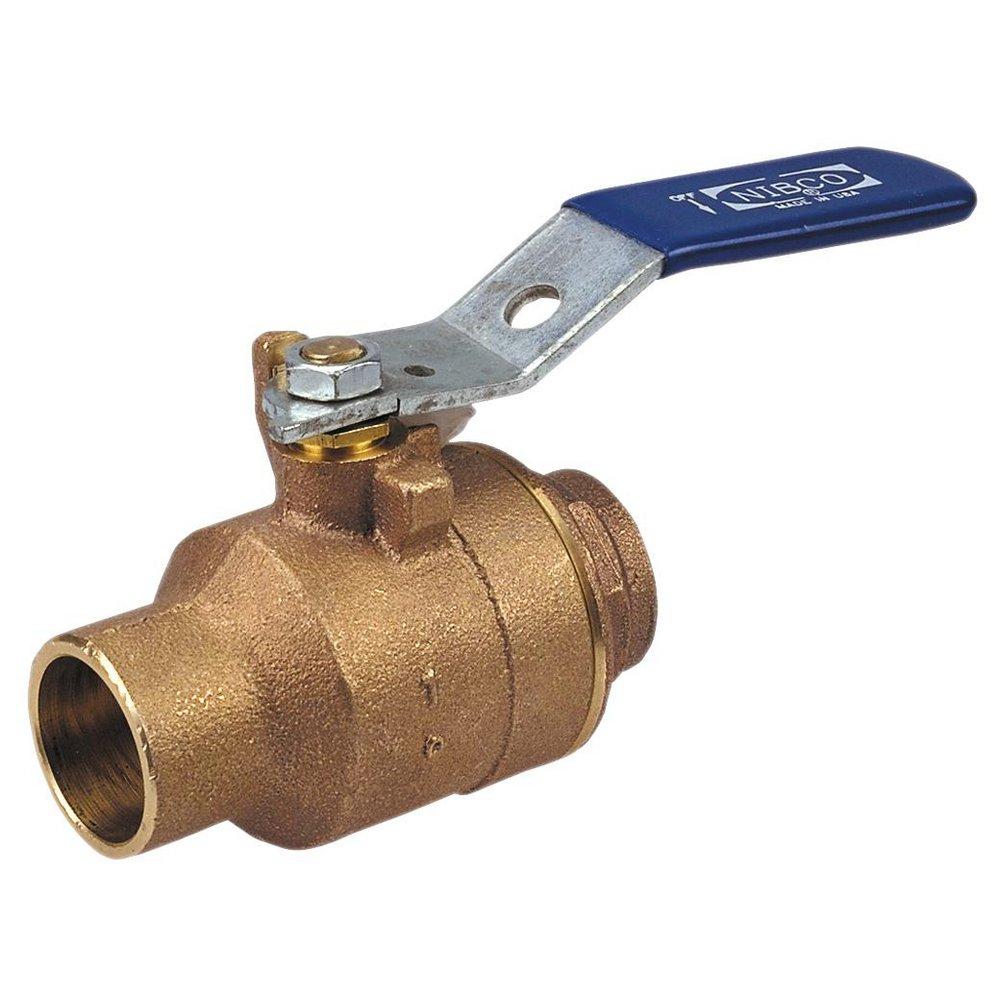

NIBCO Bronze Full Port Female Solder 600# Ball Valve
NIBCO Bronze Full Port Female Solder 600# Ball Valve
NIBCO

S-585-70 1 in. Bronze Full Port Female Solder 600# Ball Valve

  • Fast #
  • Part #NS58570G
  • Item #40042
  • Manufacturer Part #NJ8300A
4.1 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 5 Case: 30 Pallet: 540
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Chrome plated brass ball, silicon bronze stem
  • Blowout-proof stem
  • Standard lever handle, optional NIB-SEAL®
  • Solder end connections
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-110
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ASTM:
ASTM B 16 Alloy C36000, ASTM B 371 Alloy C69300, ASTM B 99 Alloy C65100, ASTMB 124 Alloy C37700, ASTM B 584 Alloy C84400
Clean Bagged:
No
Collection:
S-585-70
End Connection 1:
Female Sweat
End Connection 2:
Female Sweat
End Connections:
Female Sweat
FM Approved:
No
Handle Material:
Zinc Plated Steel
Height:
2-1/10 in
IAPMO Listed:
No
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
3-3/4 in
MSS:
MSS SP-110
Material:
Bronze
Material Type:
DZR
Maximum Temperature:
400
Minimum Temperature:
-20
NSF Certified:
No
Origin:
Domestic
Pressure - High:
600
Pressure - Maximum:
600 psi
Pressure Class:
600#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Commercial, Residential, Mechanical, Industrial
Temperature Range:
Up to 400 Deg F
UL Listed:
No
UPC:
039923677549
Valve Body Material:
Bronze
Valve Body Style:
2 piece
Valve Disc Material:
Brass
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Reinforced PTFE
Valve Size:
1 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
1.72 lb
Width:
3-2/5 in
cUPC Certified:
No
