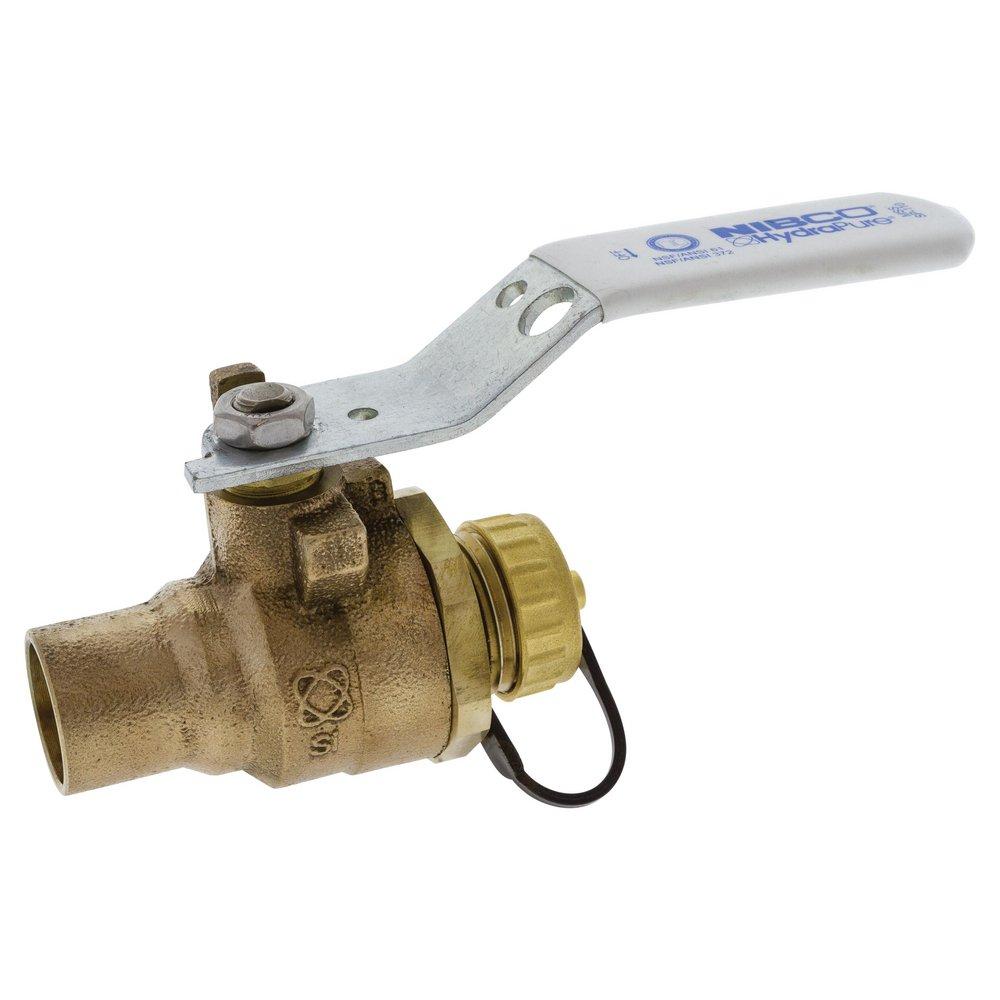

1/2 x 3/4 in. DZR Silicon Bronze Full Port Solder x Hose 600# Ball Valve
NIBCO
S-585-80-LF-HC 1/2 x 3/4 in. DZR Silicon Bronze Full Port Solder x Hose 600# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 10 Case: 60 Pallet: 2340
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
S-585-80-LF-HC
1/2 x 3/4 in. DZR Silicon Bronze Full Port Solder x Hose 600# Ball Valve
NJB839P6
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Full port
- Blowout-proof stem
- NIBCO® HydraPure® lead-free* markings on handle and body
- Standard lever handle; other handle options available
- Dezincification resistant
- Lead-free*
- Conforms to MSS SP-110
- NSF/ANSI/CAN-372
- NSF/ANSI/CAN-61
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 372-8, ANSI 61, ANSI Z1157
- ASME:
- ASME A112.4.14
- ASTM:
- ASTM B-16 C36000, ASTM B-283 Alloy C69300, ASTM B-371 C69300, ASTM B-584 C87600
- CSA Certified:
- CSA B125.14
- Clean Bagged:
- No
- Collection:
- S-585-80-LF-HC
- End Connection 1:
- Sweat
- End Connection 2:
- GHT
- End Connections:
- Sweat x GHT
- FM Approved:
- No
- Handle Material:
- Steel
- Height:
- 2-31/50 in
- IAPMO Listed:
- Yes
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 2-37/50 in
- MSS:
- MSS SP-110, MSS SP-145
- Material:
- Bronze, Brass, Plastic, Steel
- Material Type:
- RPTFE
- Maximum Temperature:
- 300
- Minimum Temperature:
- -20
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Origin:
- Domestic
- Pressure - High:
- 600
- Pressure - Maximum:
- 600 psi
- Pressure Class:
- 600#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Recommended Valve Application:
- Potable Water
- Temperature Range:
- Up to 300 Deg F
- UL Listed:
- No
- UPC:
- 039923445544
- Valve Body Material:
- Bronze
- Valve Body Style:
- 2 piece
- Valve Disc Material:
- Silicone Bronze
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Reinforced PTFE
- Valve Size:
- 1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 0.74 lb
- Width:
- 2-22/25 in
- cUPC Certified:
- Yes
