3/4 in. Silicon Bronze Full Port Female Solder 600# Ball Valve
NIBCO

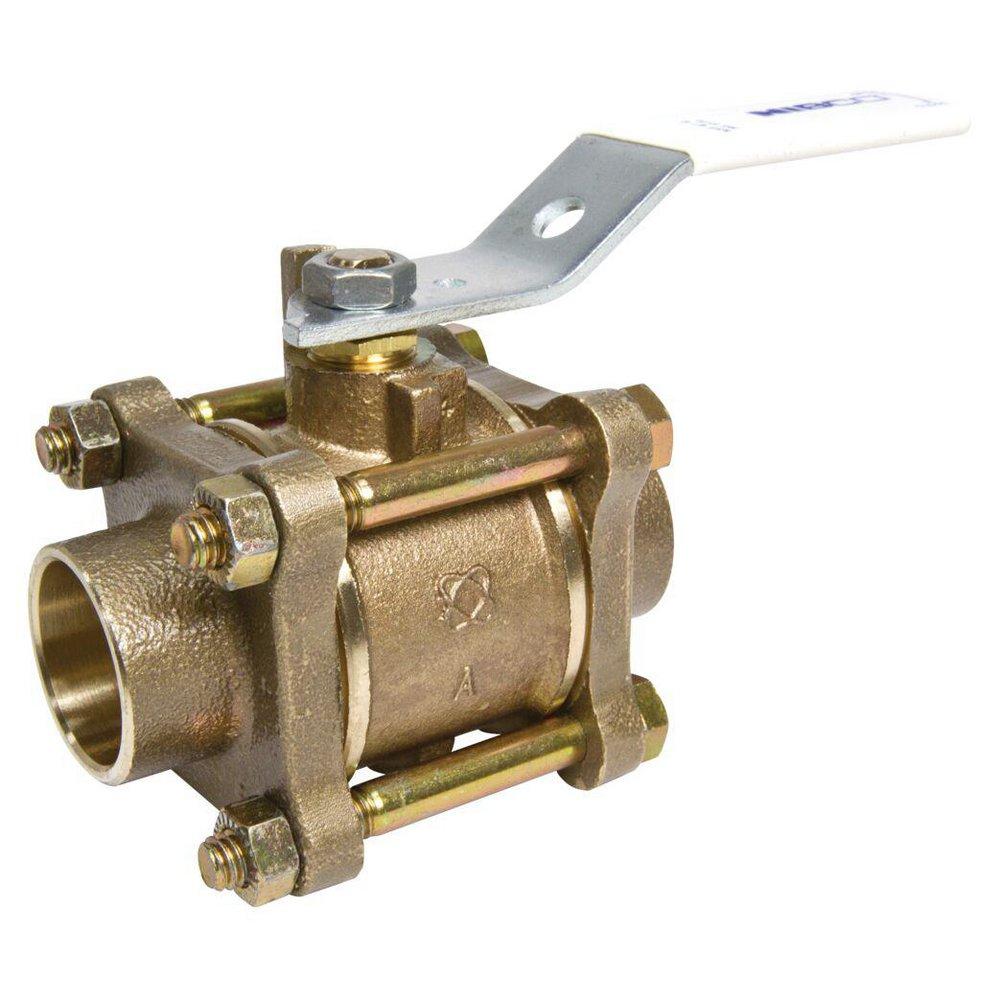

S-595-Y-LF 3/4 in. Silicon Bronze Full Port Female Solder 600# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 30 Pallet: 840
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
S-595-Y-LF
3/4 in. Silicon Bronze Full Port Female Solder 600# Ball Valve
NJ93028
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Full port
- Repairable design
- Silicon Performance Bronze® trim
- Blowout-proof stem
- PTFE seats
- White handle for easy lead-free* identification
- NIBCO® double-oval lead-free body marking
- Solder end connections
- Dezincification resistant
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 61, ANSI 372-8
- ASTM:
- ASTM B371 Alloy C69300, ASTM B16 Alloy C36000, ASTM B584 Alloy C87850, ASTM B283 Alloy C69300, or ASTM A276 Type 316
- Clean Bagged:
- No
- Collection:
- S-595-Y-LF
- Color Finish Name:
- Bronze
- Depth:
- 6-3/20 in
- End Connection 1:
- Female Sweat
- End Connection 2:
- Female Sweat
- End Connections:
- Female Sweat
- FM Approved:
- No
- Handle Material:
- Plated Steel
- Handle Type:
- Lever
- Height:
- 1-24/25 in
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 6-3/20 in
- MSS:
- MSS SP-110, MSS SP-145
- Material:
- Silicon Bronze
- Maximum Temperature:
- 300
- Minimum Temperature:
- -20
- NSF:
- NSF 61, NSF 372
- NSF Certified:
- Yes
- Number of Pieces:
- 3 Piece
- Origin:
- Domestic
- Pressure - High:
- 600
- Pressure - Maximum:
- 600 psi
- Pressure Class:
- 600#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Recommended Valve Application:
- Commercial, Residential
- Temperature Range:
- Up to 300 Deg F
- Temperature Rating:
- 300
- UL Listed:
- No
- UPC:
- 039923319838
- Valve Body Material:
- Bronze
- Valve Body Style:
- 3 piece
- Valve Disc Material:
- Stainless Steel, Silicone Bronze
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 3/4 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 1.487 lb
- Width:
- 3-8/25 in
- cUPC Certified:
- Yes
