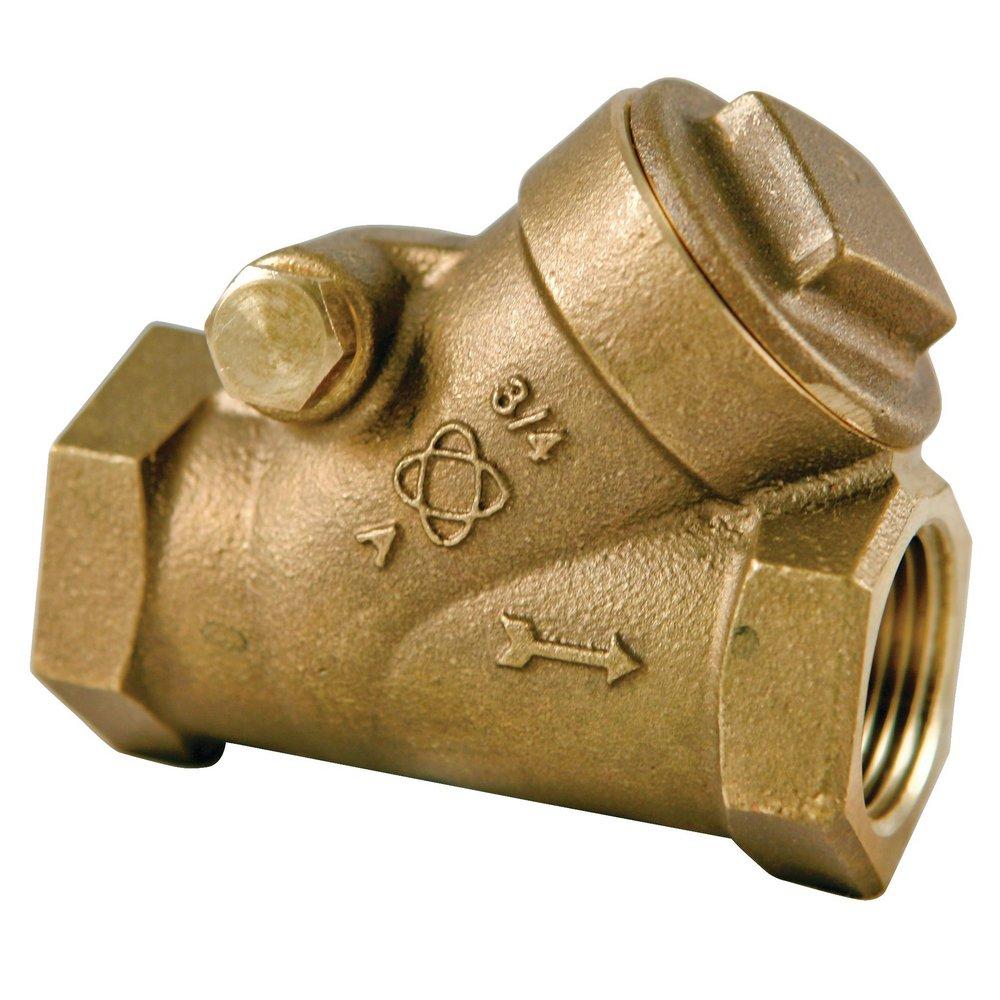

1-1/2 in. Bronze NPT Swing Check Valve
NIBCO
T-413-Y-LF 1-1/2 in. Bronze NPT Swing Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 2 Case: 10 Pallet: 360
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
T-413-Y-LF
1-1/2 in. Bronze NPT Swing Check Valve
NL740XC
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Valve pressure rating 200 psi/13.8 bar non-shock cold working pressure
- Y-pattern
- Renewable seat and disc
- Regrinding type
- NIBCO® double-oval lead-free body marking
- Class 125 threaded end connections
- Lead-free*
- Dimensions and workmanship conform to MSS SP-80
- NSF/ANSI/CAN-61 and 372
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 372-8, ANSI 61
- ASTM:
- ASTM B-283 C69300, ASTM B-584 C87850
- Collection:
- T-413-Y-LF
- Color Finish Name:
- Bronze
- End Connection 1:
- Threaded
- End Connection 2:
- Threaded
- End Connections:
- Threaded
- FM Approved:
- No
- Height:
- 4-11/25 in
- IAPMO Listed:
- No
- Installation Type:
- Horizontal Mount, Vertical Mount
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 4-12/25 in
- MSS:
- MSS SP-139
- Material:
- Bronze, Plastic
- Material Type:
- PTFE
- Maximum Temperature:
- 300
- Minimum Temperature:
- -20
- NSF:
- NSF 372, NSF 61-8
- NSF Certified:
- Yes
- Origin:
- Domestic
- Pressure - High:
- 200
- Pressure - Maximum:
- 200 psi
- Pressure Class:
- 200#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Recommended Valve Application:
- Cold Working Pressure, Commercial, Residential
- UL Listed:
- No
- UPC:
- 039923310033
- Valve Body Material:
- Silicon Bronze
- Valve Body Style:
- Y Pattern
- Valve Bonnet Type:
- Screw-in
- Valve Disc Material:
- PTFE
- Valve Operator:
- Automatic
- Valve Seat Material:
- PTFE
- Valve Size:
- 1-1/2 in
- Valve Type:
- Swing Check Valve
- Weight:
- 2.950 lb
- Width:
- 2-43/100 in
