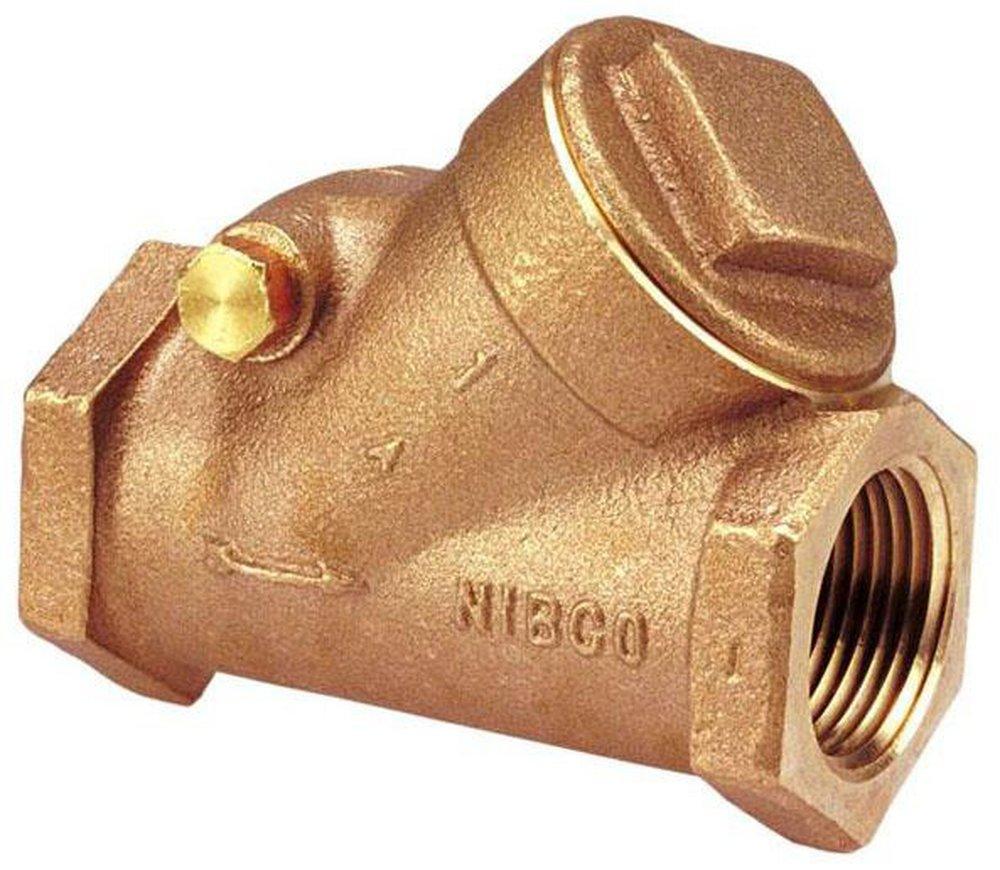

3/4 in. Bronze NPT Check Valve
You last purchased this on
NIBCO
T-433-B 3/4 in. Bronze NPT Check Valve
Purchase history
NIBCO
T-433-B
3/4 in. Bronze NPT Check Valve
NL7J008
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
- Pressure protection only
- Bronze body construction resists corrosive water conditions of water supplies
- For hot water heating and supply boilers
- Bronze body with stainless steel spring
- Non-mechanical seat-to-disc alignment will not stick or freeze
- Valve protects hot water heating boiler equipment from excessive pressure
- Standard pressure relief setting 30 . W374AF.Iron body with bronze inlet; 550,000 BTU/Hr. rating
- Specifications' threaded female inletxfemale outlet (drain) connection
- Seat is located above drain to prevent water from being trapped and sediment from fouling the seat
Specifications
- ASTM:
- ASTM B-140 C31400, ASTM B-16, ASTM B-62 C83600
- Application:
- Cold Working Pressure, Commercial, Industrial, Mechanical
- Collection:
- T-433-B
- End Connection 1:
- FPT
- End Connection 2:
- FPT
- End Connections:
- FPT
- Installation Type:
- Horizontal Mount, Vertical Mount
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- Length:
- 2-47/50 in
- MSS:
- MSS SP-80
- Material:
- Bronze
- Maximum Temperature:
- 650
- Minimum Temperature:
- -20
- NSF Certified:
- No
- Origin:
- Domestic
- Pressure - High:
- 150, 300
- Pressure Class:
- 150#, 300#
- Recommended Valve Application:
- Gas, Oil, Steam, Water
- UL Listed:
- No
- Valve Body Material:
- Bronze
- Valve Body Style:
- Y Pattern
- Valve Disc Material:
- Bronze
- Valve Seat Material:
- Bronze
- Valve Size:
- 3/4 in
- Valve Type:
- Swing Check Valve
- Weight:
- 0.98 lb
