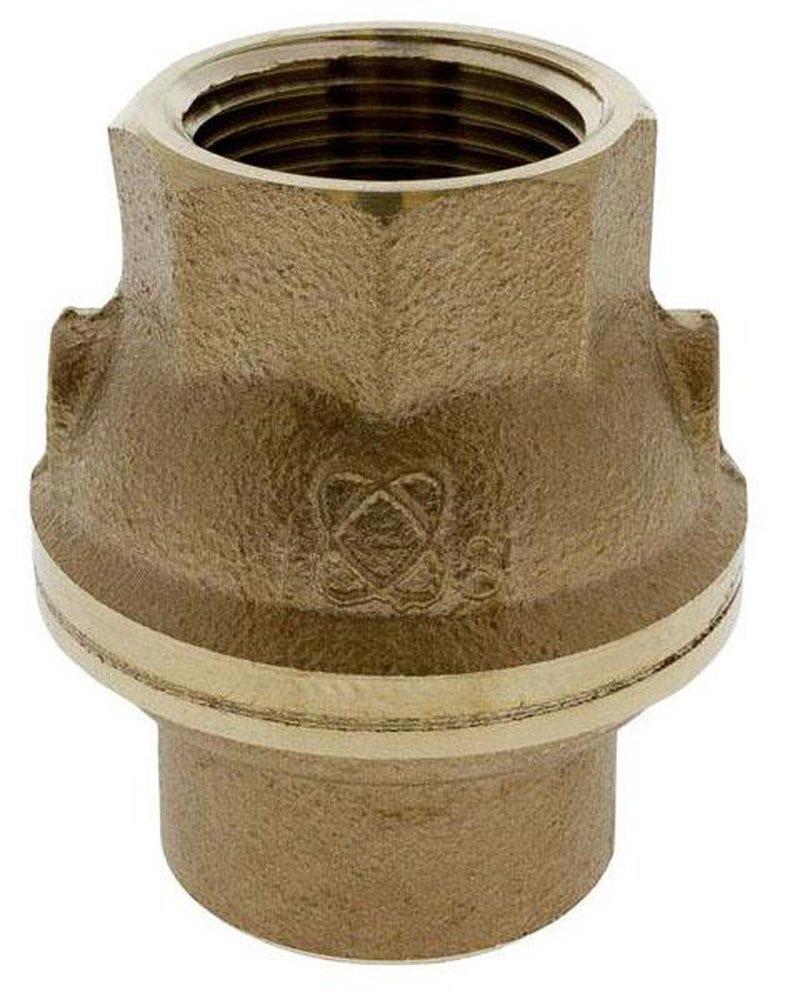

2 in. Bronze NPT Check Valve
T-480-Y-LF 2 in. Bronze NPT Check Valve
Frequently Purchased Together
Product Details
- Class 300 threaded end connections
- FNPT thread
- Bronze swing check
- 600 psi/41.4 bar non-shock cold working pressure
- Horizontal swing check
- Y-pattern
- 300 psi/20.7 bar saturated steam to 421° F / 216° C
- Renewable bronze disc
- Use in U.S. drinking water applications is prohibited after January 3, 2014
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 372, ANSI 61-8
- ASTM:
- ASTM A-582 Alloy S30300, ASTM B-584 Alloy C87600
- Application:
- Cold Working Pressure, Commercial, Residential
- Coating:
- Silicon
- Collection:
- T-480-Y-LF
- End Connection 1:
- FPT
- End Connection 2:
- FPT
- End Connections:
- FPT
- Height:
- 3-18/25 in
- Installation Type:
- Horizontal Mount, Vertical Mount
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 3-71/100 in
- MSS:
- MSS SP-139
- Material:
- Bronze, Plastic, Stainless Steel
- Material Type:
- PTFE
- Maximum Temperature:
- 300
- NSF:
- NSF 372, NSF 61-8
- NSF Certified:
- Yes
- Origin:
- Domestic
- Pressure - High:
- 250
- Pressure Class:
- 250#
- Recommended Valve Application:
- Water
- Valve Body Material:
- Bronze
- Valve Body Style:
- Inline
- Valve Bonnet Type:
- Screw-in
- Valve Disc Material:
- PTFE
- Valve Operator:
- Spring Actuated
- Valve Seat Material:
- PTFE
- Valve Size:
- 2 in
- Valve Type:
- Spring Check Valve
- Weight:
- 2.27 lb
- Width:
- 3-3/5 in
