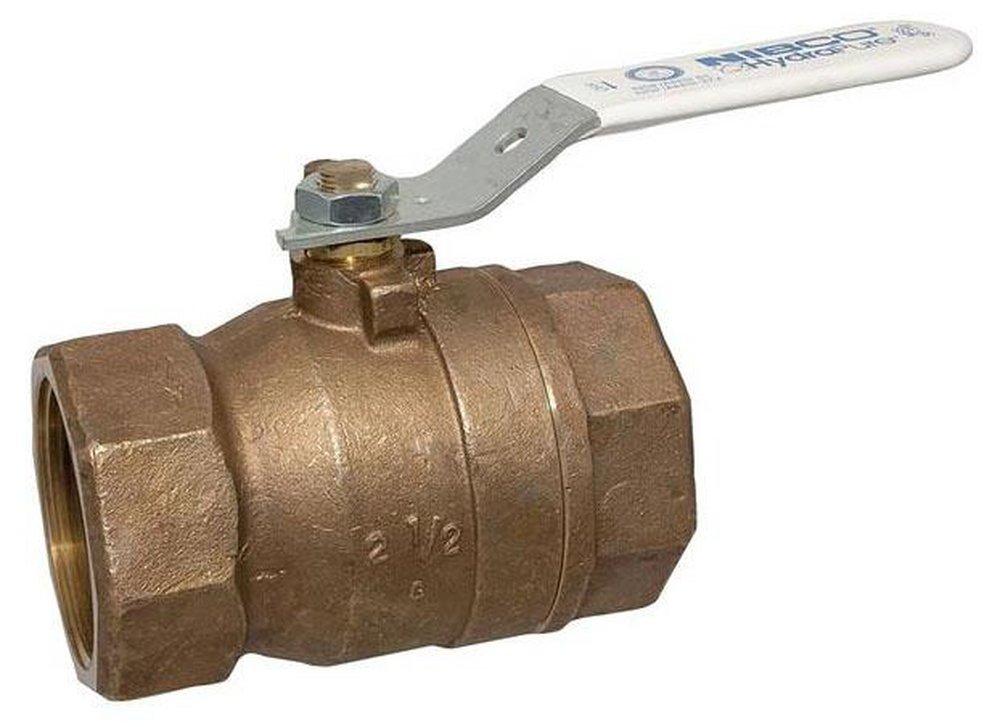

2-1/2 in. Silicon Bronze Conventional Port NPT 600# Ball Valve
You last purchased this on
NIBCO
T-580-66-LF 2-1/2 in. Silicon Bronze Conventional Port NPT 600# Ball Valve
Purchase history
NIBCO
T-580-66-LF
2-1/2 in. Silicon Bronze Conventional Port NPT 600# Ball Valve
NL95HXE
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Lead-free
- Silicon Performance Bronze® alloy
- Two-piece body
- Conventional port
- Blowout-proof stem
- Stainless trim
- Vented ball
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Max temperature rating 300° F
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 372, ANSI 61, ANSI Z1157
- ASTM:
- ASTM A-276 Type 316, ASTM B-584 C85700
- Collection:
- T-580-66-LF
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- FM Approved:
- No
- Handle Material:
- Plated Steel
- IAPMO Listed:
- Yes
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 5-43/100 in
- MSS:
- MSS SP-110, MSS SP-145
- Material:
- Bronze, Plastic, Steel
- Material Type:
- RPTFE
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Origin:
- Domestic
- Pressure - High:
- 600
- Pressure Class:
- 600#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Recommended Valve Application:
- Commercial, Cold Working Pressure, Residential
- Temperature Range:
- Up to 300 Deg F
- UL Listed:
- No
- Valve Body Material:
- Bronze
- Valve Body Style:
- 2 piece
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- RPTFE
- Valve Size:
- 2-1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 8.25 lb
- Width:
- 5-11/25 in
