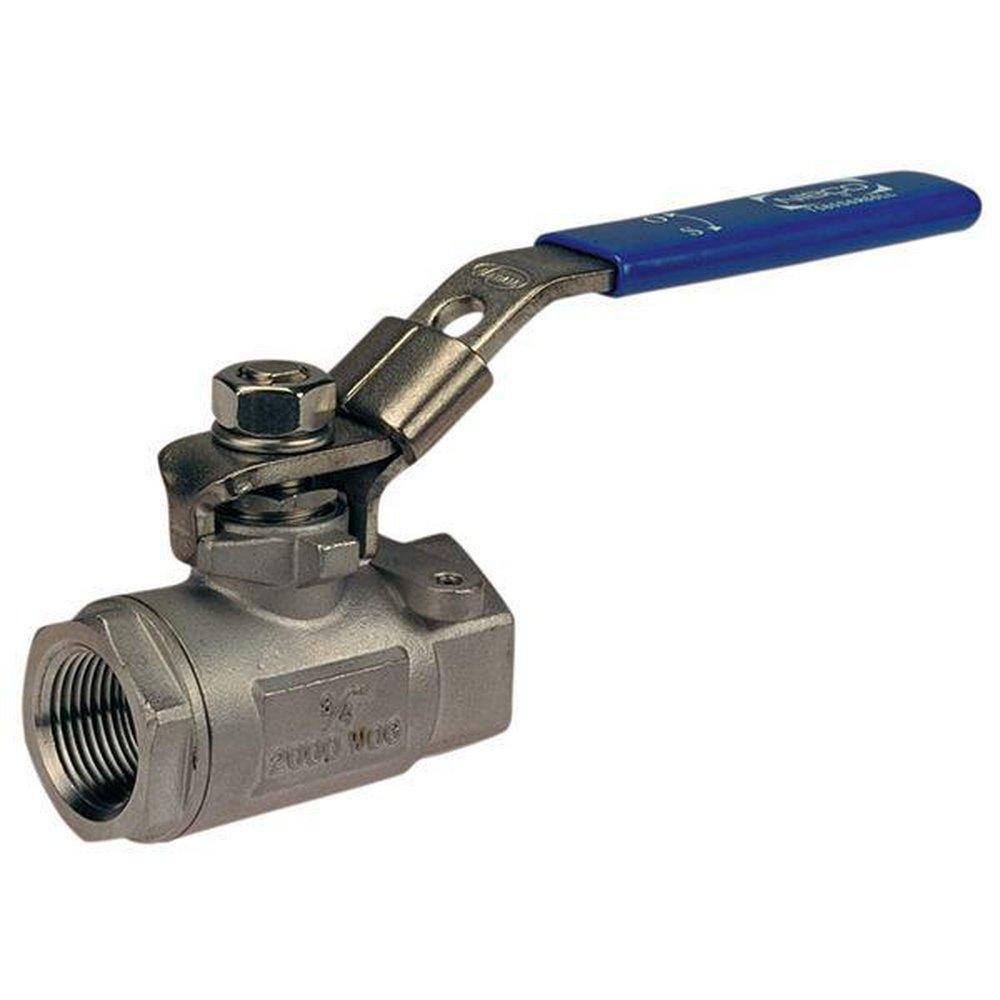

1/2 in. CF8M Stainless Steel Conventional Port NPT 2000# Ball Valve
You last purchased this on
NIBCO
T-580-S6-R-66-LL 1/2 in. CF8M Stainless Steel Conventional Port NPT 2000# Ball Valve
Purchase history
NIBCO
T-580-S6-R-66-LL
1/2 in. CF8M Stainless Steel Conventional Port NPT 2000# Ball Valve
NL94Q76
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Stainless steel body and trim
- 2000#
- Threaded end connections
- Valve pressure rating 2000 psi 138 bar non-shock cold working pressure
- Max temperature rating 400°F
- Conventional port
- Blowout-proof stem
- Vented ball
- Locking lever handle
-
Not Compliant, Approved for Non-Potable Water Applications
Specifications
- ASME:
- ASME B16.34
- ASTM:
- ASTM A-276, ASTM B-351, ASTM A-240
- Collection:
- T-580-S6-R-66-LL
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- FM Approved:
- No
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- MSS:
- MSS SP-110
- Material:
- Stainless Steel
- Material Type:
- CF8M
- NSF Certified:
- No
- Pressure - Maximum:
- 2000 psi
- Pressure Class:
- 2000#
- UL Listed:
- No
- Valve Body Style:
- 2 piece
- Valve Operator:
- Locking Lever Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
