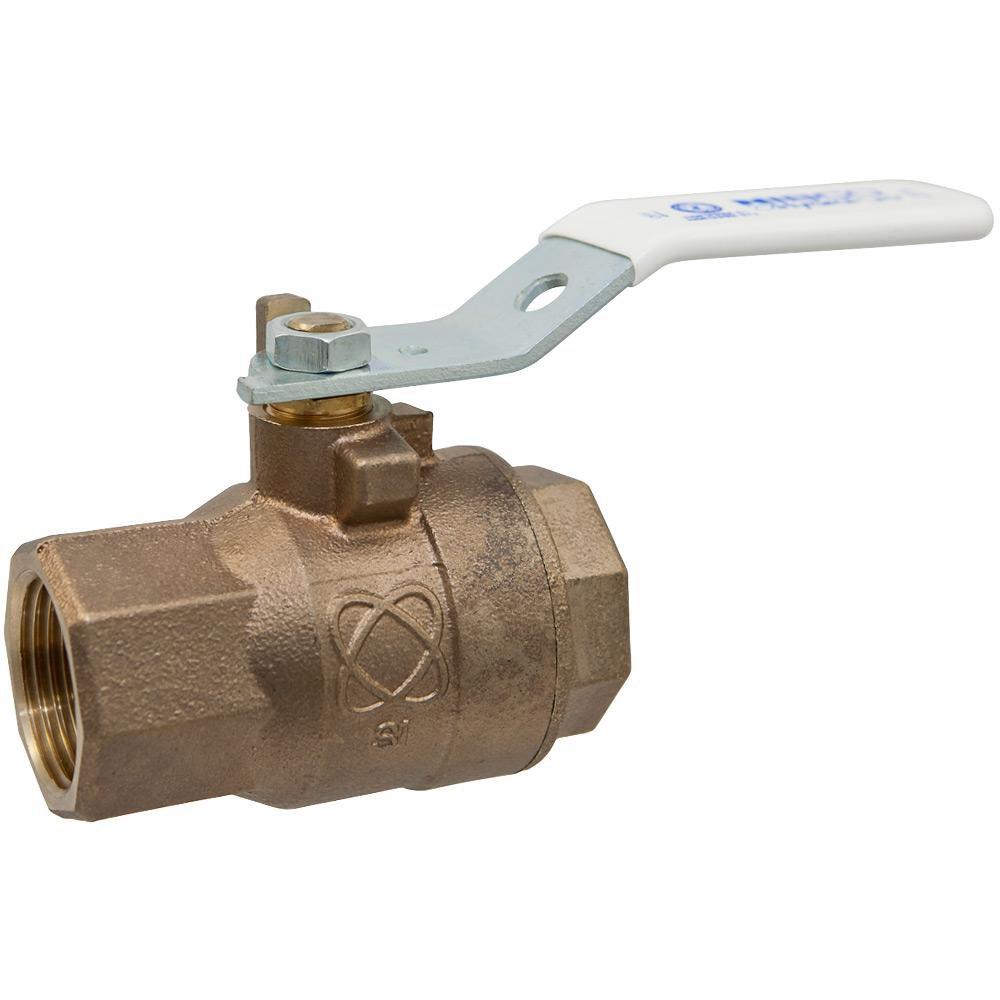

3/8 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
You last purchased this on
NIBCO
T-585-66-LF 3/8 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
Purchase history
NIBCO
T-585-66-LF
3/8 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
NLB95HX5
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Standard lever handle, optional NIB-SEAL®, locking lever, memory stop, extended lever, round and wing
- Threaded end connections
- Vented ball
- Dezincification resistant
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Max temperature rating 300° F
- Full port
- Silicon Performance Bronze® body
- Blowout-proof stem
- Conforms to MSS SP-110
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 372, ANSI 61-8, ANSI Z1157
- ASTM:
- ASTM A-276, ASTM B-16 C36000, ASTM B-584 C87600
- Collection:
- T-585-66-LF
- End Connection 1:
- FPT
- End Connection 2:
- FPT
- End Connections:
- FPT
- FM Approved:
- No
- Handle Material:
- Stainless Steel
- Height:
- 1-1/100 in
- IAPMO Listed:
- Yes
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 1-79/100 in
- MSS:
- MSS SP-110, MSS SP-145
- Material:
- Bronze, Plastic, Stainless Steel
- Material Type:
- RPTFE
- Maximum Temperature:
- 300
- NSF:
- NSF 372, NSF 61-8
- NSF Certified:
- Yes
- Origin:
- Domestic
- Pressure - High:
- 600
- Pressure Class:
- 600#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Recommended Valve Application:
- Potable Water
- UL Listed:
- No
- Valve Body Material:
- Bronze
- Valve Body Style:
- 2 piece
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Quarter Turn
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- RPTFE
- Valve Size:
- 3/8 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 0.44 lb
- Width:
- 2-8/25 in
