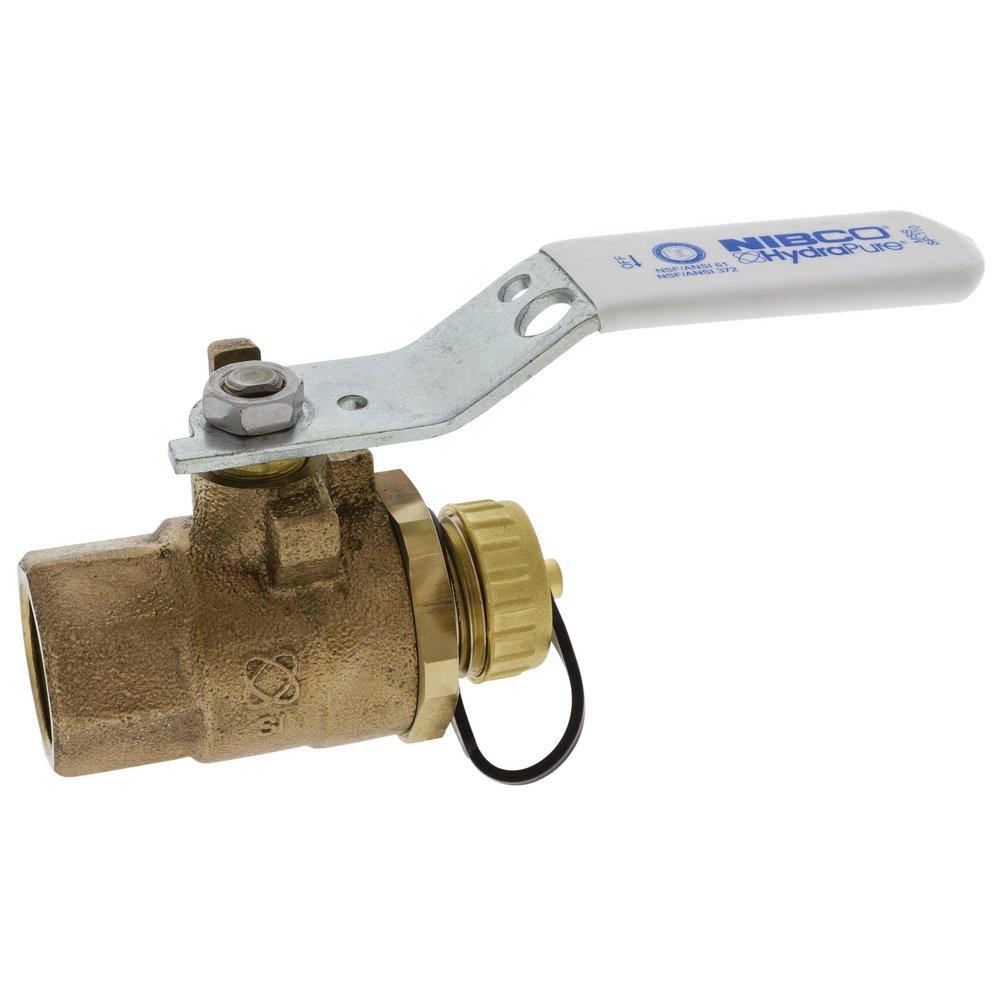

3/4 in. DZR Silicon Bronze Full Port NPT x Hose 600# Ball Valve

You last purchased this on

NIBCO

T-585-66-LF-HC 3/4 in. DZR Silicon Bronze Full Port NPT x Hose 600# Ball Valve

  • Fast #
  • Part #NT58566LFHCF
  • Item #4707869
  • Manufacturer Part #NLB978X8
5 out of 5 Customer Rating
Brand image
NIBCO Bronze DZR Silicon Bronze Full Port NPT x Hose 600# Ball Valve
You last purchased this on

NIBCO

T-585-66-LF-HC 3/4 in. DZR Silicon Bronze Full Port NPT x Hose 600# Ball Valve

  • Fast #
  • Part #NT58566LFHCF
  • Item #4707869
  • Manufacturer Part #NLB978X8
5 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 5 Case: 30 Pallet: 900
Looking for compatible parts?
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

Product Details

  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Full port
  • Silicon Performance Bronze® body
  • Stainless steel ball and stem
  • Threaded end connections
  • Blowout-proof stem
  • Standard lever handle; other handle options available
  • NIBCO® HydraPure® lead-free* markings on handle and body
  • Dezincification resistant
  • Lead-free*
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372, ANSI 61
ASTM:
ASTM A-276 Type 316, ASTM B-584
Clean Bagged:
No
Collection:
T-585-66-LF-HC
Color Finish Name:
Bronze
Depth:
6-3/20 in
End Connection 1:
Threaded
End Connection 2:
Threaded
End Connections:
Threaded
FM Approved:
No
Handle Material:
Steel
Handle Type:
Lever
Height:
1-17/25 in
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
6-3/20 in
MSS:
MSS SP-110, MSS SP-145
Material:
Bronze, Stainless Steel, Plastic
Material Type:
RPTFE
Maximum Temperature:
300
Minimum Temperature:
-20
NSF:
NSF 372, NSF 61-8
NSF Certified:
Yes
Number of Pieces:
2 Piece
Origin:
Domestic
Pressure - High:
600
Pressure - Maximum:
600 psi
Pressure Class:
600#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Potable Water
Temperature Range:
Up to 300 Deg F
Temperature Rating:
300
UL Listed:
No
Valve Body Material:
Silicon Bronze
Valve Body Style:
Ball
Valve Bonnet Type:
Threaded
Valve Disc Material:
Stainless Steel
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE
Valve Size:
3/4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
1.23 lb
Width:
3-4/25 in
cUPC Certified:
Yes
