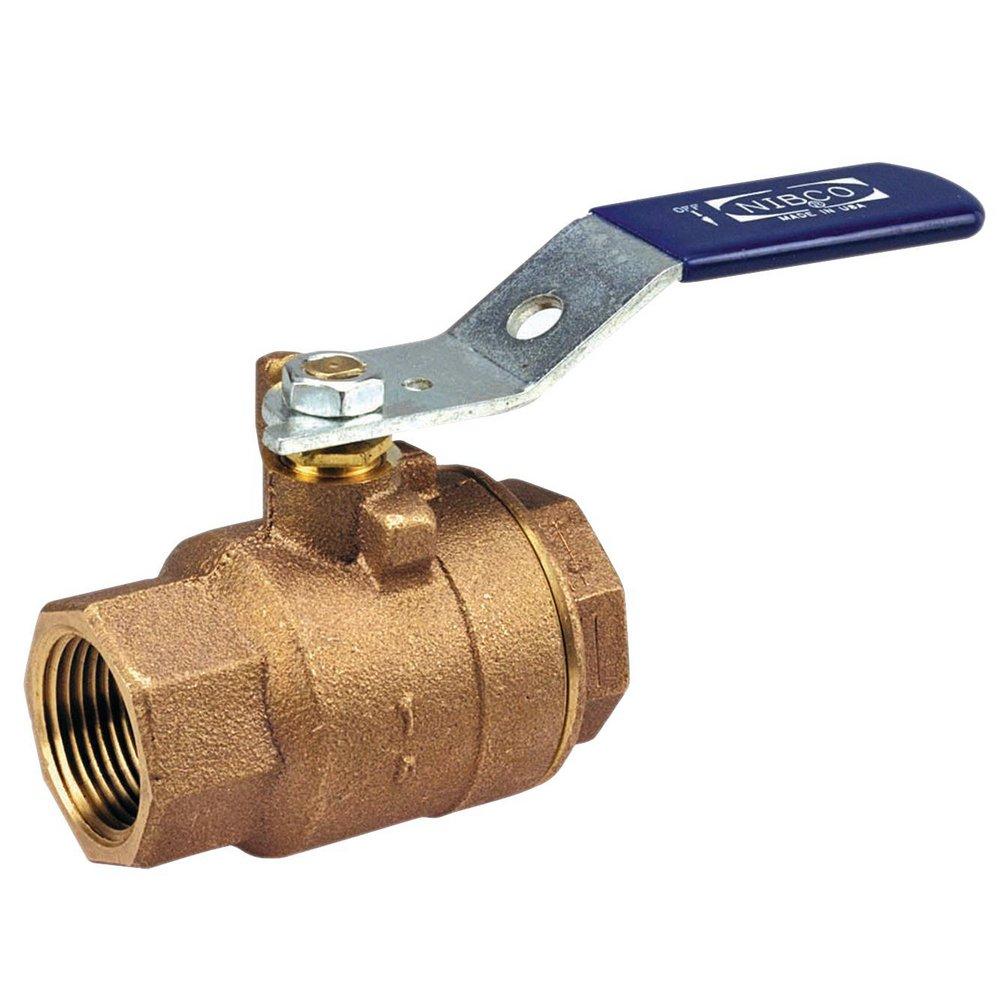

1-1/2 in. DZR Cast Bronze Full Port NPT 600# Ball Valve

NIBCO

T-585-70 1-1/2 in. DZR Cast Bronze Full Port NPT 600# Ball Valve

  • Fast #
  • Part #NT58570J
  • Item #111402
  • Manufacturer Part #NL9510C
3.8 out of 5 Customer Rating
Brand image
NIBCO DZR Cast Bronze Full Port NPT 600# Ball Valve
NIBCO DZR Cast Bronze Full Port NPT 600# Ball Valve
NIBCO

T-585-70 1-1/2 in. DZR Cast Bronze Full Port NPT 600# Ball Valve

  • Fast #
  • Part #NT58570J
  • Item #111402
  • Manufacturer Part #NL9510C
3.8 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 5 Case: 10 Pallet: 180
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Full port
  • Chrome plated brass ball, silicon bronze stem
  • Blowout-proof stem
  • Standard lever handle, optional NIB-SEAL®
  • Threaded end connections
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-110
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ASTM:
ASTM B 16 Alloy C36000, ASTM B 371 Alloy C69300, ASTM B 99 Alloy C65100, ASTMB 124 Alloy C37700, ASTM B 584 Alloy C84400
Clean Bagged:
No
Collection:
T-585-70
End Connection 1:
FPT
End Connection 2:
FPT
End Connections:
FPT
FM Approved:
No
Handle Material:
Zinc Plated Steel
Height:
3 in
IAPMO Listed:
No
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
4-18/25 in
MSS:
MSS SP-110
Material:
Cast Bronze, Plastic
Material Type:
RPTFE
Maximum Temperature:
400
Minimum Temperature:
-20
NSF Certified:
No
Origin:
Domestic
Pressure - High:
150, 600
Pressure - Maximum:
150 psi, 600 psi
Pressure Class:
600#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Potable Water, Air, Hot and Cold Water Systems, Steam
Temperature Range:
Up to 400 Deg F
UL Listed:
No
UPC:
039923677655
Valve Body Material:
Bronze
Valve Body Style:
2 piece
Valve Disc Material:
Brass
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE
Valve Size:
1-1/2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
4.39 lb
Width:
4-1/2 in
cUPC Certified:
No
