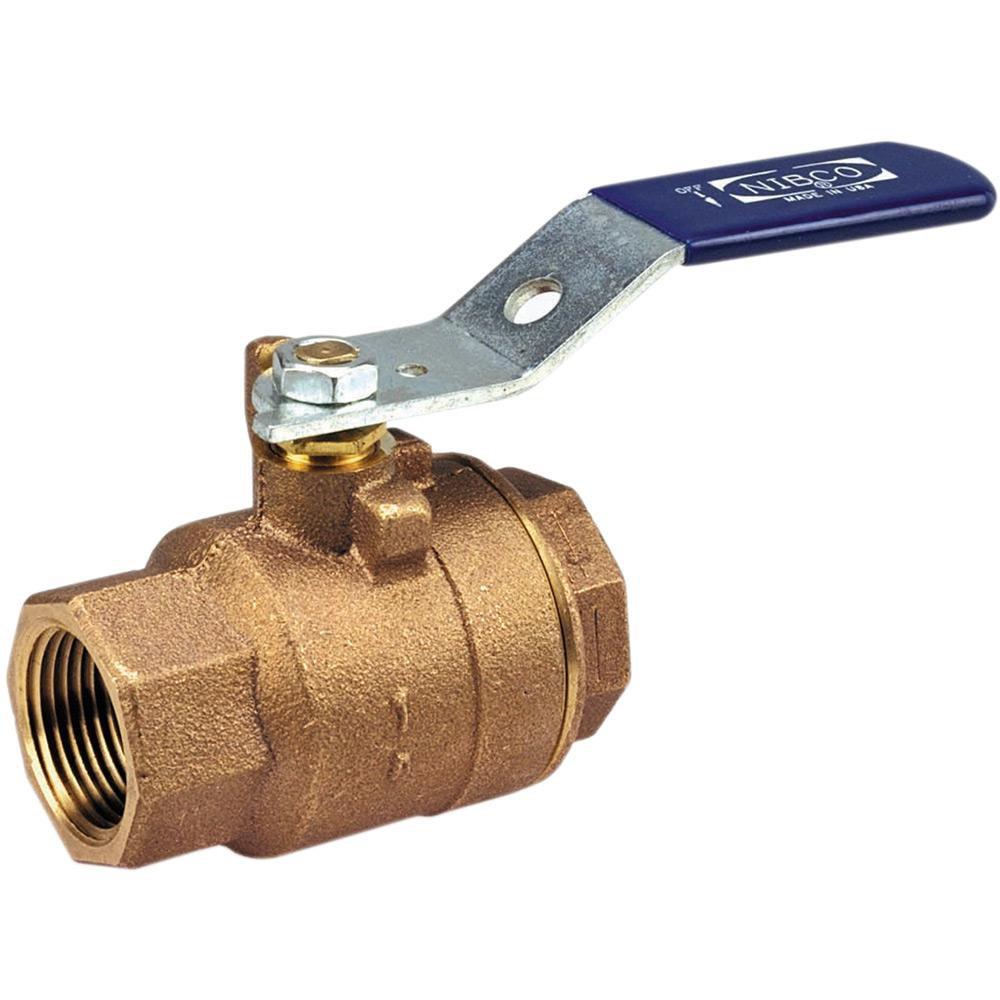

2 in. DZR Cast Bronze Full Port NPT 600# Ball Valve

NIBCO

T-585-70 2 in. DZR Cast Bronze Full Port NPT 600# Ball Valve

Brand image
NIBCO

T-585-70 2 in. DZR Cast Bronze Full Port NPT 600# Ball Valve

  • Part #NT58570NSK
  • Item #410523
  • Manufacturer Part #NL95T3D
3.4 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 2 CA: 6 PT: 144
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • Insulated NIB-SEAL® handle
  • Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Chrome-plated brass ball and silicon bronze stem
  • Standard lever handle
  • Conventional port
  • Max temperature rating 400° F
  • Conforms to MSS SP-110
  • Blowout-proof stem

Specifications

ASTM:
ASTM B-124 C37700, ASTM B-16 C36000, ASTM B-371 C69300, ASTM B-584 C84400, ASTM B-99 C65100
Collection:
T-585-70
End Connection 1:
FPT
End Connection 2:
FPT
End Connections:
FPT
FM Approved:
No
Handle Material:
Zinc Plated Steel
IAPMO Listed -:
No
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
5-4/25 in
MSS:
MSS SP-110
Material:
Cast Bronze, Plastic
Material Type:
RPTFE
Maximum Temperature:
400
NSF Certified:
No
Origin:
Domestic
Pressure - High:
150, 600
Pressure Class:
600#
Recommended Valve Application:
Potable Water, Air, Hot and Cold Water Systems, Steam
UL Listed:
No
Valve Body Material:
Cast Bronze
Valve Body Style:
2 piece
Valve Operator:
NIB-SEAL® Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE
Valve Size:
2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
6.68 lb
