1/2 in. Bronze Full Port Threaded 600# Ball Valve

NIBCO

T-585-70-UL 1/2 in. Bronze Full Port Threaded 600# Ball Valve

  • Fast #
  • Part #NT58570SVD
  • Item #302697
  • Manufacturer Part #NL95076
3.6 out of 5 Customer Rating
Brand image

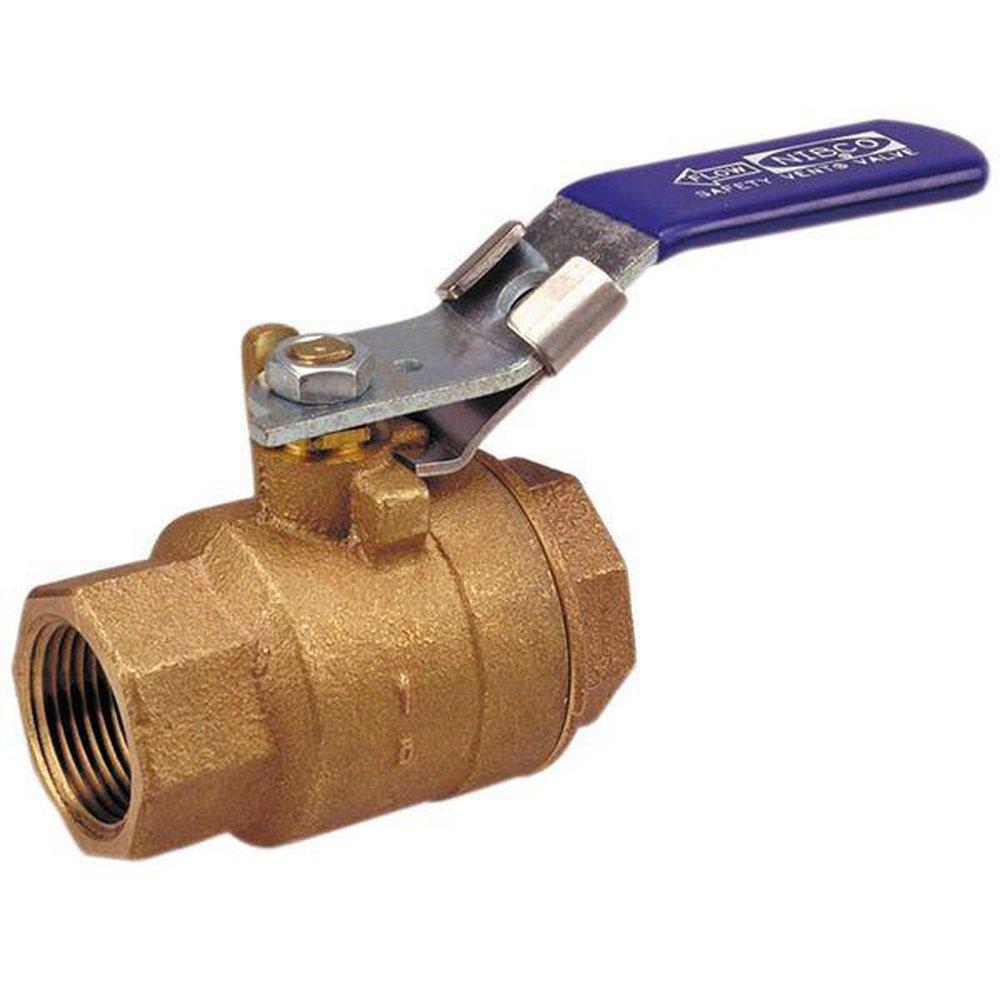

NIBCO Bronze Full Port Threaded 600# Ball Valve
NIBCO Bronze Full Port Threaded 600# Ball Valve
NIBCO

T-585-70-UL 1/2 in. Bronze Full Port Threaded 600# Ball Valve

  • Fast #
  • Part #NT58570SVD
  • Item #302697
  • Manufacturer Part #NL95076
3.6 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 10 Case: 60 Pallet: 2340
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Max temperature rating 180°F
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Threaded end connections
  • Locking lever handle
  • Full port
  • Reinforced PTFE
  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Dezincification resistant
  • Blowout-proof stem
  • Safety-Vent for compressed air lines
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ANSI:
ANSI B16.33
ASME:
ASME B16.33
ASTM:
ASTM B-124 C37700, ASTM B-16 C36000, ASTM B-371 C69430, ASTM B-584 C84400, ASTM B-99 C65100
CSA Certified:
CSA B16.33
Clean Bagged:
No
Collection:
T-585-70-UL
End Connection 1:
NPT
End Connection 2:
NPT
End Connections:
NPT x NPT
FM Approved:
No
Handle Material:
Zinc Plated Steel
IAPMO Listed:
No
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
2-2/5 in
MSS:
MSS SP-110
Material:
Bronze, Brass
Material Type:
DZR
NSF Certified:
No
Pressure - Maximum:
250 psi
Pressure Class:
600#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Recommended Valve Application:
Gas, Oil, Water
UL Listed:
Yes
UPC:
039923680044
Valve Body Style:
2 piece
Valve Bonnet Type:
Threaded
Valve Disc Material:
Chrome Plated Brass
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Reinforced PTFE
Valve Size:
1/2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
0.64 lb
