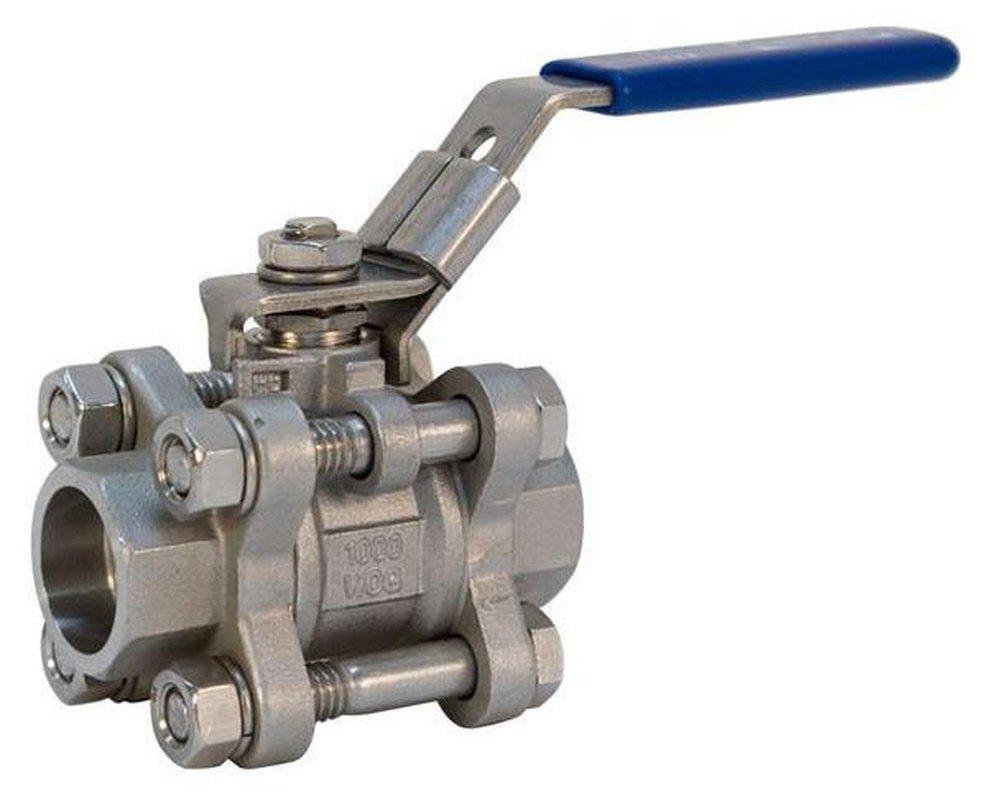

1 in. CF8M Stainless Steel Full Port NPT 1000# Ball Valve
NIBCO
T-595-S6-R-66-LL 1 in. CF8M Stainless Steel Full Port NPT 1000# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 8 Pallet: 608Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
T-595-S6-R-66-LL
1 in. CF8M Stainless Steel Full Port NPT 1000# Ball Valve
NL99K4A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- The reinforced PTFE seat ring and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping
- Vented ball
- Three-Piece Body
- Full Port
- Blowout-Proof Stem
- 316 SS Trim
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
3-31/50 in
Pressure Class
1000#
Valve Size
1 in
Weight
2.93 lb
Characteristics & Features
Collection
T-595-S6-R-66-LL
Handle Material
Stainless Steel
Material
Stainless Steel, Plastic
Material Type
304, 316, CF8M, RPTFE
Valve Body Material
Stainless Steel
Valve Body Style
3 piece
Valve Disc Material
Stainless Steel
Valve Operator
Locking Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RPTFE
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
450
Warranty & Product Information
ASTM
ASTM A-240, ASTM A-276, ASTM A-351
MSS
MSS SP-110
Recommended Valve Application
Cold Working Pressure
UPC
039923794093
