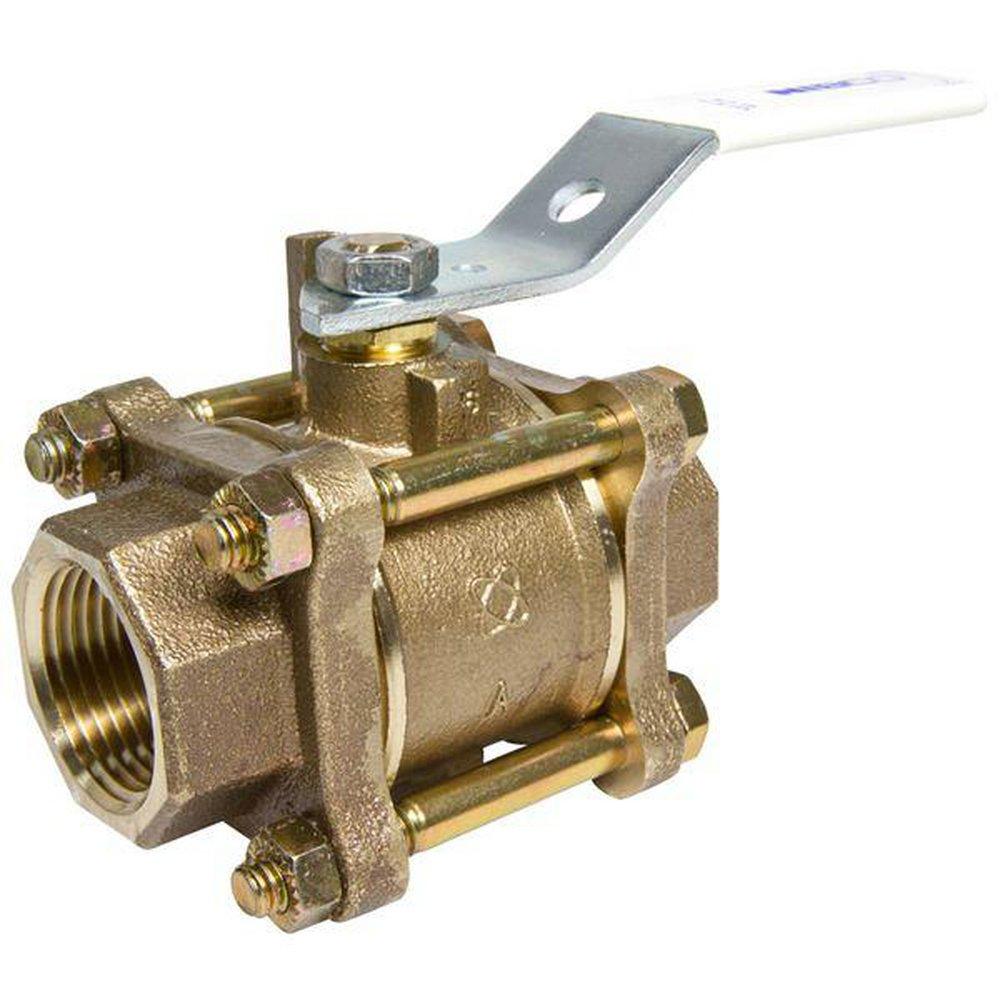

1-1/2 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
NIBCO
T-595-Y-66-LF 1-1/2 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 2 Case: 10 Pallet: 300Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
T-595-Y-66-LF
1-1/2 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
NL99HXC
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Blowout-proof stem
- Repairable design
- Stainless steel trim
- Dezincification resistant
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Full port
- PTFE seat
- Threaded end connections
- Vented Ball
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
4-3/5 in
Pressure Class
600#
Valve Size
1-1/2 in
Weight
5.68 lb
Width
3 in
Characteristics & Features
Collection
T-595-Y-66-LF
Handle Material
Steel
Material
Bronze, Brass, Stainless Steel, Plastic
Material Type
PTFE
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Bronze
Valve Body Style
3 piece
Valve Disc Material
PTFE
Valve Operator
Quarter Turn Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
300
Warranty & Product Information
ANSI
ANSI 61-8, ANSI 372
ASTM
ASTM A-276, ASTM A-449, ASTM B-16, ASTM B-584
FM Approved
No
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110
NSF
NSF 372, NSF 61-8
NSF Certified
Yes
Recommended Valve Application
Cold Working Pressure
UL Listed
No
UPC
039923320216
