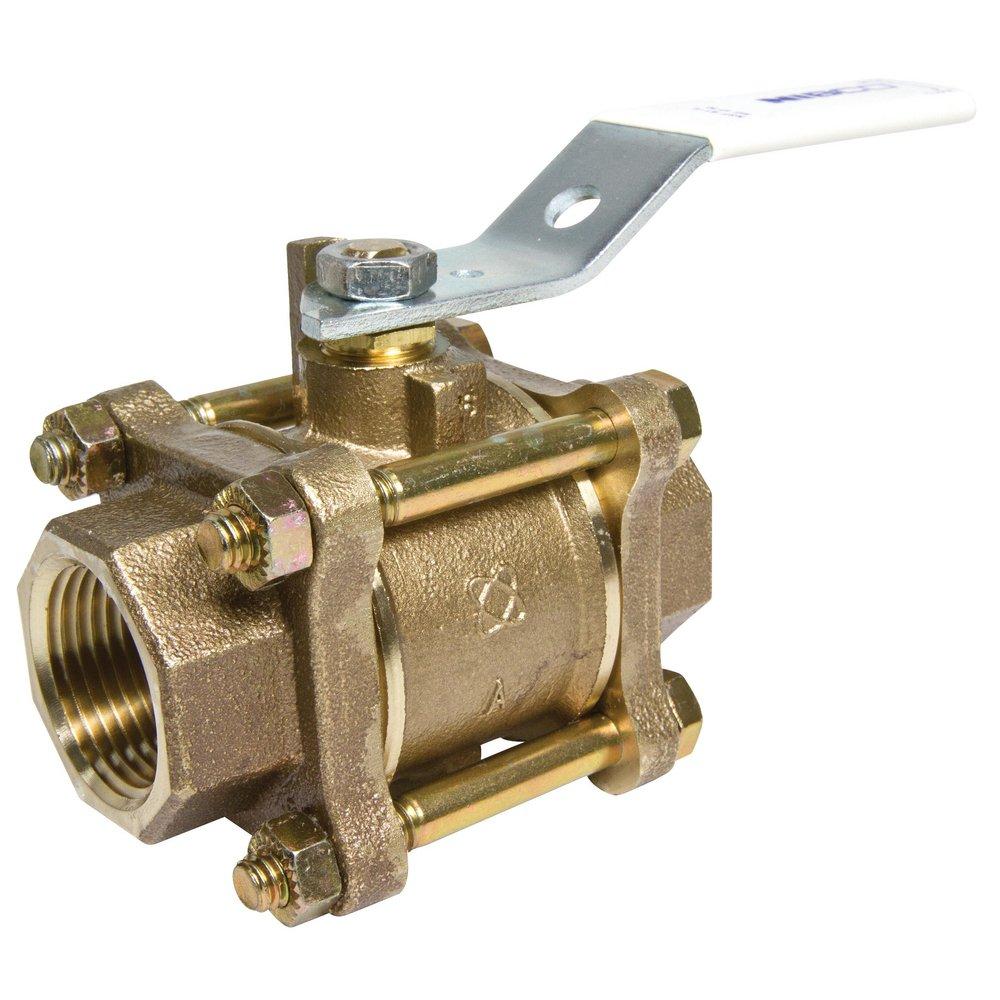

1-1/4 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
NIBCO
T-595-Y-66-LF 1-1/4 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 2 Case: 10 Pallet: 300
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
T-595-Y-66-LF
1-1/4 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
NL99HXB
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Full port
- Repairable design
- Stainless steel trim
- Blowout-proof stem
- PTFE seats
- White handle for easy lead-free* identification
- NIBCO® double-oval lead-free body marking
- Threaded end connections
- Dezincification resistant
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 61-8, ANSI 372
- ASTM:
- ASTM A-276, ASTM A-449, ASTM B-16, ASTM B-584
- Clean Bagged:
- No
- Collection:
- T-595-Y-66-LF
- End Connection 1:
- FIPT
- End Connection 2:
- FPT
- End Connections:
- FIPT x FPT
- FM Approved:
- No
- Handle Material:
- Plated Steel
- Height:
- 2-18/25 in
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 8-19/25 in
- MSS:
- MSS SP-110
- Material:
- Stainless Steel
- Material Type:
- B584, C87850
- Maximum Temperature:
- 300
- Minimum Temperature:
- -20
- NSF:
- NSF 372, NSF 61-8
- NSF Certified:
- Yes
- Origin:
- Domestic
- Pressure - High:
- 600
- Pressure - Maximum:
- 600 psi
- Pressure Class:
- 600#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Recommended Valve Application:
- Potable Water
- Temperature Range:
- -20 to 300 Deg F
- UL Listed:
- No
- UPC:
- 039923320193
- Valve Body Material:
- Bronze
- Valve Body Style:
- Ball
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1-1/4 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 3.8 lb
- Width:
- 4-9/20 in
- cUPC Certified:
- Yes
