2 in. Cast Iron Full Port FNPT Gate Valve

NIBCO

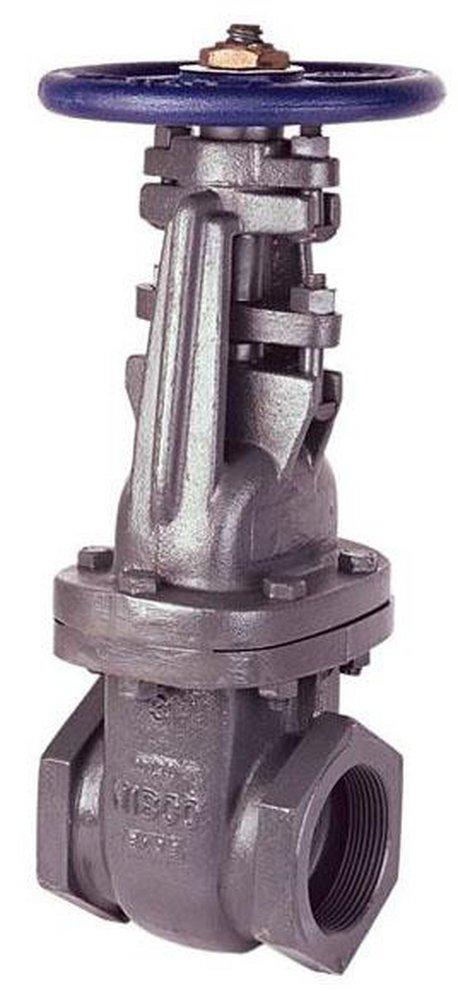

T-617-O 2 in. Cast Iron Full Port FNPT Gate Valve

Brand image
NIBCO

T-617-O 2 in. Cast Iron Full Port FNPT Gate Valve

  • Part #NT617OK
  • Item #1305490
  • Manufacturer Part #NLA300D
4.9 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1 CA: 1 PT: 20
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Product Details

  • Outside screw and yoke
  • Solid wedge
  • Threaded cast iron gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services
  • Class 125 threaded end connections
  • Bolted bonnet
  • Iron body bronze mounted (IBBM)
  • 200 psi/13.8 bar non-shock cold working pressure
  • 125 psi/8.6 bar saturated steam to 353°F/178°C
  • Conforms to MSS SP-70
  • Use in U.S. drinking water applications is prohibited after January 3, 2014

Specifications

ASTM:
ASTM A-126-B, ASTM A-307, ASTM A-395, ASTM A-536, ASTM A-563, ASTM B-140, ASTM B-16, ASTM B-584, ASTM B-783
Application:
Cold Working Pressure
Collection:
T-617-O
End Connection 1:
FNPT
End Connection 2:
FNPT
End Connections:
FNPT
FM Approved:
No
Handle Material:
Cast Iron
Length:
5-17/27 in
MSS:
MSS SP-70
Material:
Cast Iron, Cast Copper Alloy
NSF Certified:
No
Pressure - High:
125, 200
Pressure Class:
125#
Recommended Valve Application:
Commercial, Gas, HVAC, Industrial, Steam, Water
Temperature Range:
Up to 450 Deg F (Up to 232 Deg C)
UL Listed:
No
Valve Body Material:
Cast Iron
Valve Body Style:
Threaded
Valve Bonnet Type:
Bolted
Valve Disc Material:
Cast Iron
Valve Operator:
Hand Wheel
Valve Port Opening:
Full Port
Valve Seat Material:
Cast Copper Alloy
Valve Size:
2 in
Valve Stem:
Outside
Valve Type:
Gate Valve
Weight:
30 lb
