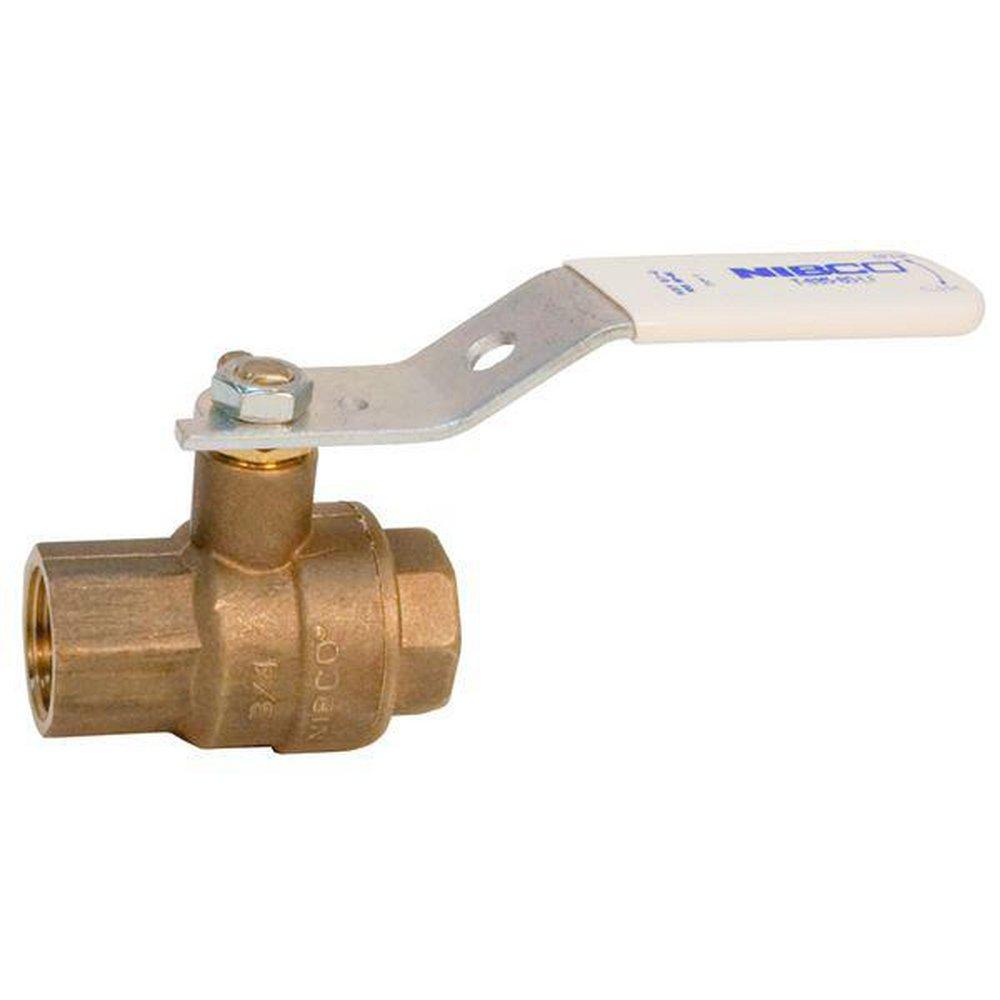

3/8 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
You last purchased this on
NIBCO
T-685-80-LF 3/8 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
Purchase history
NIBCO
T-685-80-LF
3/8 in. DZR Silicon Bronze Full Port NPT 600# Ball Valve
NL99015
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Silicon Performance Bronze™ ball and stem
- Dezincification resistant
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Full port
- Silicon Performance Bronze ball and stem
- Blowout-proof stem
- Threaded end connections
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 61-8, ANSI 372
- ASTM:
- ASTM B-16, ASTM B-371, ASTM B-283
- Collection:
- T-685-80-LF
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- FM Approved:
- No
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- MSS:
- MSS SP-110
- Material:
- Silicon Bronze
- Material Type:
- DZR
- NSF:
- NSF 372, NSF 61-8
- NSF Certified:
- Yes
- Pressure - Maximum:
- 600 psi
- Pressure Class:
- 600#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Listed:
- No
- Valve Body Style:
- 2 piece
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Reinforced PTFE
- Valve Size:
- 3/8 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
