1/2 in. Forged Brass Full Port Threaded 600# Ball Valve
You last purchased this on
NIBCO

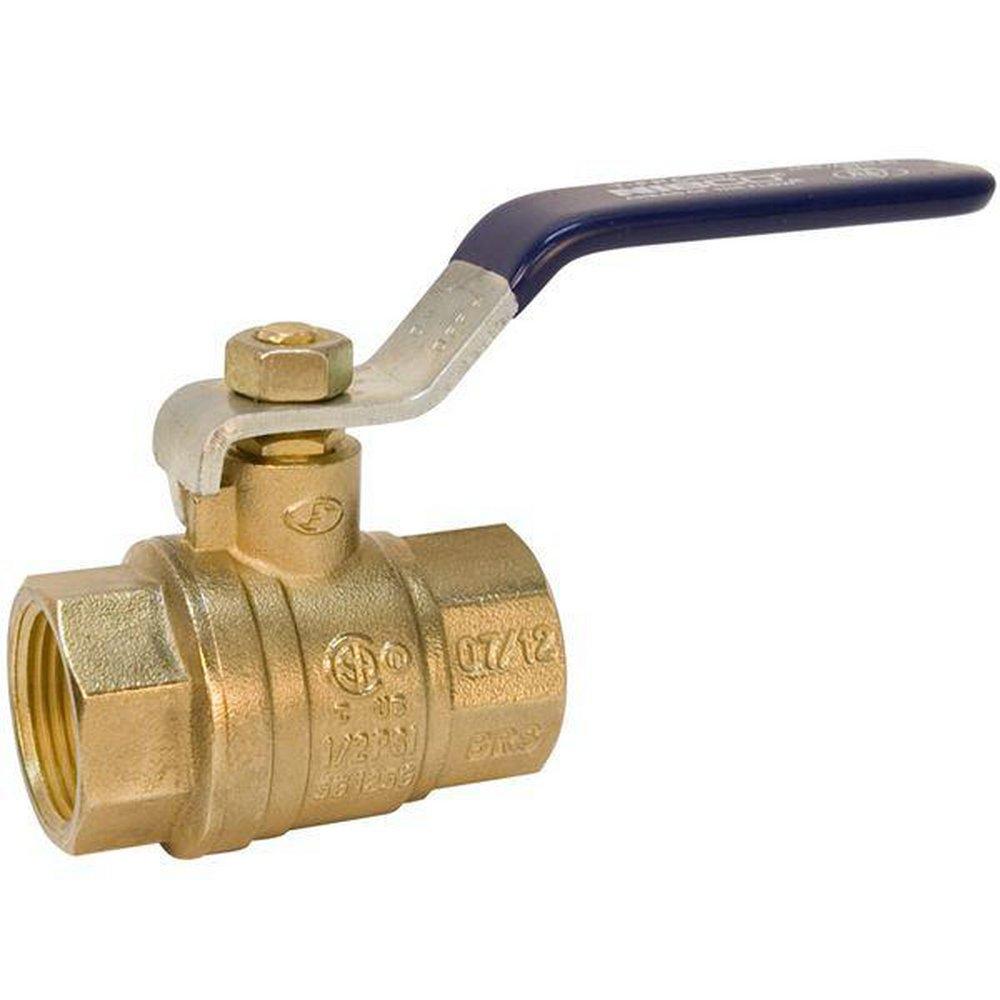

T-FP-600A 1/2 in. Forged Brass Full Port Threaded 600# Ball Valve
Purchase history
NIBCO
T-FP-600A
1/2 in. Forged Brass Full Port Threaded 600# Ball Valve
NL998H6
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (1/4" to 2")
- Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2" to 4")
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Standard lever handle
- Threaded end connections
- Chrome-plated brass ball and stem
- Full port
Specifications
- ASME:
- ASME B16.44, ASME B16.33
- CSA Certified:
- CSA B16.44
- Clean Bagged:
- No
- Collection:
- T-FP-600A
- Color Finish Name:
- Polished Chrome
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- FM Approved:
- Yes
- Handle Material:
- Steel
- Handle Type:
- Lever
- Height:
- 1-6/25 in
- IAPMO Listed -:
- No
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- Length:
- 4-57/100 in
- MSS:
- MSS SP-110
- Material:
- Forged Brass
- Maximum Temperature:
- 194
- Minimum Temperature:
- -4
- NSF:
- NSF 61
- NSF Certified:
- No
- Origin:
- Global
- Pressure - Maximum:
- 600 psi
- Pressure Class:
- 600#
- Recommended Valve Application:
- Gas, Potable Water
- UL Listed:
- Yes
- Valve Body Material:
- Forged Brass
- Valve Body Style:
- 2 piece
- Valve Bonnet Type:
- Threaded
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 0.44 lb
- Width:
- 2-14/25 in
