3/8 in. Plated Malleable Iron Junior Universal Beam Clamp
nVent CADDY
3/8 in. Plated Malleable Iron Junior Universal Beam Clamp
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 100 Pallet: 8000
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
nVent CADDY
3/8 in. Plated Malleable Iron Junior Universal Beam Clamp
3000037EG
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details

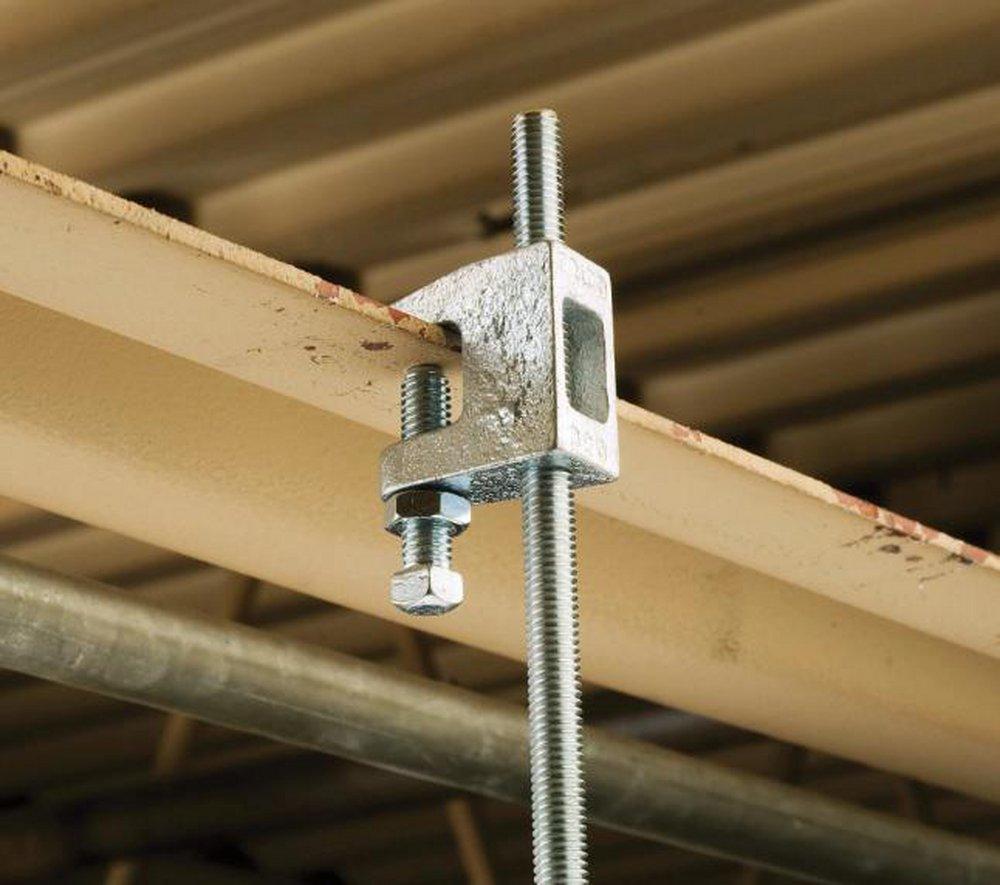

- Structural attachment to top or bottom of metal beams, purlins, channel or angle iron
- Hardened steel setscrew with cup point for robust grip on tapered sections
- Compatible with retainer straps 300C and 035RS
- Meets Federal Specification WW-H-171 (type 23)
- Maximum bottom mount load is 250 lbs
Specifications
- ANSI:
- ANSI SP-58 Type 19, ANSI SP-58 Type 23
- Application:
- Electrical, Fire Sprinkler, HVAC, Low Voltage, Plumbing, Refrigeration
- Coating:
- Electrogalvanized
- End Connection 1:
- Threaded
- End Connections:
- Threaded
- FM Approved:
- Yes
- Height:
- 1-9/16 in
- MSS:
- MSS SP-58 Type 19, MSS SP-58 Type 23
- Material:
- Cast Iron
- Product Type:
- Beam Clamp
- Rod Size (in):
- 3/8 in
- Thickness:
- 3/4 in
- UL Listed:
- Yes
- UPC:
- 782856339762
- Work Load Limit:
- 500 lb
