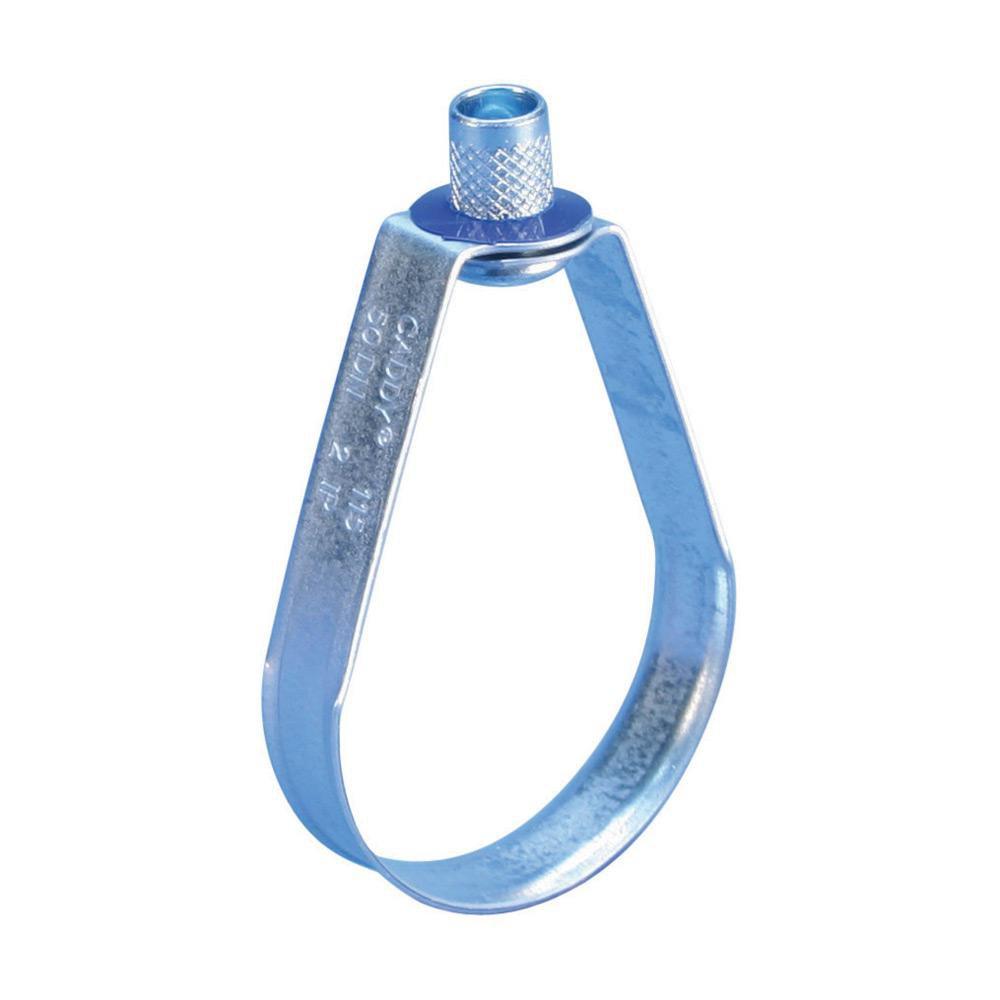

3 in. Galvanized Steel Loop Hanger
nVent CADDY
Model 115 3 in. Galvanized Steel Loop Hanger
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 50 Pallet: 2250
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
nVent CADDY
Model 115
3 in. Galvanized Steel Loop Hanger
1150300EG
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Flared edges help prevent any sharp surfaces from coming into contact with the pipe (1/2" to 4" sizes)
- Retained insert nut helps ensure the loop hanger and insert nut stay together
- Recommended for the suspension of stationary non-insulated pipe lines
- Manufactured to use the minimum rod size permitted by NFPA® for fire sprinkler piping
- Conforms with federal specification WW-H-171 (type 10), Manufacturers Standardization Society (MSS) SP-58 (type 10)
- Latch pins are 5/8" dia. high-strength steel and cannot be pulled out
- Pins are enclosed inside center door post and protected from jamming
- Interior shelves welded on all sides for extra support
- Deep, recessed lifting handles are protected from damage and prevent injuries
- 3-3/8" tall bolsters for easy forklifting
Specifications
- Application:
- CPVC Pipe, Fire Protection, Non-Insulated Pipes, Stationary Piping
- Coating:
- Pre-Galvanized
- Collection:
- Model 115
- Diameter - Outside:
- 3-1/2 in
- FM Approved:
- Yes
- Fits Pipe Size:
- 3 in
- Height:
- 6-9/16 in
- MSS:
- MSS SP-58 Type 10
- Material:
- Steel
- Product Type:
- Loop Hanger
- Rod Size (in):
- 3/8 in
- UL Listed:
- Yes
- UPC:
- 782856339601
- Work Load Limit:
- 525 lb
