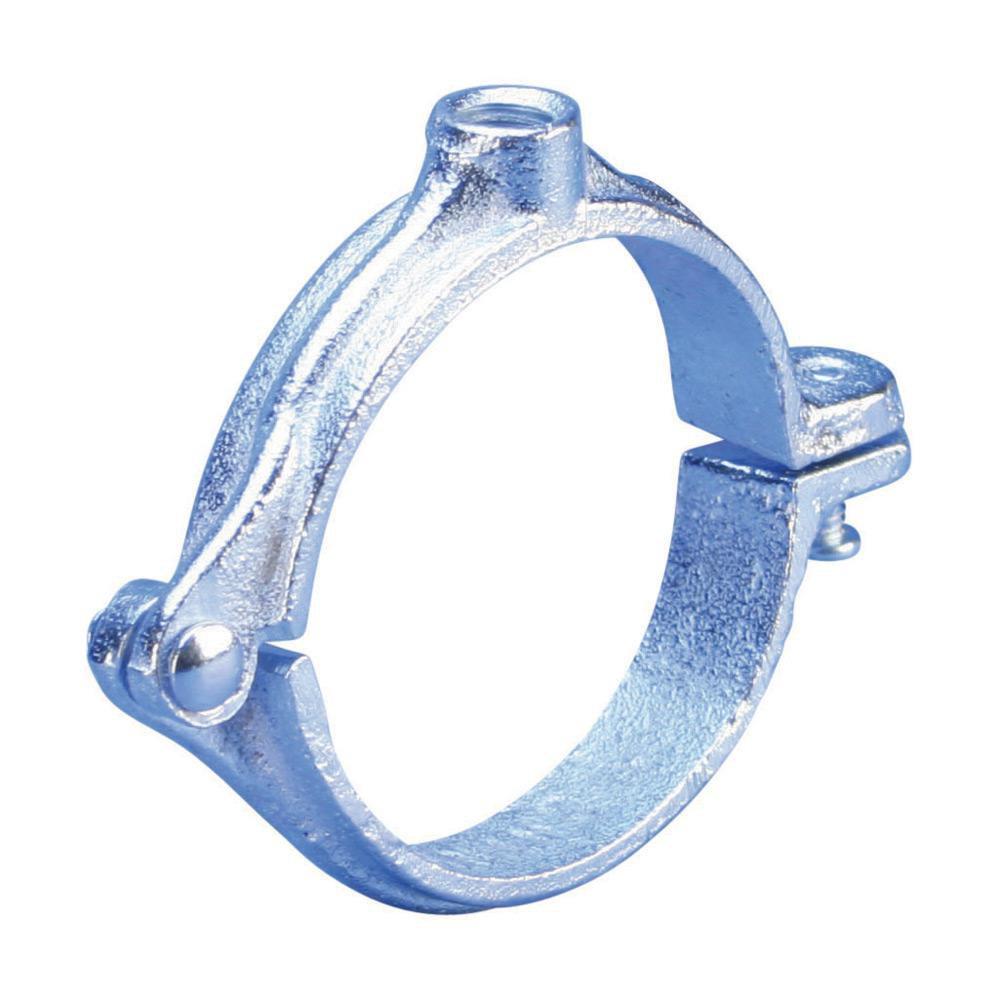

1/2 in. Electrogalvanized Cast Iron Split Ring Hanger
nVent CADDY
Model 455 1/2 in. Electrogalvanized Cast Iron Split Ring Hanger
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 100 Pallet: 9000
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
nVent CADDY
Model 455
1/2 in. Electrogalvanized Cast Iron Split Ring Hanger
4550050EG
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Recommended for the suspension of stationary non-insulated pipe lines
- Allows for piping runs close to ceiling or walls
- Conforms with federal specification WW-H-171 (type 25), Manufacturers Standardization Society (MSS) SP-58 (type 12)
- Bolt and rivet are carbon steel
- PEX
- 2-1/2" max. deck thickness
- High-arc pull-down swivels 360°
- Integrated PEX 36 flexible supplies
- Magnetic spray head docking
- Includes soap dispenser
Specifications
- Application:
- Non-Insulated Pipes, Stationary Piping
- Coating:
- Electrogalvanized
- Collection:
- Model 455
- Diameter - Outside:
- 21/25 in
- FM Approved:
- No
- Fits Pipe Size:
- 1/2 in
- Height:
- 1-1/2 in
- MSS:
- MSS SP-58 Type 12
- Material:
- Cast Iron
- Product Type:
- Split Ring Hanger
- Rod Size (in):
- 3/8 in
- UL Listed:
- No
- UPC:
- 782856368656
- Work Load Limit:
- 180 lb
