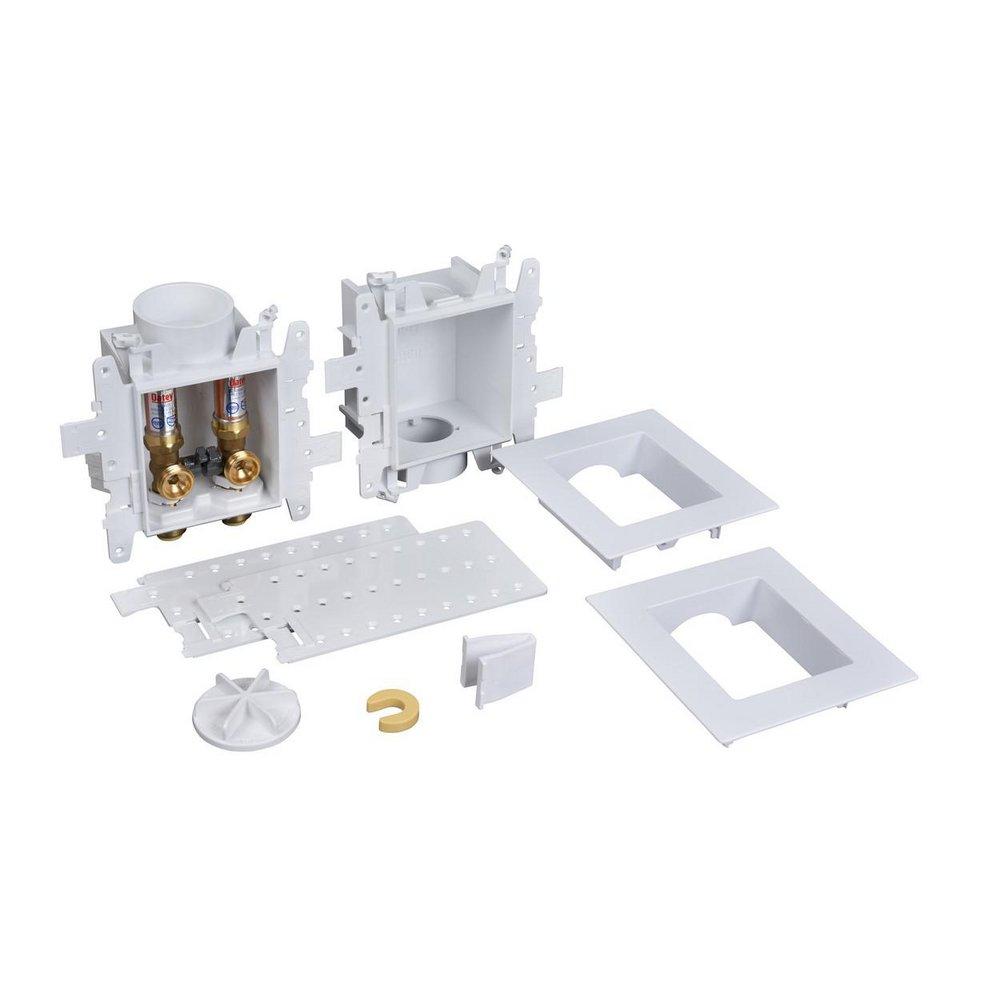

2+Valve Standard Drain Push Connect Washing Machine Supply Box with Hammer Arrestor

You last purchased this on

Oatey®

Moda™ 2+Valve Standard Drain Push Connect Washing Machine Supply Box with Hammer Arrestor

  • Fast #
  • Part #O37616
  • Item #7287784
  • Manufacturer Part #37616
5 out of 5 Customer Rating
Brand image
You last purchased this on

Oatey®

Moda™ 2+Valve Standard Drain Push Connect Washing Machine Supply Box with Hammer Arrestor

  • Fast #
  • Part #O37616
  • Item #7287784
  • Manufacturer Part #37616
5 out of 5 Customer Rating

X Points

Package Quantity Info:

EA: 1 IP: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
  • Pick Up: Not available
  • Shipping: Not available

Product Details

  • Convenient single box platform installation
  • Unique?interlocking?wing?flanges?accommodate?on-stud,?straddle-stud?and?3-box?installations
  • Dual? box?design?with separate valve and drain boxes provides?ideal?options?for?stacked?washer/dryers?and? space-limited?laundry?rooms
  • Includes plumber-preferred, quarter turn test plug with gasket to prevent knock outs from falling into drain
  • Stands?up?to?the?roughest?job?site?abuse
  • Two?piece?design?makes?valve? replacement?easy,?without? damaging?drywall
  • No tools required
  • Advanced snap-lock design allows easy assembly, disassembly, or repositioning
  • Valves rated to 150 psi for air and 250 psi for water
  • Universal faceplate is compatible with all box types
  • Requires Certification

Documents


Specifications

ASME:
ASME A112.18.1
ASSE Standards:
ASSE 1010
ASTM:
ASTM D-2855
Application:
Residential, Commercial
Box Material:
Plastic
CARB OTC LEED Compliant:
No
CSA Certified:
CSA B125.1
Collection:
Moda™
Color Finish Name:
White
Depth:
4-63/100 in
End Connection 1:
Push-to-Connect
End Connection 2:
Push-to-Connect
End Connections:
Push-to-Connect
FM Approved:
No
Fire Rated:
No
Fitting Size 1:
1/4 in
Fitting Size 2:
1/4 in
Fitting Sizes:
1/4 in
Height:
6-9/20 in
IAPMO Listed:
Yes
Material Type:
PVC
NSF Certified:
Yes
Proposition 65:
WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
Supply Box Connection Type:
Push Connect
UL Listed:
No
Water Hammer Arrestor Included:
Yes
Width:
14-13/100 in
