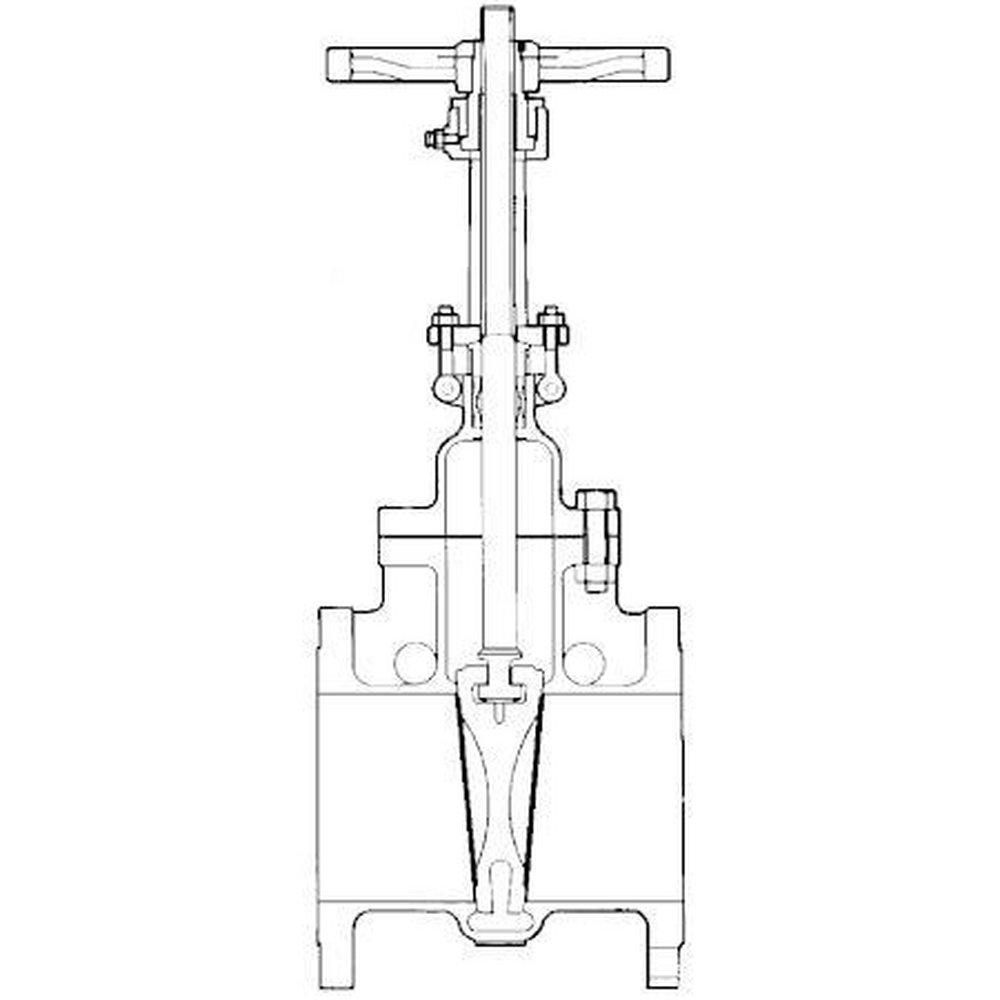

4 in. Stainless Steel Flanged Gate Valve
OIC Valve
Figure S151 4 in. Stainless Steel Flanged Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
OIC Valve
Figure S151
4 in. Stainless Steel Flanged Gate Valve
4 S151
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Cast stainless steel body and bonnet
- OS&Y
- Solid 1/2"-3"; 4"-up flexible wedge
- Gland repackable under pressure
- Integral seat rings
Specifications
- ANSI:
- ANSI B16.34, ANSI B16.5, ANSI B16.10
- API:
- API 600, API 603
- ASTM:
- ASTM A351 CF8M, ASTM A197
- Collection:
- Figure S151
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Handle Material:
- Malleable Iron
- Height:
- 21-13/16 in
- Length:
- 9 in
- Material:
- Stainless Steel, Malleable Iron
- Material Type:
- 316
- Pressure - Maximum:
- 425 psi
- Pressure Class:
- 150#
- Valve Body Material:
- Stainless Steel
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Handwheel
- Valve Size:
- 4 in
- Valve Stem:
- Outside
- Valve Type:
- Gate Valve
- Weight:
- 78 lb
