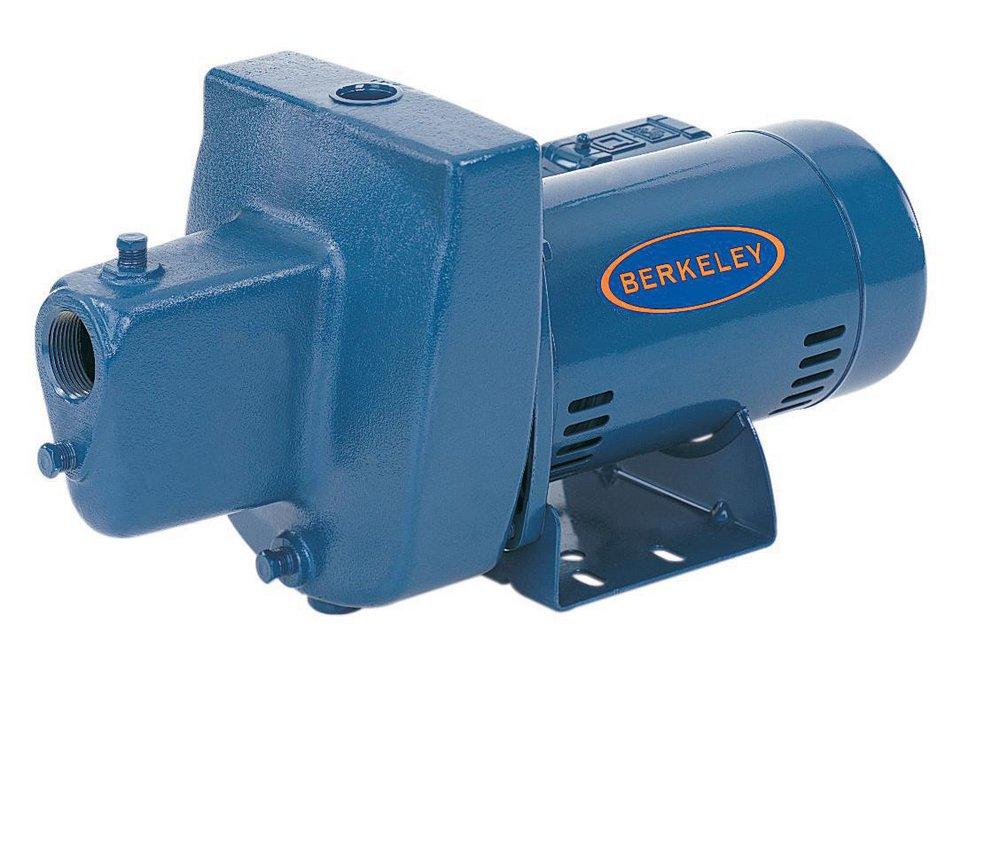

1/2 hp Shallow Well Pump

Pentair

1/2 hp Shallow Well Pump

Brand image
Pentair

1/2 hp Shallow Well Pump

  • Part #P5SN
  • Item #5153531
  • Manufacturer Part #5SN
5 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1
Log in or Create an Account to see product availability.
  • Pick Up: Not available
  • Shipping: Not available

Product Details

  • Self-priming after the priming chamber has been filled with water
  • Built-in jet - High strength Lexan nozzle and venturi for maximum resistance to corrosion and abrasion
  • The ProJet SN series pumps provide excellent performance with good pressure for wells to 25' deep
  • Balance rotor - die cast under high pressures for uniform performance and greater efficiently, dynamically balanced
  • Mechanical shaft seal - precision lapped and highly polished carbon-ceramic, stainless steel construction
  • Superior motor windings have insulation materials to protect against excessive moisture and contaminants
  • Precision molded diffuser - pump primes faster, handles more are, with multi-port, precision-molded, reinforced polypropylene diffuser
  • Precision-molded Noryl impeller for perfect balance, ultra-smooth, for highest performance and efficiently
  • 30/50 pressure switch delivers a steady 40 PSI to you system when used with a pressure tank
  • Heavy-duty ball bearings - shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation
  • Lead Law Compliant

Documents


Specifications

AMP:
12.2, 6.1
Application:
Residential
Brand Model Compatibility:
Sta-Rite/Pro-Source
CSA Certified:
Yes
Color Finish Category:
Blues
Color Finish Name:
Blue
Discharge:
1 in
End Connection 1:
FNPT
End Connections:
FNPT
Flow Rate:
7.9 gpm
Height:
12-313/1000 in
Horsepower:
1/2 hp
Impeller:
Noryl®
Inlet Service Size:
1-1/4 in
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
22-313/1000 in
Material:
Cast Iron
Maximum Temperature:
140
NSF Certified:
No
OutletMeter Size:
1 in
Phase:
Single Phase
Power Source:
Electric
Pressure - Maximum:
50 psi
Pump Application -:
Domestic Water
Pump Body Material:
Cast Iron
Pump Motor Type:
ODP
Pump Phase:
1
Pump Stage:
1
UL Listed:
Yes
Volts:
115/230V
Weight:
42 lb
Width:
12-219/500 in
