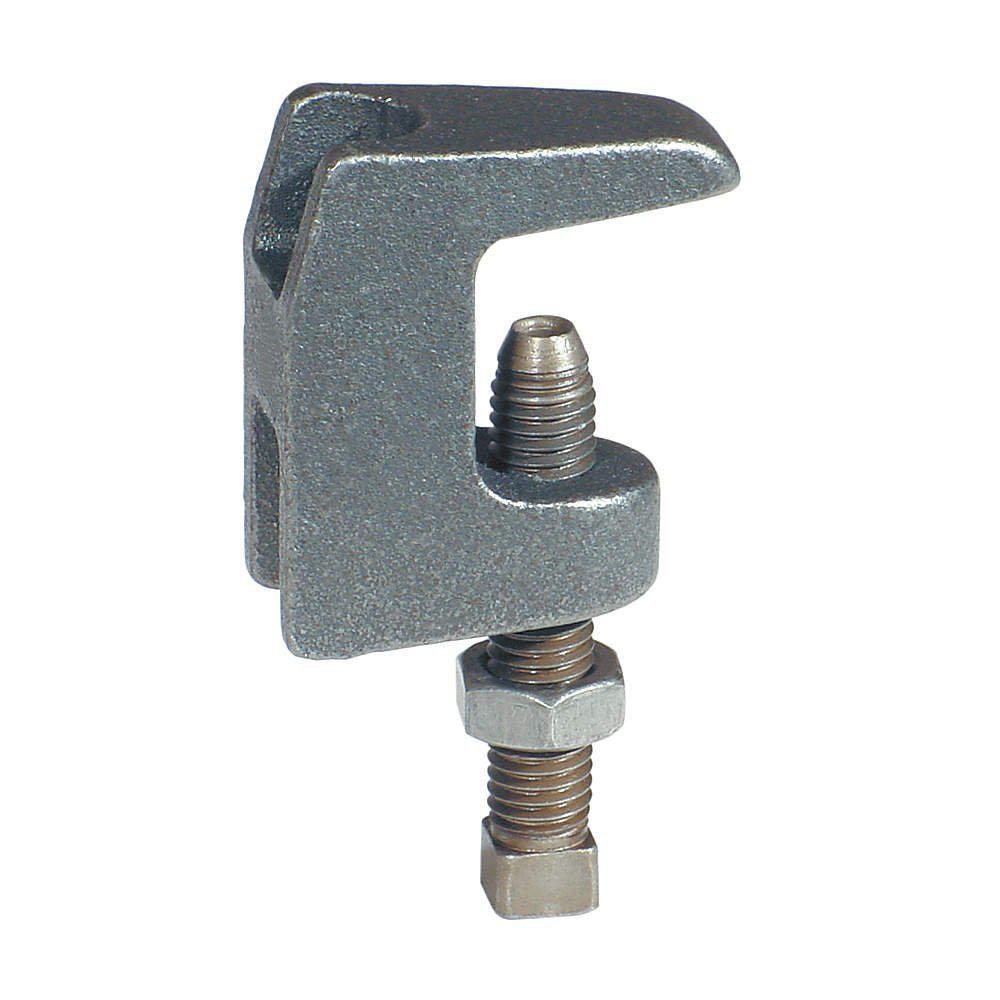

3/8 in. Plain Malleable Iron Beam Clamp
PHD Manufacturing
3/8 in. Plain Malleable Iron Beam Clamp
Package Quantity Info:
Each: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
PHD Manufacturing
3/8 in. Plain Malleable Iron Beam Clamp
360
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Designed for attaching hanger rod to the top flange of a beam or bar joist
- Where the flange thickness does not exceed 1-1/4 in (31.75mm)
- The open U design permits rod adjustment
Documents
Specifications
- ANSI:
- ANSI SP-58 Type 19, ANSI SP-58 Type 23, ANSI SP-69
- Coating:
- Plain
- FM Approved:
- Yes
- Fits Pipe Size:
- 4 in
- Height:
- 1-7/8 in
- Length:
- 1-5/8 in
- MSS:
- MSS SP-58 Type 19, MSS SP-58 Type 23, MSS SP-69
- Material:
- Malleable Iron
- Product Type:
- Beam Clamp
- Rod Size (in):
- 3/8 in
- UL Listed:
- Yes
- Work Load Limit:
- 400 lb
