3 in. Carbon Steel Butt Weld Gate Valve

Powell Valves

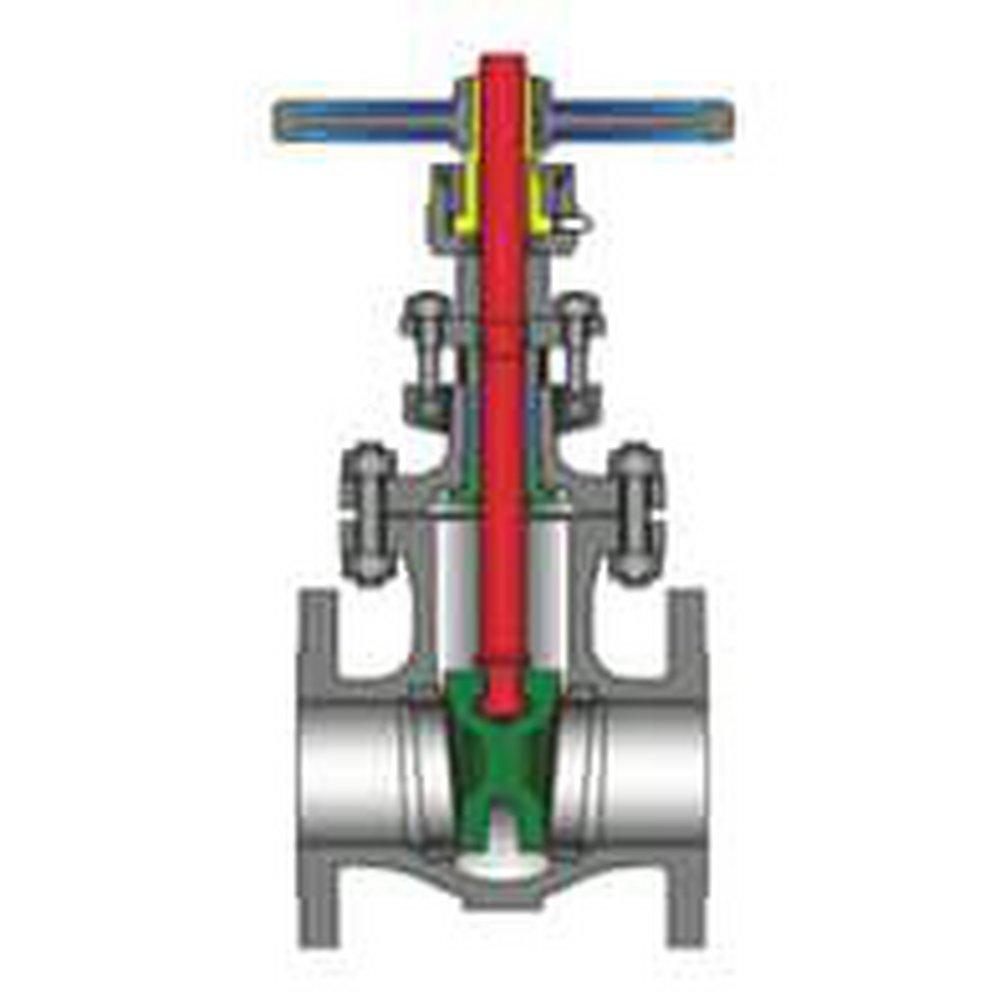

Figure 1503 3 in. Carbon Steel Butt Weld Gate Valve

  • Fast #
  • Part #P1503IC8GXXXM
  • Item #1742205
  • Manufacturer Part #3.0 1503IC8GXXX
3.8 out of 5 Customer Rating
Brand image
Powell Valves Carbon Steel Butt Weld Gate Valve
Powell Valves Carbon Steel Butt Weld Gate Valve
Powell Valves

Figure 1503 3 in. Carbon Steel Butt Weld Gate Valve

  • Fast #
  • Part #P1503IC8GXXXM
  • Item #1742205
  • Manufacturer Part #3.0 1503IC8GXXX
3.8 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 10
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Flexible wedge for improved seating and ease of operation, especially in high temperature service
  • Standard trim is API trim 8 for carbon steel valves, API trim 5 for chrome alloy valves, and API trim 10 for CF8M (T316) valves for optimal performance under normal conditions
  • Seat faces lapped for smooth finish and superior sealing
  • Stems are non-rotating with surface finish to maximize packing seal for low fugitive emissions
  • Bonnet and yoke arms designed for ease of gear, motor or cylinder actuator adaptation
  • Each valve is shell, seat and backseat pressure tested per industry standard API 598
  • Gland is two piece gland/gland flange design for optimal alignment and uniform packing compression
  • Requires Certification

Documents

SPECIFICATION
Dimensions & Measurements
End Connection 1
Butt Weld
End Connection 2
Butt Weld
End Connections
Butt Weld
Handle Length (in)
9 in
Length
11-3/25 in
Pressure Class
150#
Valve Size
3 in
Weight
62 lb
Characteristics & Features
Collection
Figure 1503
Handle Material
Malleable Iron
Material
Carbon Steel
Material Type
Stellite 6
Proposition 65
WARNING: Cancer and Reproductive harm - www.P65Warnings.ca.gov
Valve Body Material
Cast Carbon Steel
Valve Body Style
Buttweld
Valve Bonnet Type
Bolted
Valve Operator
Handwheel
Valve Port Opening
Standard Port
Valve Seat Material
Carbon Steel, Stellite 6
Valve Stem
Outside
Valve Type
Gate Valve
Warranty & Product Information
API
API 600, API 598
ASME
ASME B16.10, ASME B16.34, ASME B16.25
ASTM
ASTM A193 Grade B7, ASTM A194 Grade 2H, ASTM A216 Grade WCB, ASTM A439
FM Approved
No
NSF Certified
No
UL Listed
No
