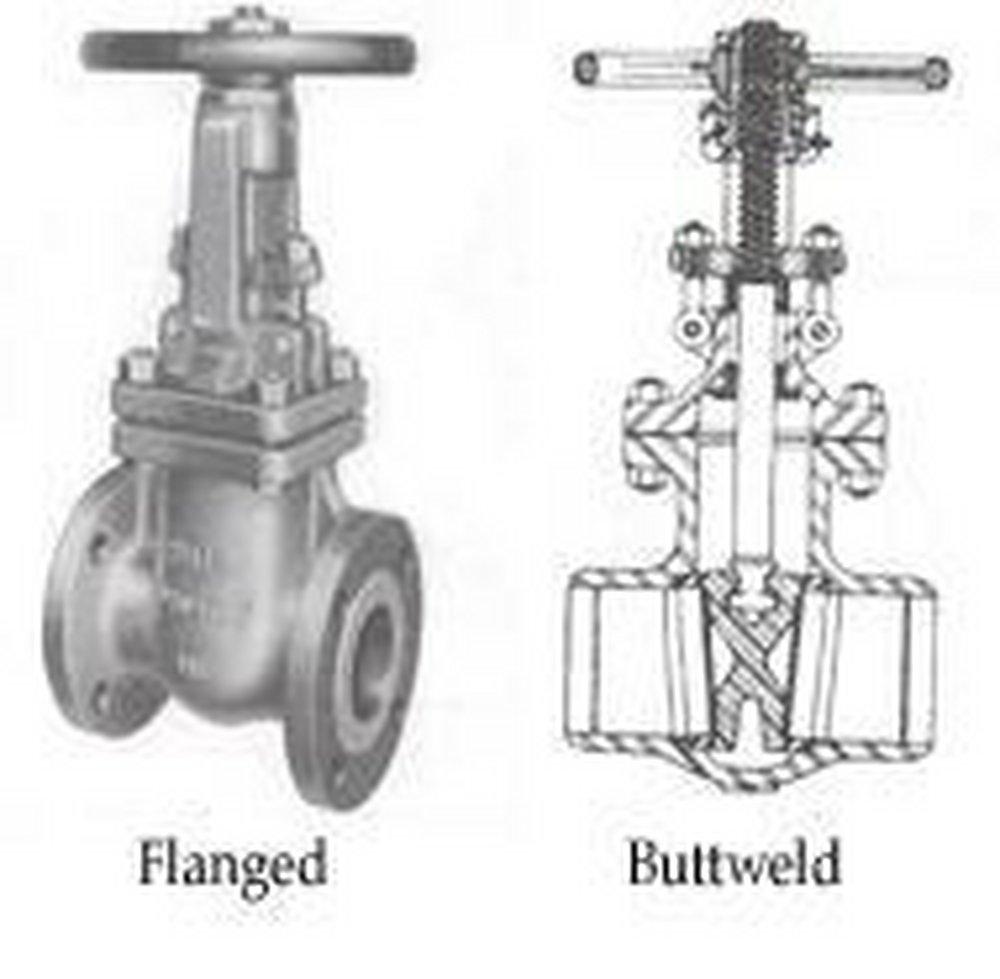

3 in. Nickel Iron Standard Port Flanged Gate Valve
Powell Valves
Figure 1893 3 in. Nickel Iron Standard Port Flanged Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 14
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Powell Valves
Figure 1893
3 in. Nickel Iron Standard Port Flanged Gate Valve
3.00 1893
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Bolted flanged yoke-bonnet
- Outside screw
- Solid wedge
- Seat faces lapped for smooth finish and superior sealing
- Stems are non-rotating with surface finish to optimize packing seal
- Each valve is shell and seat pressure tested per industry standard MSS SP-70
- Gland is two piece gland/gland flange design for optimal alignment and uniform packing compression
- Renewable seat rings
- Body has 5 tapping bosses
Specifications
- ASME:
- ASME B16.1, ASME B16.10
- ASTM:
- ASTM A126-B, ASTM A276 Grade 316, ASTM A351 Grade CF8M
- Collection:
- Figure 1893
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Handle Length (in):
- 8 in
- Handle Material:
- Cast Iron
- Length:
- 8 in
- MSS:
- MSS SP-70
- Material:
- Nickel Iron, Stainless Steel, Cast Iron
- Material Type:
- 316, CF8M
- NSF Certified:
- No
- Pressure Class:
- 125#
- Proposition 65:
- WARNING: Cancer and Reproductive harm - www.P65Warnings.ca.gov
- UL Listed:
- No
- Valve Body Material:
- Nickel Iron
- Valve Body Style:
- Flanged
- Valve Bonnet Type:
- Bolted
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- 316 Stainless Steel
- Valve Size:
- 3 in
- Valve Stem:
- Outside
- Valve Type:
- Gate Valve
- Weight:
- 60 lb
