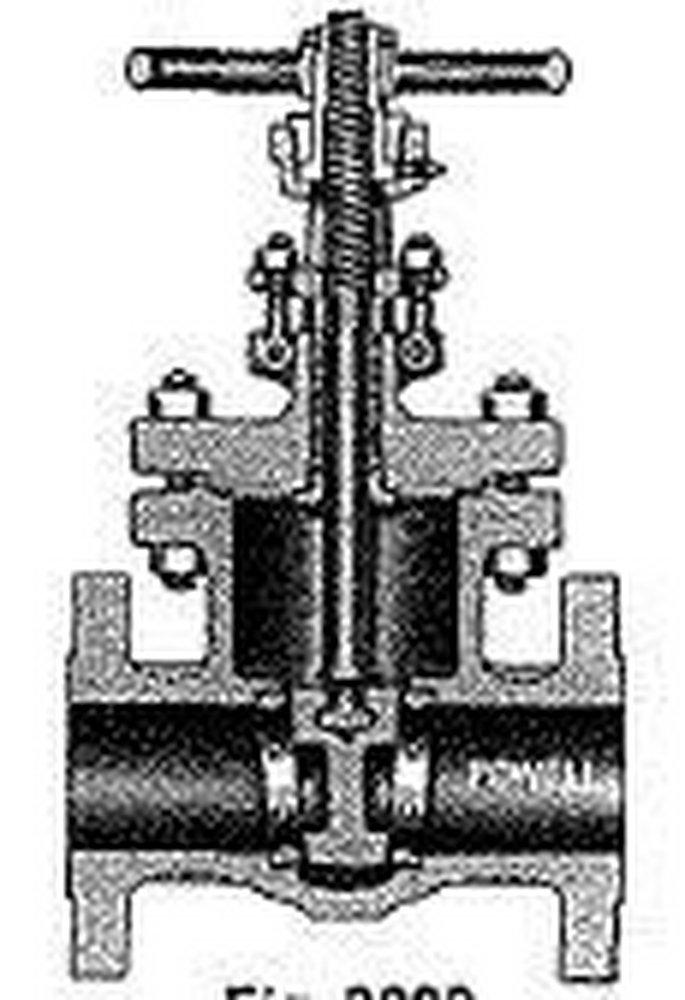

8 in. Cast Carbon Steel Standard Port Butt Weld Gate Valve
Powell Valves
Figure 3003 8 in. Cast Carbon Steel Standard Port Butt Weld Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 4
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Powell Valves
Figure 3003
8 in. Cast Carbon Steel Standard Port Butt Weld Gate Valve
8.0 3003IC8GXXX
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Bolted flanged yoke-bonnet
- Outside screw
- Flexible wedge
Specifications
- API:
- API 598, API 600, API 600 B16.34
- ASME:
- ASME B16.10, ASME B16.34, ASME B16.5
- ASTM:
- ASTM A193 Grade B7, ASTM A194 Grade 2H, ASTM A216 Grade WCB
- Collection:
- Figure 3003
- End Connection 1:
- Butt Weld
- End Connection 2:
- Butt Weld
- End Connections:
- Butt Weld
- FM Approved:
- No
- MSS:
- MSS SP-25, MSS SP-55
- Material:
- Cast Carbon Steel
- NSF Certified:
- No
- Pressure Class:
- 300#
- Proposition 65:
- WARNING: Cancer and Reproductive harm - www.P65Warnings.ca.gov
- UL Listed:
- No
- Valve Body Material:
- Cast Carbon Steel
- Valve Bonnet Type:
- Bolted
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Stellite
- Valve Size:
- 8 in
- Valve Stem:
- Outside
- Valve Type:
- Gate Valve
