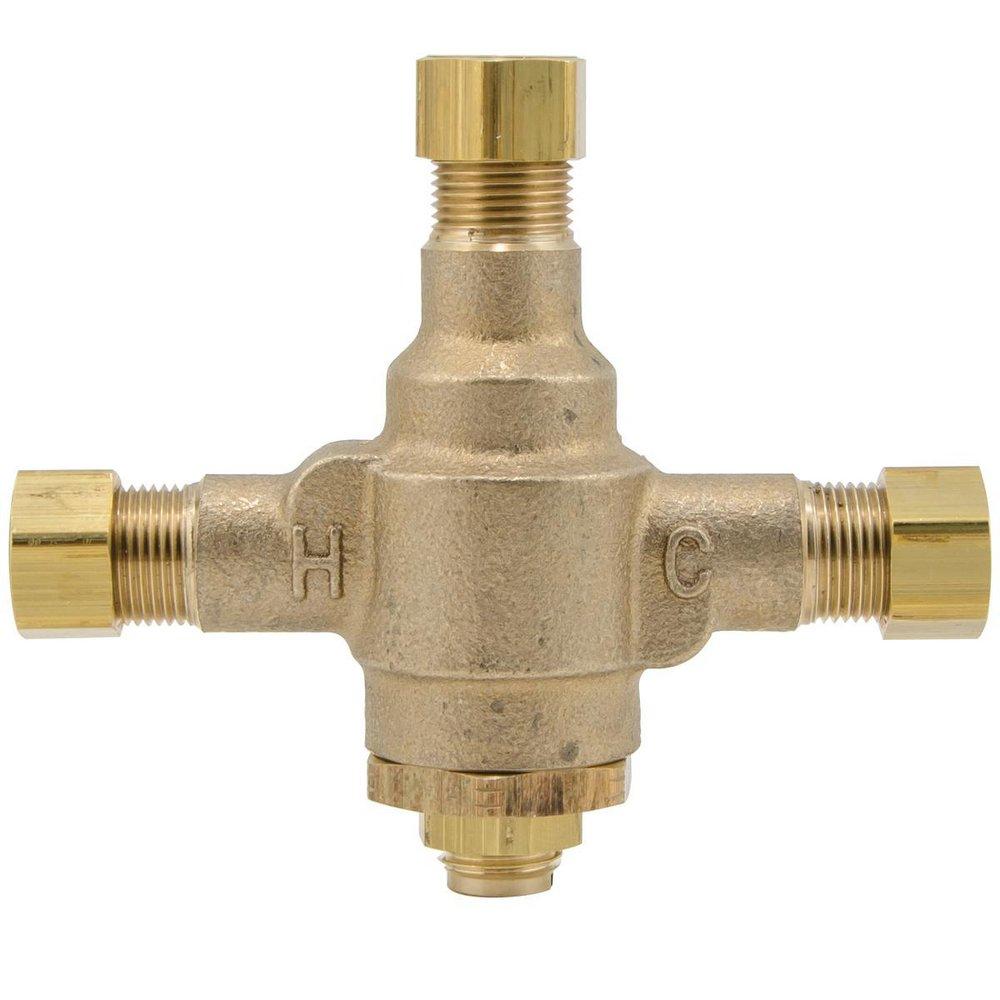

3/8 in. Compression Thermostatic Mixing Valve

Powers

Series LFG480 3/8 in. Compression Thermostatic Mixing Valve

  • Fast #
  • Part #PLFG48010Q
  • Item #10347868
  • Manufacturer Part #6552071
4.2 out of 5 Customer Rating
Brand image
Powers Compression Thermostatic Mixing Valve
Powers Compression Thermostatic Mixing Valve
Powers

Series LFG480 3/8 in. Compression Thermostatic Mixing Valve

  • Fast #
  • Part #PLFG48010Q
  • Item #10347868
  • Manufacturer Part #6552071
4.2 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 24
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • Solid lead free brass construction enhances durability
  • Minimum flow is 0.25 gpm (1 lpm)
  • Meets the reduced Q test statistic criteria of 0.5 ppb for lead per Section 9.5.1.1 of NSF/ANSI/CAN 61
  • Temperature control to ASSE 1070, down to 0.25 gpm
  • Advanced thermal actuator improves performance
  • Adjustable temperature selection with locknut to prevent tampering
  • Integral checks with screens prevents cross flow
  • Factory temperature is set at 105 degrees F (40.6 degrees C)
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372, ANSI 61
ASSE Standards:
ASSE 1070
Collection:
Series LFG480
End Connection 1:
Compression
End Connection 2:
Compression
End Connection 3:
Compression
End Connections:
Compression
Flow Rate:
0.25 gpm
Height:
3-3/16 in
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
2-22/25 in
Material:
Brass
Maximum Temperature:
180
Minimum Temperature:
40
NSF:
NSF 372, NSF 61-9
NSF Certified:
Yes
Origin:
Domestic
Pressure - Maximum:
125 psi
Pressure Class:
125 psi
Proposition 65:
CALIFORNIA PROP 65 WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Water
UPC:
686408020712
Valve Body Material:
Brass
Valve Size:
3/8 in
Valve Type:
Thermostatic Mixing Valve
Weight:
0.8 lb
Width:
3-11/16 in
