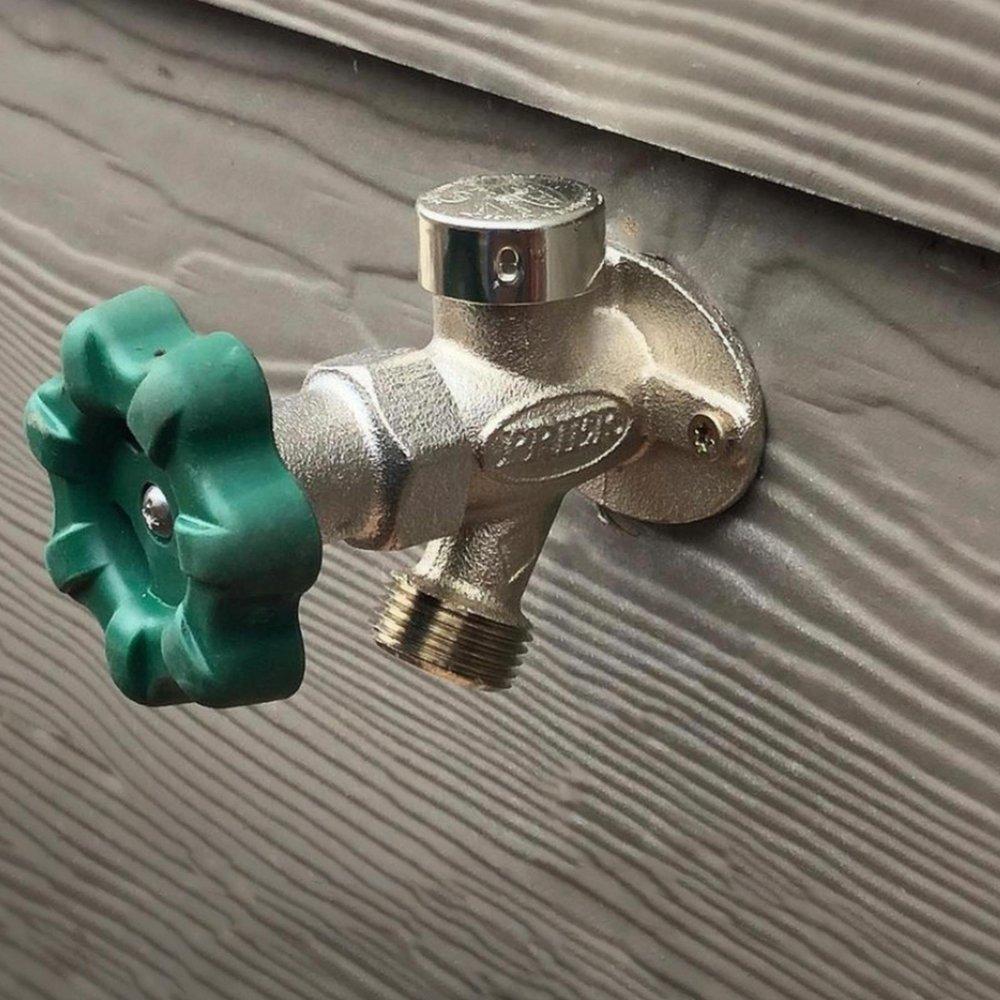

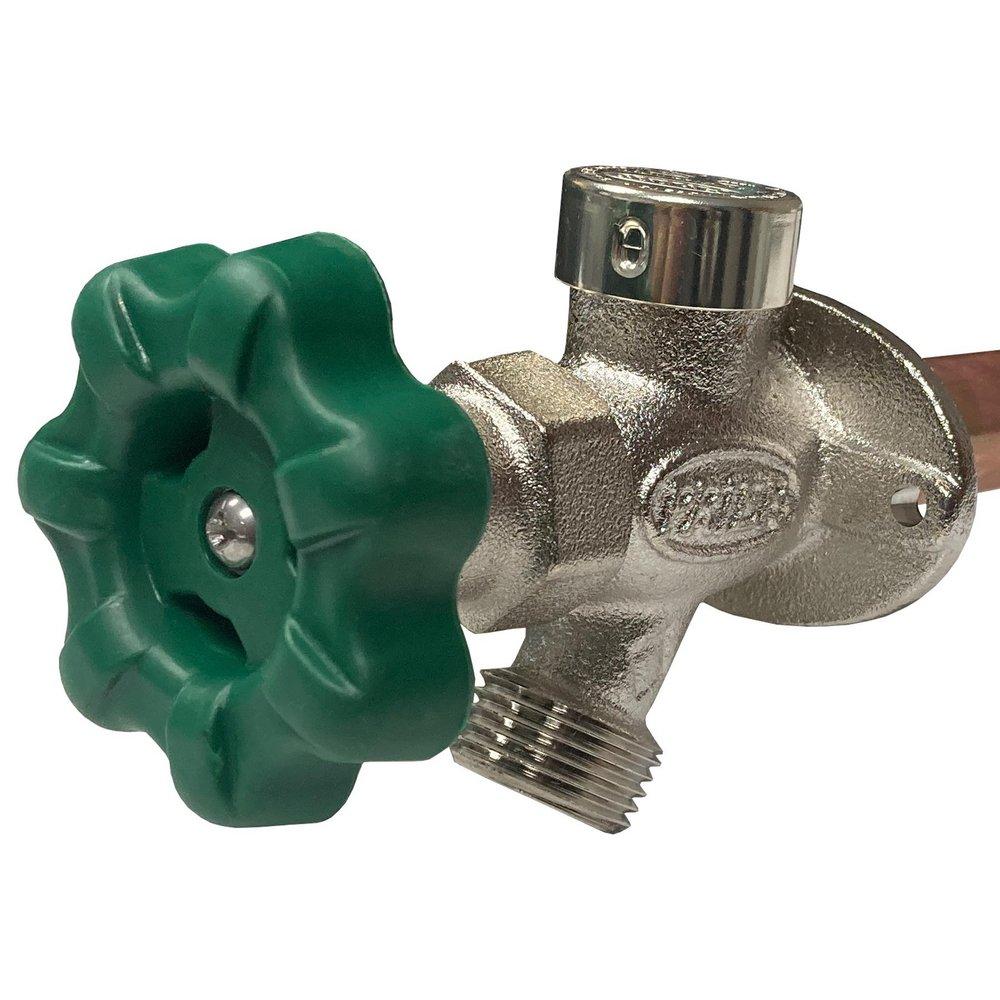

6 in. Residential Quarter-Turn Anti-Siphon Wall Hydrant
PRIER Products
P-164 Series 6 in. Residential Quarter-Turn Anti-Siphon Wall Hydrant
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 24Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
PRIER Products
P-164 Series
6 in. Residential Quarter-Turn Anti-Siphon Wall Hydrant
P-164D06
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Inlet: 1/2 MIP x 1/2 SWT
- Anti-Siphon vacuum breaker and Back Flow check valve meet ASSE 1019-C approval
- Quarter Turn Operation for easy operation
- Large Soft Grip handle that is metal with a rubber coating.
- Large Cast Brass flange that is pitched to drain
- 5 full threads for hose connection
- Enclosed screw holes and self-aligning lug for easy installation
- Stainless steel seat washer screw and handle screw
- Solid Brass body, Valve Stem Cap, Seat and Stem Ends
- Easy Conversion to Loose Key Operation with brass female stem cap
Dimensions & Measurements
End Connection 1
MIPS
End Connection 2
Sweat
End Connections
MIPS x Sweat
Fitting Size 1
1/2 in
Fitting Size 2
1/2 in
Fitting Sizes
1/2 in
Flow Rate
8 gpm
Height
3-1/2 in
Length
6 in
Pressure Class
125 psi
Pressure - Maximum
125 psi
Valve Size
1/2 in
Width
3 in
Characteristics & Features
Collection
P-164 Series
Color Finish Name
Satin Nickel
Handle Material
Metal
Handle Type
Hand Wheel
Installation Type
Wall Mount
Material
Brass
Proposition 65
WARNING: This product can expose you to Lead and Lead Compounds, which are known to the State of California to cause cancer. For more information go to: www.P65Warnings.ca.gov.
Sillcock Type
Anti-siphon, Frost-proof
Valve Body Material
Brass
Valve Bonnet Type
Threaded
Valve Operator
Wheel Handle
Valve Port Opening
Standard Port
Valve Seat Material
EPDM
Valve Stem
Rising
Electrical & Operational Information
Maximum Temperature
140
Warranty & Product Information
ASME
ASME A112.18.1-2018
ASSE Standards
ASSE 1019
BAA Compliant
Yes
CSA Certified
CSA B125.1-18
IAPMO Listed
Yes
ISO
No
NSF
No
NSF Certified
No
Recommended Valve Application
Water
UL Listed
No
UPC
670210308182
