3/4 in. Plastic Reduced Port Solvent Weld 100# Ball Valve
PROFLO®

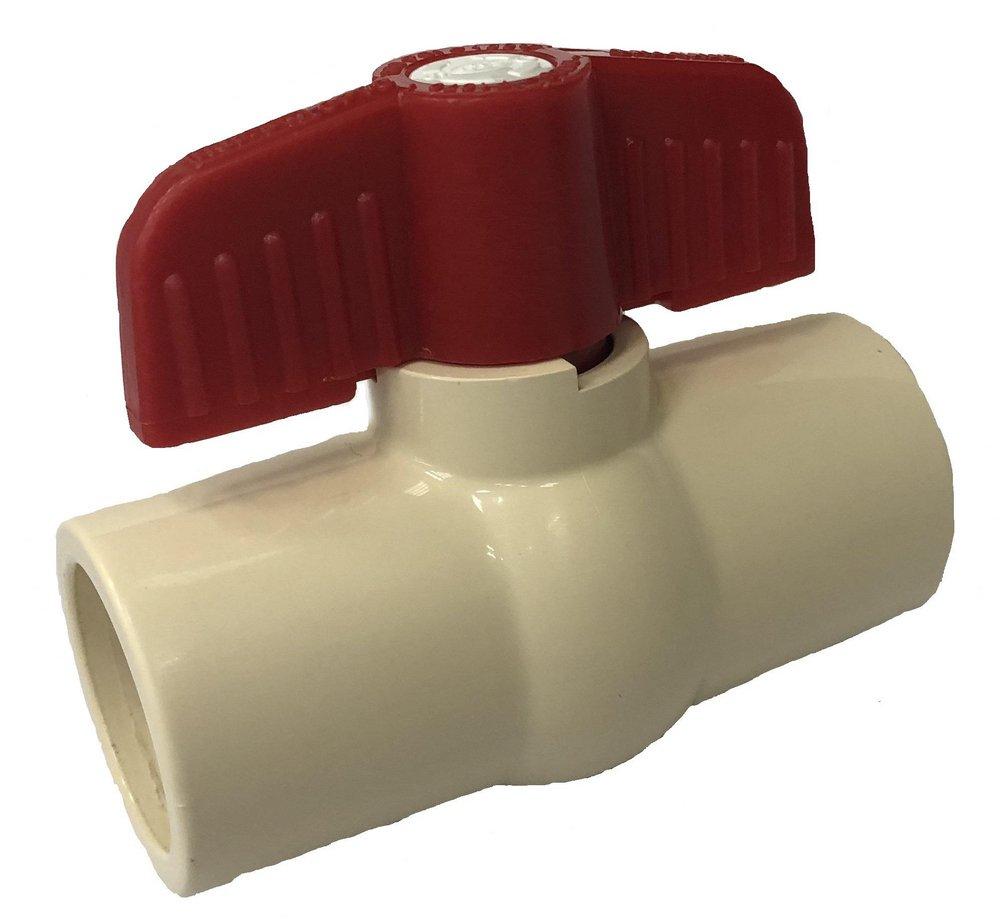

PFCBVN Series 3/4 in. Plastic Reduced Port Solvent Weld 100# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 60
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
PROFLO®
PFCBVN Series
3/4 in. Plastic Reduced Port Solvent Weld 100# Ball Valve
PFCBVNF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- 3/4 in. cpvc ball valve
- End Connections: Solvent Weld
- Valve Length: 3.12 in.
- Maximum Temperature: 194 degrees (F)
- Valve Pressure Class: 100#
- Recommended Application: Hot & cold water
- NSF 61 Annex G
- ANSI 61 Annex G
- Not for use with compressed air or gases
Documents
Specifications
- ANSI:
- ANSI 14, ANSI Standard 61, ANSI 372
- CSA Certified:
- CSA 61
- Clean Bagged:
- No
- Collection:
- PFCBVN Series
- End Connection 1:
- Socket Weld
- End Connection 2:
- Socket Weld
- End Connections:
- Socket Weld x Socket Weld
- FM Approved:
- No
- Handle Material:
- ABS
- Height:
- 2-12/25 in
- IAPMO Listed:
- No
- Length:
- 3-27/100 in
- MA Approved:
- Yes
- Material:
- Plastic
- Material Type:
- CPVC
- Maximum Temperature:
- 180
- NSF:
- NSF 14, NSF Standard 61, NSF 372
- NSF Certified:
- Yes
- Pressure - Maximum:
- 100 psi
- Pressure Class:
- 100#
- Proposition 65:
- WARNING: Cancer WWW.p65warnings.ca.gov
- Recommended Valve Application:
- Cold Water, Hot Water
- UL Listed:
- No
- UPC:
- 781889389874
- Valve Operator:
- T-Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 3/4 in
- Valve Type:
- Ball Valve
